Volkswagen Tiguan Service and Repair Manual: Output Shaft, Adjusting

Output Shaft 1st through 4th Gear, Adjusting

Special tools and workshop equipment required

  • Holding Fixture -VW313-
  • Transmission Support -VW353-
  • Dial Gauge Holder -VW387-
  • Press Piece - Rod -VW407-
  • Press Piece - Multiple Use -VW433-
  • Seal Installer - Stator -VW792-
  • Crankshaft Holding Fixture -VW801-
  • Holding Plate -VW309A-
  • or Holding Plate -VW309A-
  • Slide Hammer - Press Plate -2050-
  • Torque Wrench 1331 5-50Nm -VAG1331-
  • -1-Puller - Kukko Internal - 46-56mm -21/7-
  • -4-Puller - Kukko Counterstay -22/2-

(Selecting the correct adjusting shim for the output shaft)

It is necessary to adjust the output shaft if the following components were replaced:

  • Transmission Housing
  • Clutch Housing
  • Output shaft for 1st to 4th gears or
  • Output shaft tapered roller bearing

Adjustment overview.

Requirements:

  • Remove any Sealant remaining on the sealing surfaces on the clutch and transmission housing.
  • Install the output shaft that is going to be measured.

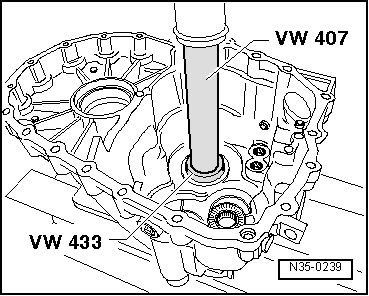

  • Install the tapered roller bearing outer race in the transmission housing with a 1.70 mm shim. Support transmission housing directly beneath bearing mount using Slide Hammer - Press Plate -2050-.
  • Install the output shaft for 1st through 4th gears into the clutch housing.

Volswagen Tiguan. N35-0239

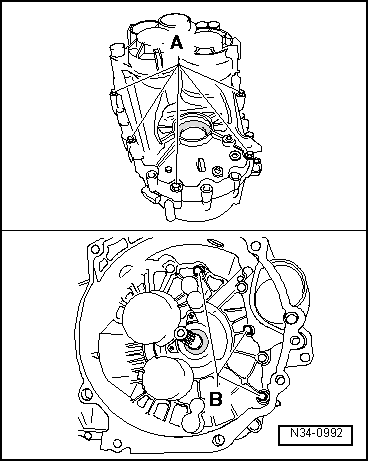

  • Install the transmission housing and tighten the bolts -A- and -B- diagonally.

Volswagen Tiguan. N34-0992

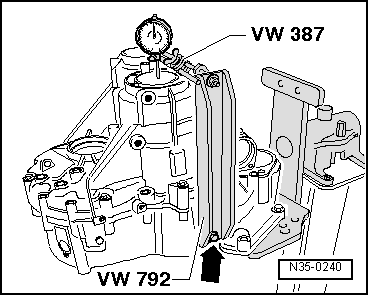

  • Position the measuring tools on the clutch housing and secure them with a bolt -arrow-.
  • Set the dial gauge (3 mm range) with 1 mm preload to "0".
  • Loosen securing bolts for clutch housing/transmission housing in diagonal sequence until bolts clear transmission housing and output shaft.
  • Read measured value on dial indicator and note (example: 0.14 mm).

Volswagen Tiguan. N35-0240

Note

  • The measured value will not be displayed when loosening the bolts that connect the clutch housing to the transmission housing.
  • Install a 1.95 mm shim or, if necessary, a 2.20 mm shim in place of the 1.70 mm shim for measuring.
  • Allocate the correct shim. Refer to the Parts Catalog.

Determining the Shim

The required bearing tension is reached as follows:

The specified bearing pre-load is reached when determined measured value (0.14 mm) is subtracted from inserted adjustment shim (1.70 mm).

A constant figure of (0.20 mm) is added to the reading.

Example:

Inserted shim 1.70 mm
- measured value 0.14 mm
+ Preload (constant value) 0.20 mm
Shim thickness 1.76 mm
  • Select the correct shim thickness according to the table.

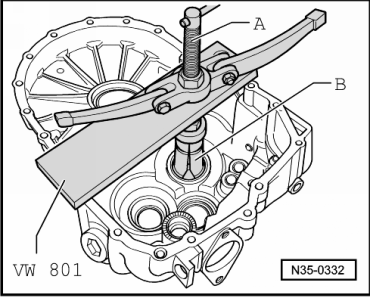

  • Remove the transmission housing and remove the tapered roller bearing outer race from the transmission housing.
  1. Counter Support, for example, Puller - Kukko Counterstay -22/2-
  2. Internal Puller 46 to 58 mm, for example, Puller - Kukko Internal - 46-56mm -Kukko 21/7-
  • Remove the inserted shim (1.70 mm) from the transmission housing.

Volswagen Tiguan. N35-0332

Shim Table

  Thickness (mm)
1.45 1.75 2.05
1.50 1.80 2.10
1.55 1.85 2.15
1.60 1.90 2.20
1.65 1.95 2.25
1.70 2.00

Tolerance variations make it possible to find the exact shim thickness required.

  • Shim part number. Refer to the Parts Catalog.
  • Install the outer race/tapered roller bearing with the selected shim (in the example: 1.75 mm) Support transmission housing directly beneath bearing mount using Slide Hammer - Press Plate -2050-.

Volswagen Tiguan. N35-0239

Checking Measurement

  • The selected adjusting shim is installed.
  • Position the measuring tools on the clutch housing and secure them with a bolt -arrow-.
  • Set the dial gauge (3 mm range) with 1 mm preload to "0".
  • Loosen securing bolts for clutch housing/transmission housing in diagonal sequence until bolts clear transmission housing and output shaft.
  • For correctly selected shim, the dial gauge must now display a value of 0.15 mm to 0.25 mm.

Volswagen Tiguan. N35-0240

Tightening Specifications

Transmission housing to clutch housing.

Output Shaft, 5th, 6th and Reverse Gears, Adjusting

Special tools and workshop equipment required

  • Holding Fixture -VW313-
  • Transmission Support -VW353-
  • Dial Gauge Holder -VW387-
  • Press Piece - Rod -VW407-
  • Press Piece - Multiple Use -VW433-
  • Seal Installer - Stator -VW792-
  • Crankshaft Holding Fixture -VW801-
  • Holding Plate -VW309A-
  • or Holding Plate - VW309A-
  • Slide Hammer - Press Plate -2050-
  • Torque Wrench 1331 5-50Nm -VAG1331-
  • -1-Puller - Kukko Internal - 46-56mm -21/7-
  • -4-Puller - Kukko Counterstay -22/2-
  • Dial Indicator -VAS6080A-

It is necessary to adjust the output shaft if the following components were replaced:

  • Transmission Housing
  • Clutch Housing
  • Output Shaft, 5th, 6th and Reverse Gears or
  • Output shaft tapered roller bearing

Adjustment Overview.

Requirements:

  • Remove any Sealant remaining on the sealing surfaces on the clutch and transmission housing.
  • Install the output shaft that is going to be measured.

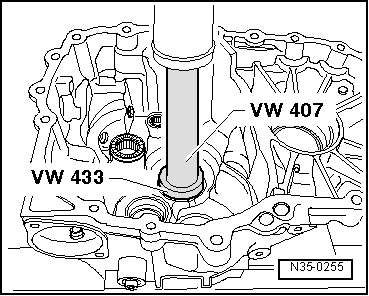

  • Install the tapered roller bearing outer race in the transmission housing with a 1.70 mm shim. Support transmission housing directly beneath bearing mount using Slide Hammer - Press Plate -2050-.
  • Install the output shaft for 5th/6th gears and reverse gear into the clutch housing.

Volswagen Tiguan. N35-0255

  • Install the transmission housing and tighten the bolts -A- and -B- diagonally.

Volswagen Tiguan. N34-0992

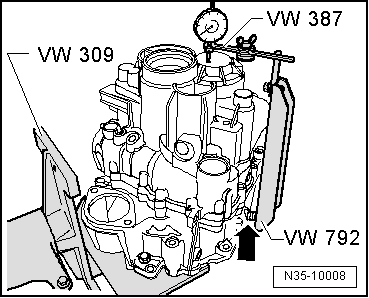

  • Attach the measuring tools to the clutch housing.

In the case of protruding housing edges:

  • Place washers (total thickness: 8 mm) under the Seal Installer - Stator -VW792--arrow-.
  • Set the dial gauge (3 mm range) with 1 mm preload to "0".
  • Loosen securing bolts for clutch housing/transmission housing in diagonal sequence until bolts clear transmission housing and output shaft.
  • Read measured value on dial indicator and note (example: 0.25 mm).

Volswagen Tiguan. N35-10008

Note

  • The measured value will not be displayed when loosening the bolts that connect the clutch housing to the transmission housing.
  • Install a 1.95 mm shim or, if necessary, a 2.20 mm shim in place of the 1.70 mm shim for measuring.
  • Allocate the correct shim. Refer to the Parts Catalog.

Determining the Shim

The required bearing tension is reached as follows:

The specified bearing pre-load is reached when determined measured value (0.25 mm) is subtracted from inserted shim (1.70 mm).

A constant figure of (0.20 mm) is added to the reading.

Example:

Inserted shim 1.70 mm
- measured value 0.25 mm
+ Preload (constant value) 0.20 mm
Shim thickness 1.65 mm
  • Select the correct shim thickness according to the table.

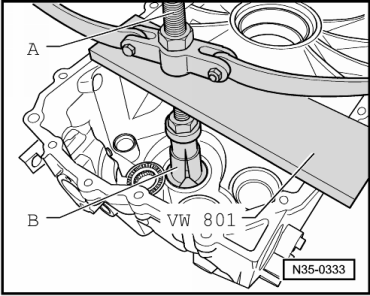

  • Remove the transmission housing and remove the tapered roller bearing outer race from the transmission housing.
  1. Counter Support, for example, Puller - Kukko Counterstay -22/2-
  2. Internal Puller 46 to 58 mm, for example, Puller - Kukko Internal - 46-56mm -21/7-
  • Remove the inserted shim (1.70 mm) from the transmission housing.

Volswagen Tiguan. N35-0333

Shim Table

Thickness (mm)
1.50 1.80 2.10
1.55 1.85 2.15
1.60 1.90 2.20
1.65 1.95 2.25
1.70 2.00
1.75 2.05
  • Part numbers. Refer to the Parts Catalog.

Tolerance variations make it possible to find the exact shim thickness required.

  • Install the outer race/tapered roller bearing with the selected shim (in the example: 1.65 mm) Support transmission housing directly beneath bearing mount using Slide Hammer - Press Plate -2050-.

Volswagen Tiguan. N35-0255

Checking Measurement

  • The selected adjusting shim is installed.



  • Attach the measuring tools to the clutch housing.

In the case of protruding housing edges:

  • Place washers (total thickness: 8 mm) under the Seal Installer - Stator -VW792--arrow-.
  • Set the dial gauge (3 mm range) with 1 mm preload to "0".
  • Loosen securing bolts for clutch housing/transmission housing in diagonal sequence until bolts clear transmission housing and output shaft.
  • For correctly selected shim, the dial gauge must now display a value of 0.15 mm to 0.25 mm.

Volswagen Tiguan. N35-10008

Tightening Specifications

Transmission housing to clutch housing.
