Volkswagen Tiguan Service and Repair Manual: Special Tools
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4092.png)
Special tools and workshop equipment required

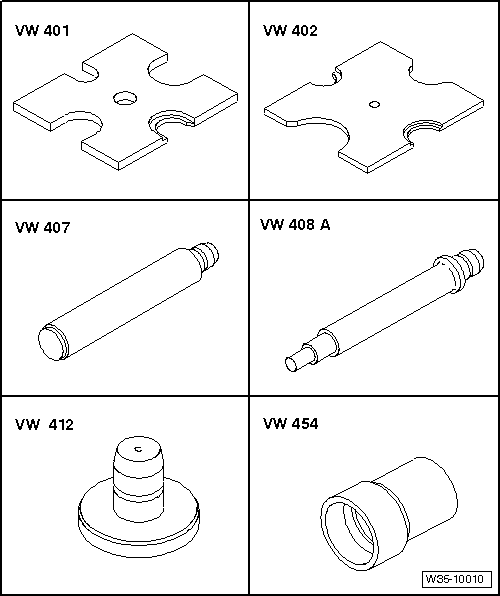

- Press Plate -VW401-
- Press Plate -VW402-
- Press Piece - Rod -VW407-
- Press Piece - Rod -VW408A-
- Press Piece - Rod -VW412-
- Press Piece - Multiple Use -VW454-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4093.png)

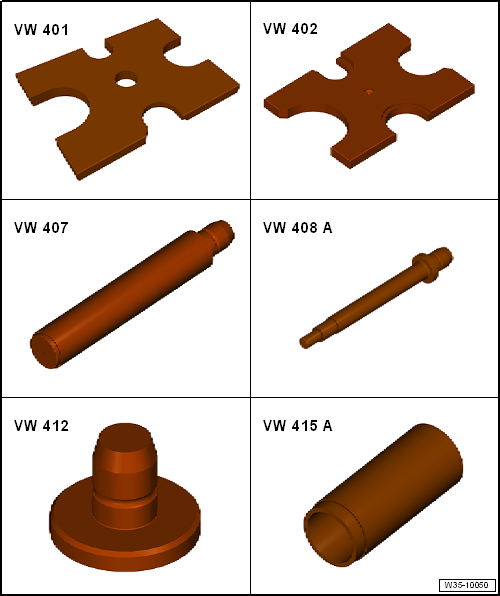

- Press Plate -VW401-
- Press Plate -VW402-
- Press Piece - Rod -VW407-
- Press Piece - Rod -VW408A-
- Press Piece - Multiple Use -VW412-
- Press Piece - 60mm -VW415A-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4094.png)

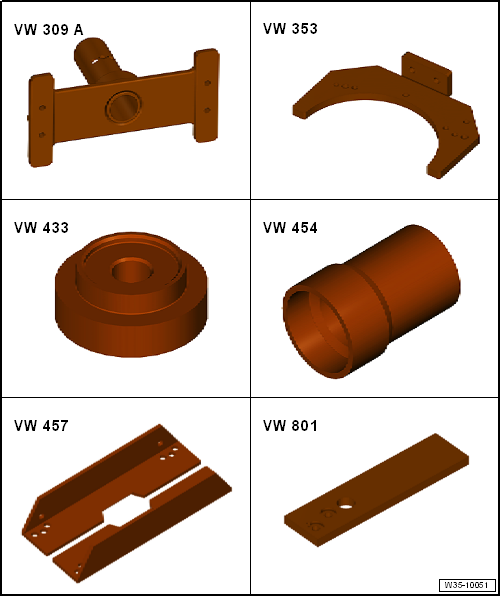

- Holding Fixture -VW313-
- Holding Plate -VW309A-
- or Holding Plate - VW309A-
- Transmission Support -VW353-
- Press Piece - Multiple Use -VW433-
- Press Piece - Multiple Use -VW454-
- Support Channels -VW457-
- Crankshaft Holding Fixture -VW801-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4095.png)

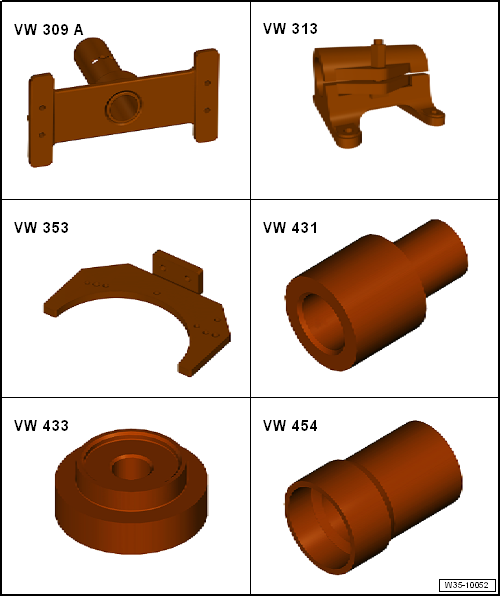

- Holding Plate -VW309A-
- or Holding Plate -VW309A-
- Holding Fixture -VW313-
- Transmission Support -VW353-
- Press Piece - Multiple Use -VW431-
- Press Piece - Multiple Use -VW433-
- Press Piece - Multiple Use -VW454-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4096.png)

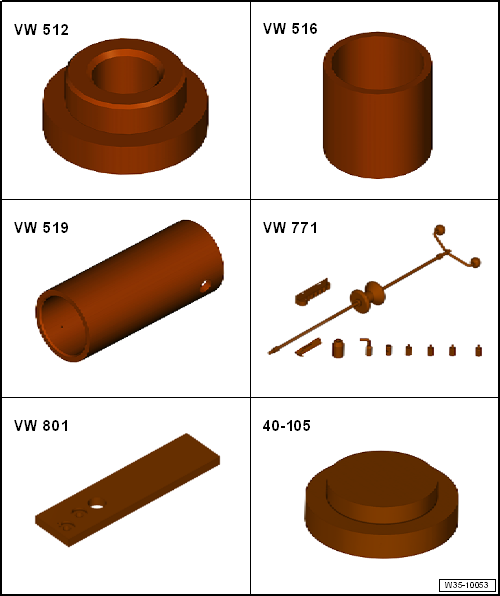

- Press Piece - Multiple Use -VW512-
- Press Piece - 42mm -VW516-
- Press Piece - Multiple Use -VW519-
- Slide Hammer Set -VW771-
- Crankshaft Holding Fixture -VW801-
- Press Piece - Multiple Use -40-105-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4097.png)

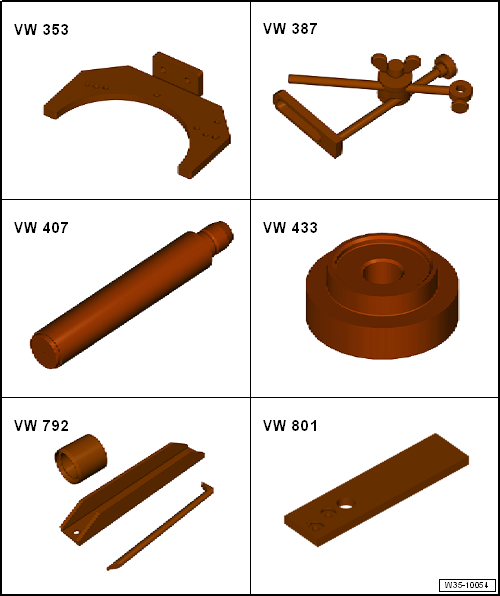

- Holding Fixture -VW313-
- Transmission Support -VW353-
- Dial Gauge Holder -VW387-
- Press Piece - Rod -VW407-
- Press Piece - Multiple Use -VW433-
- Seal Installer - Stator -VW792-
- Crankshaft Holding Fixture -VW801-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4098.png)

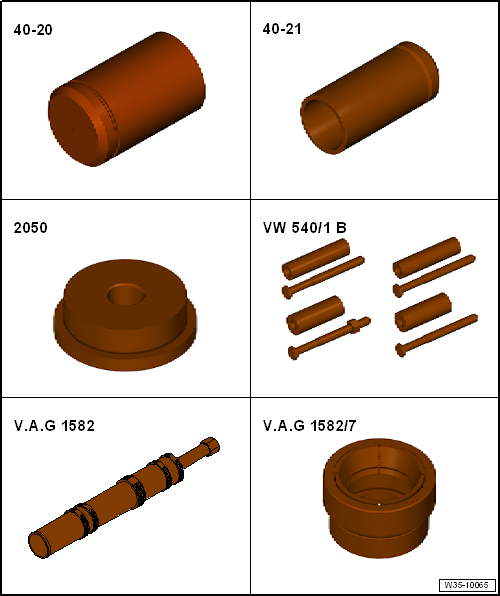

- Bearing Installer - Multiple Use -40-20-
- Bearing Installer - Differential Bearing -40-21-
- Slide Hammer - Press Plate -2050-
- Holding Fixture - Spacers -VW540/1B-
- Puller - Taper Roller Bearing -VAG1582-
- Puller - Taper Roller Bearing - Adapter 7 -VAG1582/7-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4099.png)

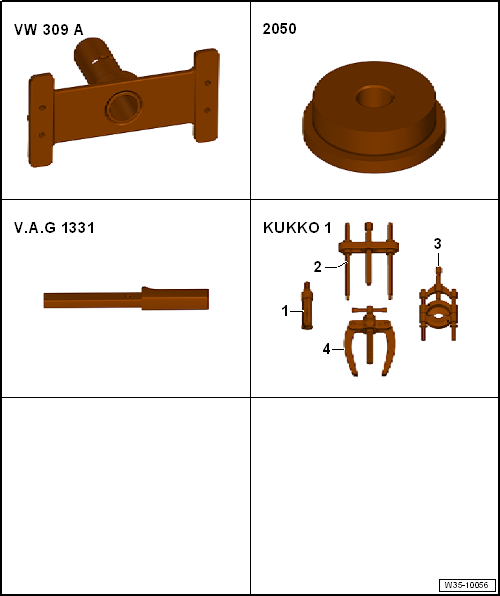

- Holding Plate -VW309A-
- or Holding Plate - VW309A-
- Slide Hammer - Press Plate -2050-
- Torque Wrench 1331 5-50Nm -VAG1331-
- -1-Puller - Kukko Internal - 46-56mm -21/7-
- -4-Puller - Kukko Counterstay -22/2-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4100.png)

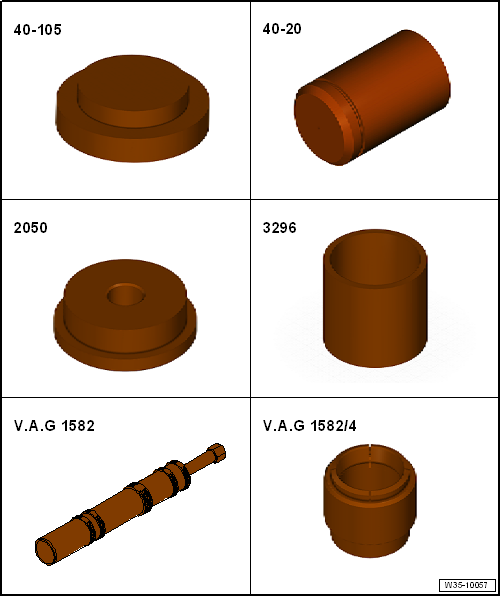

- Press Piece - Multiple Use -40-105-
- Bearing Installer - Multiple Use -40-20-
- Slide Hammer - Press Plate -2050-
- Press Piece - Reverse Gear Syncro -3296-
- Puller - Taper Roller Bearing -VAG1582-
- Puller - Taper Roller Bearing - Adapter 4 -VAG1582/4-

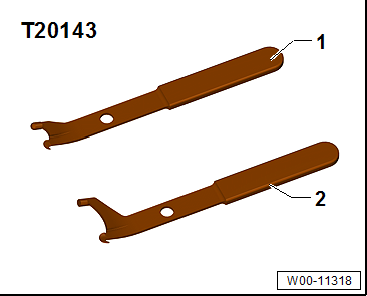

- Puller - Crankshaft/Power Steering Seal -T20143/1-
![Volswagen Tiguan. W00-11318](/images/manuals/466/vw_tiguan_special_tools_4101.png)

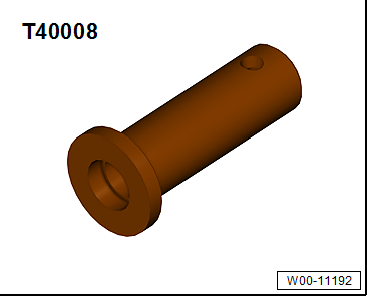

- Seal Installer - Drive Axle -T40008-
![Volswagen Tiguan. W00-11192](/images/manuals/466/vw_tiguan_special_tools_4102.png)

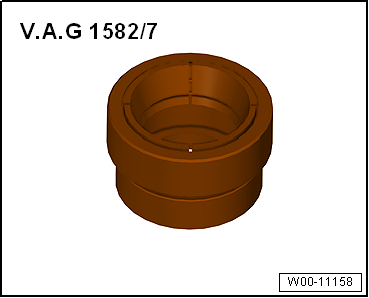

- Puller - Taper Roller Bearing - Adapter 7 -VAG1582/7-
![Volswagen Tiguan. W00-11158](/images/manuals/466/vw_tiguan_special_tools_4103.png)

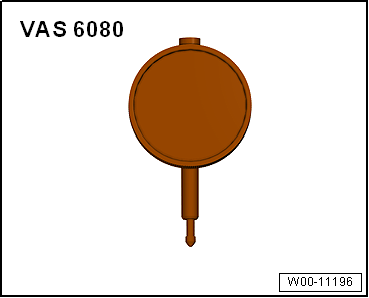

- Dial Indicator -VAS6080A-
![Volswagen Tiguan. W00-11196](/images/manuals/466/vw_tiguan_special_tools_4104.png)

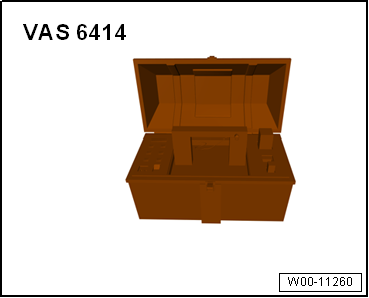

- Inductive Heater -VAS6414-
![Volswagen Tiguan. W00-11260](/images/manuals/466/vw_tiguan_special_tools_4105.png)

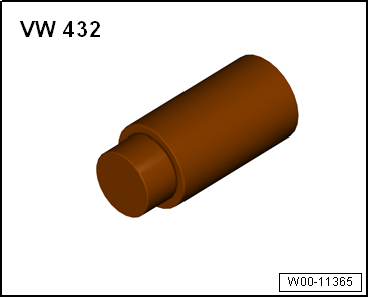

- Press Piece - Bushing - 50mm Diameter -VW432-
![Volswagen Tiguan. W00-11365](/images/manuals/466/vw_tiguan_special_tools_4106.png)
- -1-Puller - Kukko Internal - 28-37mm -21/5-
- -4-Puller - Kukko Counterstay -22/2-
- Feeler Gauge
![Volswagen Tiguan. W00-11179](/images/manuals/466/vw_tiguan_special_tools_4107.png)

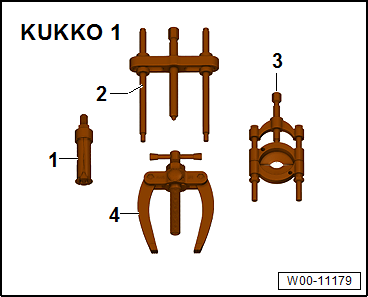

- -1-Puller - Kukko Internal - 46-56mm -21/7-
- -1-Puller - Kukko Internal - 56-70mm -21/8-
- -2-Puller - Kukko Puller - 60-200mm Width, 250mm Length -18/2-
- -3-Puller - Kukko Quick Action Separating Tool - 22-115mm -17/2-
- -4-Puller - Kukko Counterstay -Kukko 22/2-
- -3-Puller - Kukko Quick Action Separating Tool - 22-115mm -17/2-
![Volswagen Tiguan. W00-11179](/images/manuals/466/vw_tiguan_special_tools_4108.png)

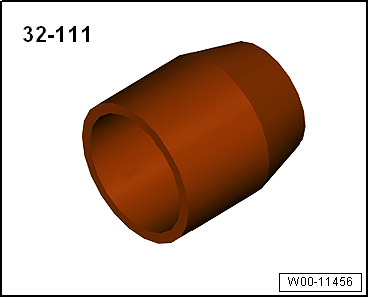

- Bearing Installer - Multiple Use -32-111-
![Volswagen Tiguan. W00-11456](/images/manuals/466/vw_tiguan_special_tools_4109.png)

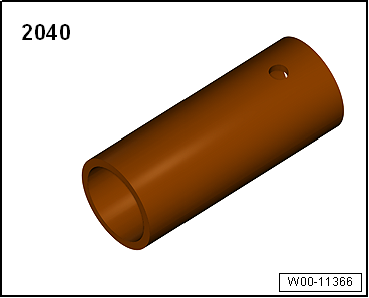

- Press Piece - Front Control Arm -2040-
![Volswagen Tiguan. W00-11366](/images/manuals/466/vw_tiguan_special_tools_4110.png)
Output Shaft 1st through 4th Gear, Adjusting
Special tools and workshop equipment required
Holding Fixture -VW313-
Transmission Support -VW353-
Dial Gauge Holder -VW387-
Press Piece - Rod -VW407- ...
