Volkswagen Tiguan Service and Repair Manual: Transmission, Transporting

Transmission, Transporting

Special tools and workshop equipment required

  • Transmission Support Jig -3336-
  • Shop Crane -VAS6100-

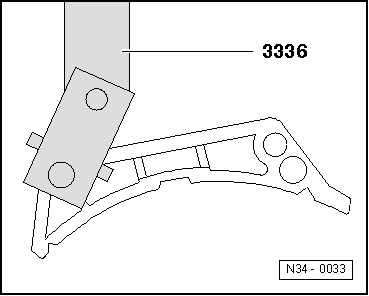

  • Attach the Transmission Support Jig -3336- to the clutch housing.

Volswagen Tiguan. N34-0033

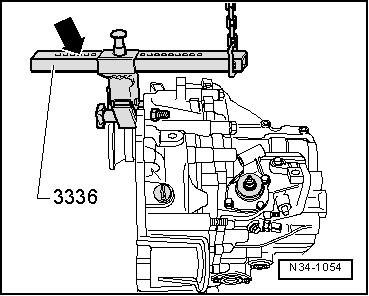

  • Move the support arm on the sliding bar using the locking bolt -arrow-.

Number of visible holes = 6.

  • Lift the transmission with a workshop crane and the Transmission Support Jig -3336-.
  • Set the transmission down, for example, into the transport container.

Volswagen Tiguan. N34-1054

Transmission Fluid

Transmission Fluid Level, Checking

Special tools and workshop equipment required

  • For oil filler plug with multi-point fitting Triple Square Socket Driver -3357-.
  • Torque Wrench 1331 5-50Nm -VAG1331-

Transmission fluid. Refer to the Parts Catalog.

  • Remove the noise insulation.

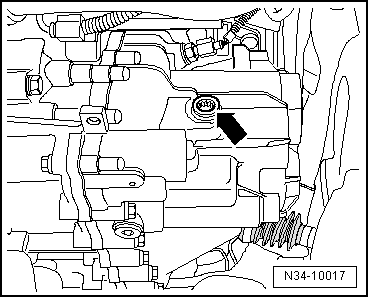

  • Remove the plug for checking the transmission fluid level -arrow-.

The Level Is Correct When the Transmission Fluid Comes up to the Bottom Edge of Oil Filler Hole.

  • Add transmission fluid, if necessary, until it reaches the lower edge of the filler hole.
  • If present with new seal, install bolt -arrow-.
  • Tighten the bolt -arrow-.

Volswagen Tiguan. N34-10017

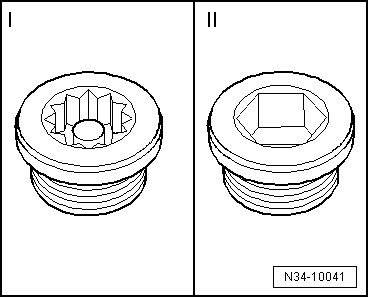

Different Versions of Fluid Fill and Drain Plugs

I - Fluid fill or drain plug with internal multi-point, 45 Nm

II - Fluid fill or drain plug with inner hex socket, 35 Nm

  • Install the noise insulation.

Volswagen Tiguan. N34-10041

Securing on Engine and Transmission Holder

Manual Transmission, Securing on Engine and Transmission Holder

Special tools and workshop equipment required

  • Holding Fixture -VW313-
  • Holding Plate -VW309A-
  • or Holding Plate -VW309A-
  • Transmission Support -VW353-

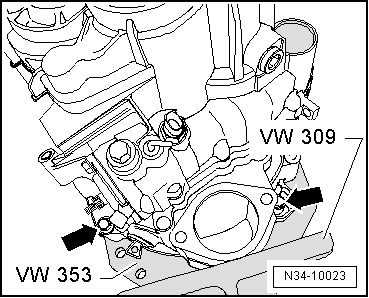

  • Secure the transmission on the Transmission Support -VW353--arrows-.
  • Place the Drip Tray -VAS6208- underneath.

Volswagen Tiguan. N34-10023


If one of the fastening holes does not touch the Transmission Support -VW353-, place washers between the fastening hole and the Transmission Support -VW353-.
