Volkswagen Tiguan Service and Repair Manual: Rear Window Washer System

General Information

Note

Additional information:

  • Refer to the Owner's Manual.
  • Refer to Self Study Program; No 404; The Tiguan.

Overview - Rear Window Washer System

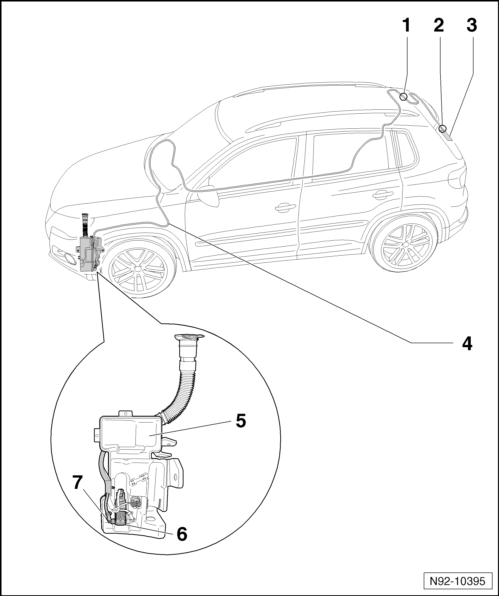

Volswagen Tiguan. Overview - Rear Window Washer System

  1. Connecting Piece
    • Separating point between wiring harness of passenger compartment to wiring harness of rear lid
    • Overview - washer fluid hose couplings.
  2. Angle Coupling
    • Connection to spray nozzle of rear window washer system
    • Overview - washer fluid hose couplings.
  3. Spray Nozzle for Rear Window Washer System
    • Replacing spray nozzle.
    • Spray nozzle, adjusting.
  4. Hose
    • Hose repair.
  5. Tank for Window Washer System
    • Removing and installing.
  6. Windshield and Rear Window Washer Pump -V59-
    • Removing and installing.
  7. Angle Coupling
    • Connection to Windshield and Rear Window Washer Pump -V59-
    • Overview - washer fluid hose couplings.

Spray Nozzle, Replacing

Removing

  • Move the wiper arm into park position.
  • Switch off the ignition and all electrical consumers and remove the ignition key.
  • Fold open the cap on the rear window wiper arm.

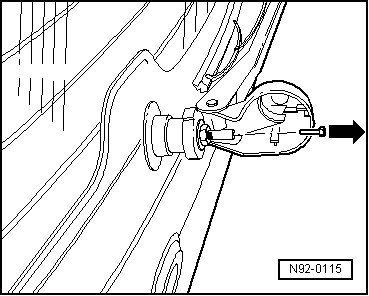

  • Remove the spray nozzle from the wiper arm shaft with pliers -arrow-.

Volswagen Tiguan. N92-0115

Installing

  • Push the spray nozzle all the way into the wiper arm shaft with the spray opening facing up.
  • Adjust the rear window washer system spray nozzle.

Rear Window Spray Nozzle, Adjusting

  • Adjust the rear window spray nozzles.
