Volkswagen Tiguan Service and Repair Manual: One-Part Test Paint


  • One-Part Test Paint -LLS MAX 005-, black

Product Description

The One-Part Test Paint -LLS MAX 005- is a single-compound product from the NC resin combinations.


  • Easy application (one-part material)
  • Dries quickly
  • High yield
  • High covering capacity
  • Even application
  • Easy to sand
Application Instructions


Detecting uneven surfaces in primer- and filler base surfaces

Base Surface

Suitable base surfaces:
  • All primers unsanded
  • All applied fillers unsanded

Pre-treatment of base surfaces:

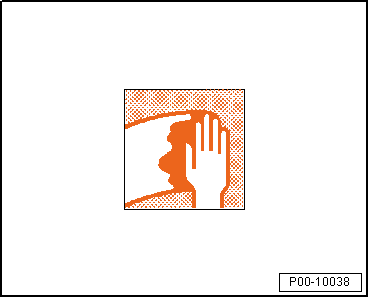

  • Carefully clean using the Silicone Remover -LLS MAX 007- or Silicone Remover, Long -LLS MAX 0008-.

Volswagen Tiguan. P00-10038


For work safety, wear appropriate, personal protective equipment.

  • Latex or nitrile protective gloves, for example
  • Breathing mask, for example type A2/P2

Volswagen Tiguan. P00-10234

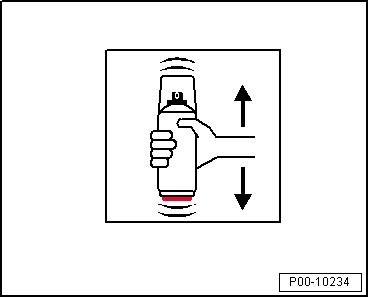

  • Thoroughly shake the can for at least two minutes and perform a short "spray test".

Application type "coat"

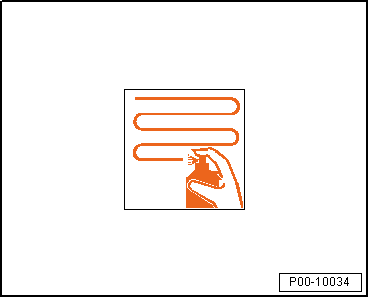

  • Apply one misty, thin and even spray application.
  • The recommended dry layer thickness is 15 um.

Spraying distance:

  • Maintain a distance of 20 to 25 cm.

Volswagen Tiguan. P00-10034


If the spraying procedure is interrupted, make sure that the valve above the spray head is empty to prevent any nozzle blockage.

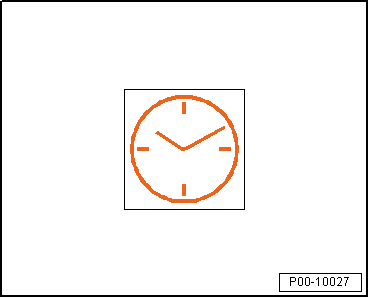

Dry at +20 ºC (68 ºF) room temperature for 10 minutes. IR drying is possible with this product.


For work safety, wear appropriate, personal protective equipment.

Note the safety data sheets as well as the warnings on the label of the spray nozzle.

Shake briefly again before every subsequent spray application.

Dispose of the empty spray cans as recyclable material.

Volswagen Tiguan. P00-10027


Solid matter content approximately 16 %
Yield Approximately 0.5 m² / spray can with 30 to 40 μm dry layer thickness
Note Used only by a professional
VOC value The EU limit for this product (product category IIB.b) in ready-to-use form is a maximum of 650 to 693 g/L volatile organic compounds. The VOC value of this product in ready-to-use form is a maximum of 260 to 277 g/can.

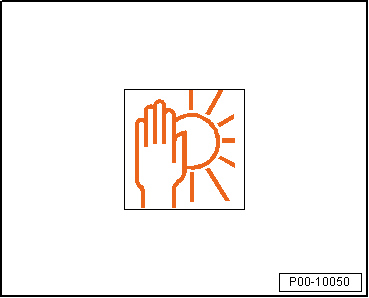

The guaranteed shelf life of 60 months from date of manufacture. Use no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).

Volswagen Tiguan. P00-10050
