Volkswagen Tiguan Service and Repair Manual: Door Trim Panels
Tools
Required Special Tools and Testing Equipment

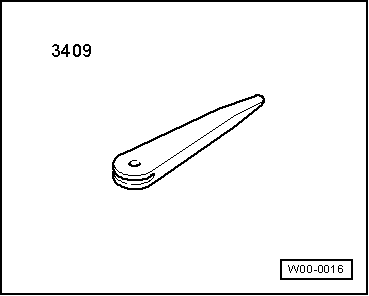

- Trim Removal Wedge -3409-
![Volswagen Tiguan. W00-0016](/images/manuals/466/vw_tiguan_door_trim_panels_600.png)

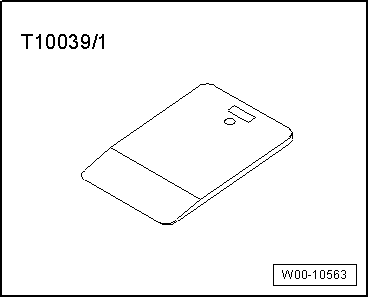

- Trim Release Lever - Wedge -T10039/1-
![Volswagen Tiguan. W00-10563](/images/manuals/466/vw_tiguan_door_trim_panels_601.png)
- Torque Wrench 1783 - 2-10Nm -VAG1783-
![Volswagen Tiguan. W00-0990](/images/manuals/466/vw_tiguan_door_trim_panels_602.png)
Front Door Trim Panel, Removing and Installing
Note
The following describes the removing and installing on the left side of
the vehicle. Removing and installing on the right side is identical.
Removing
- Switch off the ignition.

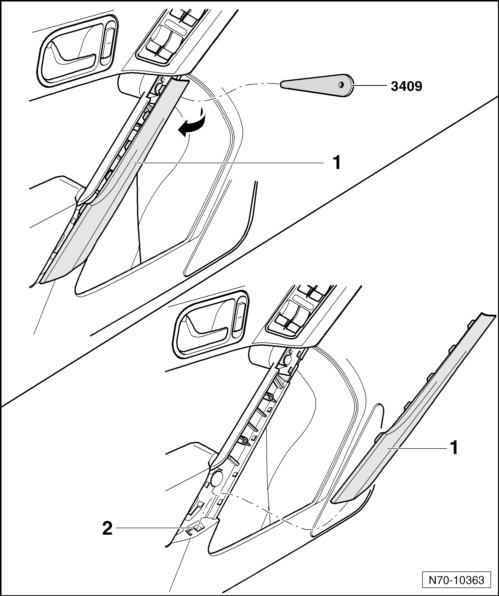

- Pry the handle molding upper section -1- at
the upper end from the mount in the door trim, starting at the top and using
the Trim Removal Wedge -3409-.
- Pull the upper section -1- from the top
downward out of its retainers and out of the lower mounting
-2-.
![Volswagen Tiguan. Front Door Trim Panel, Removing and Installing](/images/manuals/466/vw_tiguan_door_trim_panels_603.png)

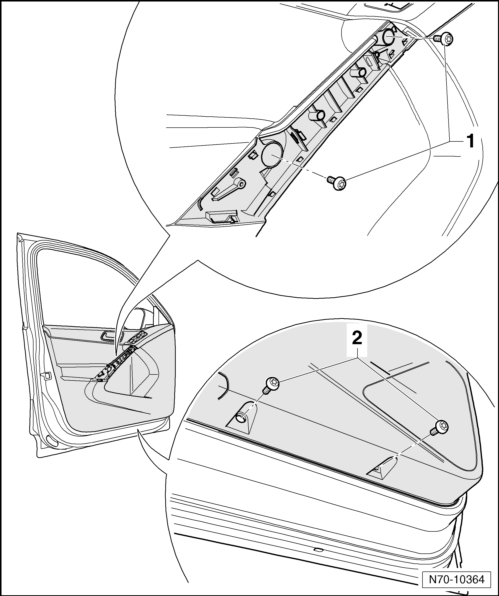

- Remove the two bolts -1- (4.5 Nm).
- Remove the two bolts -2- (4.5 Nm).
![Volswagen Tiguan. Front Door Trim Panel, Removing and Installing](/images/manuals/466/vw_tiguan_door_trim_panels_604.png)
Caution
When loosening the door trim panel, the mounting elements could be damaged.
To prevent this, follow the specified location and sequence for the clip
connections to be loosened when removing the door trim.

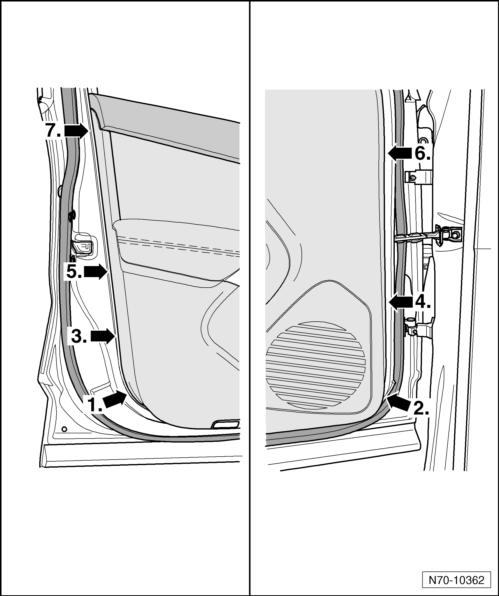

- Remove the door trim from the brackets, in the
-specified sequence-, using the Trim Release Lever - Wedge
-T10039/1-.
Note
When removing the door trim, the bevel surface of the Trim Release Lever -
Wedge -T10039/1- must point toward the door panel.
![Volswagen Tiguan. Front Door Trim Panel, Removing and Installing](/images/manuals/466/vw_tiguan_door_trim_panels_605.png)

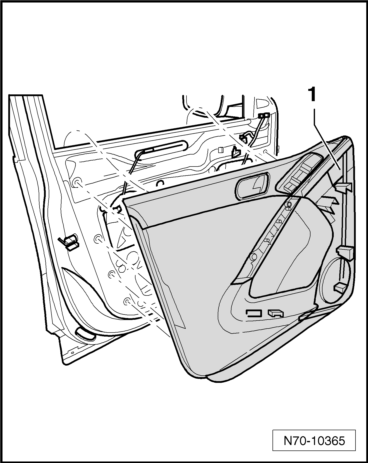

- Pull the door trim panel -1-, vertically
upward out of the window shaft.
![Volswagen Tiguan. Front Door Trim Panel, Removing and Installing](/images/manuals/466/vw_tiguan_door_trim_panels_606.png)
- On the inside of the door trim panel, pull the securing tab
-1- outward.
- Remove the release cable out of the guide to the rear.
- Disengage the release cable -2- from the
interior door mechanism.
![Volswagen Tiguan. N70-10366](/images/manuals/466/vw_tiguan_door_trim_panels_607.png)

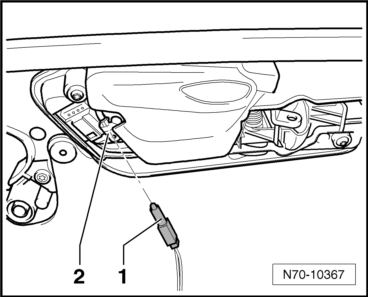

- Depending on vehicle equipment disconnect the wiring harness from the
door trim panel and turn the Driver Interior Door Handle Illumination Bulb
-L146- or Front Passenger Interior Door Handle Illumination Bulb -L147--1-
approximately 90º to the left.
- Remove the Driver Interior Door Handle Illumination Bulb -L146- or Front
Passenger Interior Door Handle Illumination Bulb -L147- from the mount
-2-.
![Volswagen Tiguan. N70-10367](/images/manuals/466/vw_tiguan_door_trim_panels_608.png)
Installing
- Install in reverse order of removal.
Note
Before installing, inspect the clips for damage and replace if necessary.

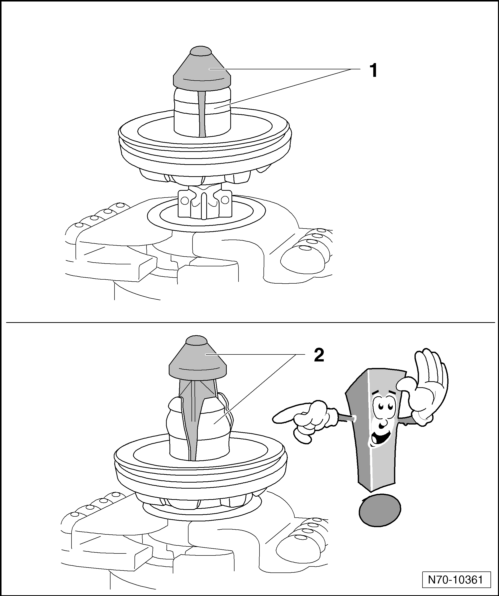

Caution
Before installing the door trim panel, make sure the release mechanisms on
all the clips are in the -1 position-.
It is not possible to install the door trim panel correctly if the clips are
in the -2 position-.
![Volswagen Tiguan. Front Door Trim Panel, Removing and Installing](/images/manuals/466/vw_tiguan_door_trim_panels_609.png)
Rear Door Trim Panel, Removing and Installing
Note
The following describes the removing and installing on the left side of the
vehicle. Removing and installing on the right side is identical.
Removing
- Switch off the ignition.

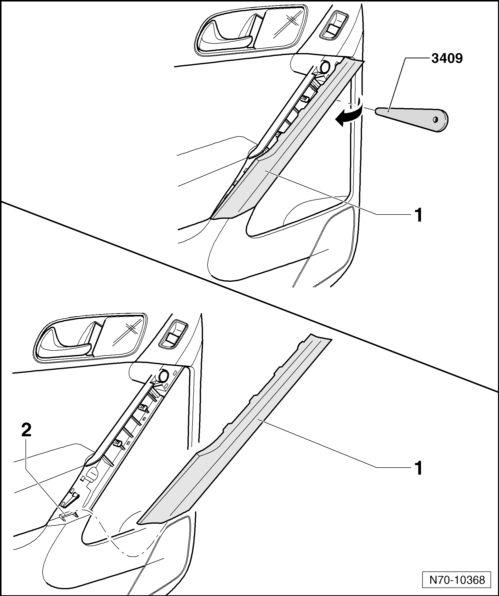

- Pry the handle molding upper section -1- at
the upper end from the mount in the door trim, starting at the top and using
the Trim Removal Wedge -3409-.
- Pull the upper section -1- from the top
downward out of its retainers and out of the lower mounting
-2-.
![Volswagen Tiguan. Rear Door Trim Panel, Removing and Installing](/images/manuals/466/vw_tiguan_door_trim_panels_610.png)

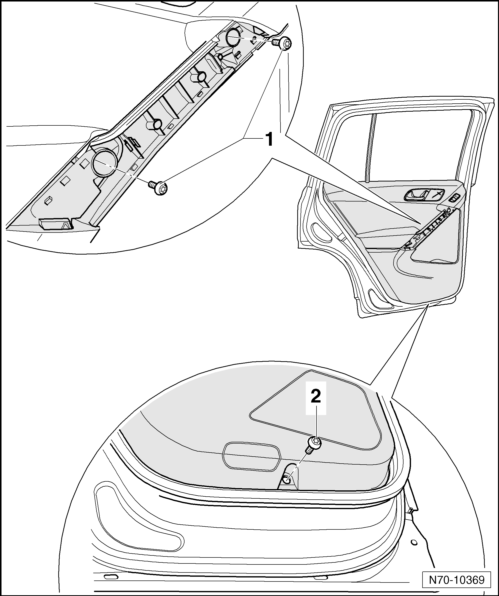

- Remove the two bolts -1- (4.5 Nm).
- Remove the bolt -2- (4.5 Nm).
![Volswagen Tiguan. Rear Door Trim Panel, Removing and Installing](/images/manuals/466/vw_tiguan_door_trim_panels_611.png)
Caution
When loosening the door trim panel, the mounting elements could be damaged.
To prevent this, follow the specified location and sequence for the clip
connections to be loosened when removing the door trim.

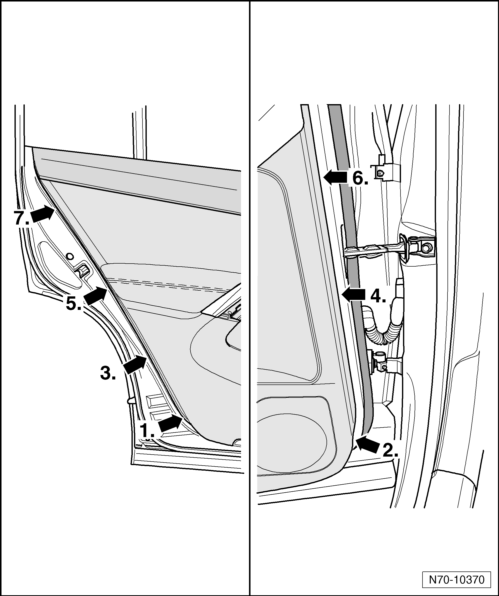

- Remove the door trim from the brackets, in the
-specified sequence-, using the Trim Release Lever - Wedge
-T10039/1-.
Note
When removing the door trim, the bevel surface of the Trim Release Lever -
Wedge -T10039/1- must point toward the door panel.
![Volswagen Tiguan. Rear Door Trim Panel, Removing and Installing](/images/manuals/466/vw_tiguan_door_trim_panels_612.png)

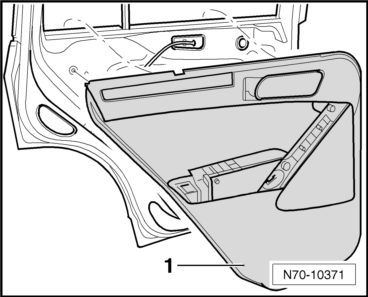

- Pull the door trim panel -1-, vertically
upward out of the window shaft.
![Volswagen Tiguan. N70-10371](/images/manuals/466/vw_tiguan_door_trim_panels_613.png)

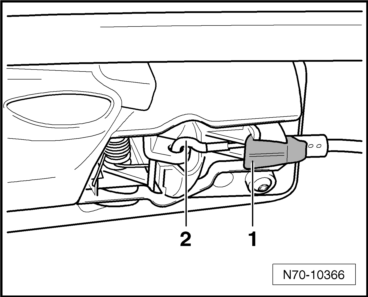

- On the inside of the door trim panel, pull the securing tab
-1- outward.
- Remove the release cable out of the guide to the rear.
- Disengage the release cable -2- from the
interior door mechanism.
- Depending on vehicle equipment, disconnect the wiring harnesses from the
door trim panel.
![Volswagen Tiguan. N70-10366](/images/manuals/466/vw_tiguan_door_trim_panels_614.png)
Installing
- Install in reverse order of removal.
Note
Before installing, inspect the clips for damage and replace if necessary.
Caution
Before installing the door trim panel, make sure the release mechanisms on
all the clips are in the -1 position-.
It is not possible to install the door trim panel correctly if the clips are
in the -2 position-.
![Volswagen Tiguan. Rear Door Trim Panel, Removing and Installing](/images/manuals/466/vw_tiguan_door_trim_panels_615.png)
Door Trim Panel Cover, Removing and Installing
Note
The following describes the removing and installing on the left side of the
vehicle. Removing and installing on the right side is identical.
Removing
- Switch off the ignition.
- Remove the front door trim.
![Volswagen Tiguan. N70-10372](/images/manuals/466/vw_tiguan_door_trim_panels_616.png)

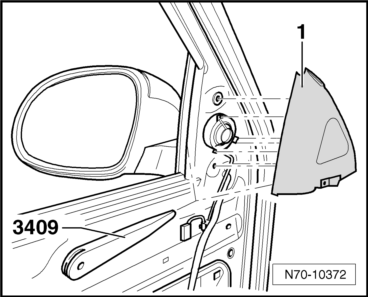

- Pry door trim panel cover -1- out of the
mounts in inner door panel using the Trim Removal Wedge -3409-.
Installing
Note
Before the assembly, check the fasteners for damage and replace if necessary.
- Install in reverse order of removal.
