Volkswagen Tiguan Service and Repair Manual: Special Tools
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4155.png)
Special tools and workshop equipment required

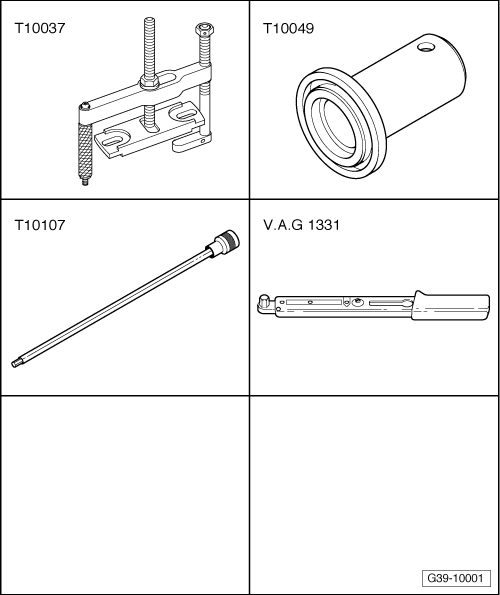

- Puller - Flanged Shaft -T10037-
- Seal Installer - Flange Shaft -T10049-
- Socket And Extended Bit -T10107A-
- Torque Wrench 1331 5-50Nm -VAG1331-
- Drip Tray -VAG1306-
- Sealing Grease -G 052 128 A1-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4156.png)

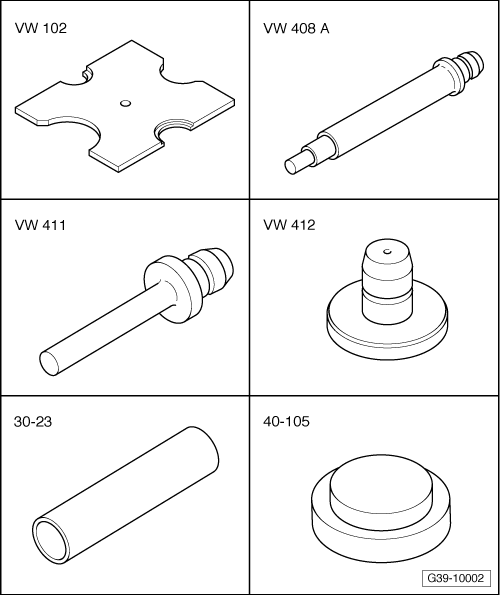

- Press Plate -VW402-
- Press Piece - Rod -VW408A-
- Press Piece - Rod -VW411-
- Press Piece - Multiple Use -VW412-
- Press Piece - Multiple Use -30-23-
- Press Piece - Multiple Use -40-105-

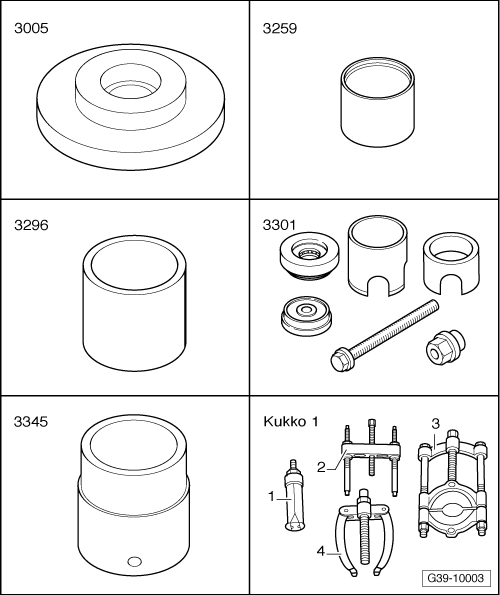

![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4157.png)
- Press Piece - Multiple Use -3005-
- Press Piece - Bushing -3259-
- Press Piece - Reverse Gear Syncro -3296-
- Subframe Bushing Tool Kit -3301-
- Bearing Installer - Wheel Bearing -3345-
- 1. Puller - Kukko Internal - 46-56mm -21/7-
- 2. Puller - Kukko Puller - 60-150mm Width, 200mm Length -18/1-
- 3. Puller - Kukko Quick Action Separating Tool - 12-75mm -17/1-
- 4. Puller - Kukko Counterstay -22/2-

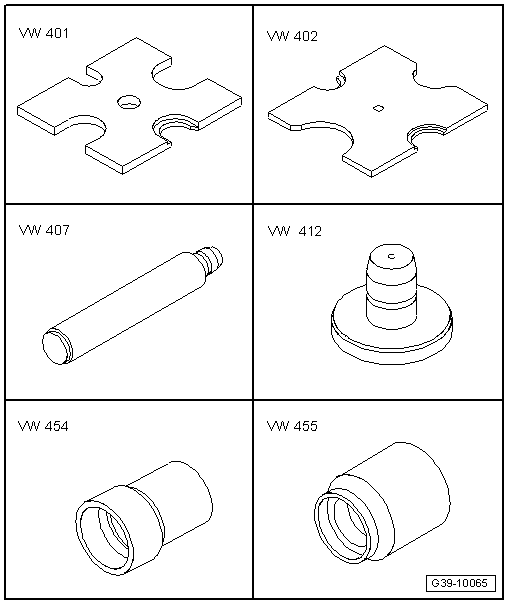

![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4158.png)
- Press Plate -VW401-
- Press Plate -VW402-
- Press Piece - Rod -VW407-
- Press Piece - Multiple Use -VW412-
- Press Piece - Multiple Use -VW454-
- Press Piece - Multiple Use -VW455-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4159.png)

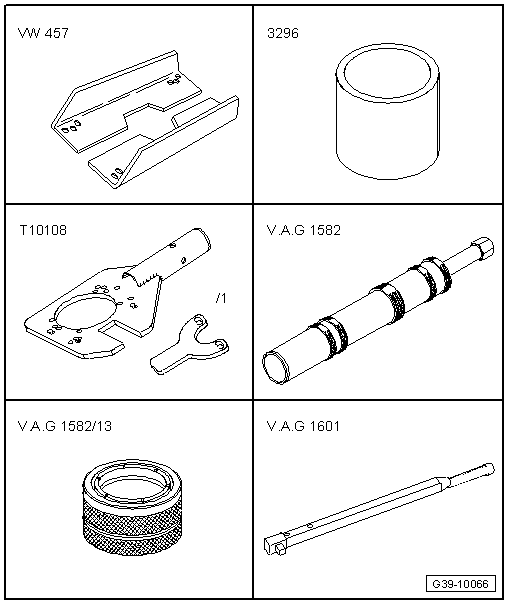

- Support Channels -VW457-
- Press Piece - Reverse Gear Syncro -3296-
- Gearbox Support -T10108-
- Gearbox Support -T10108/1-
- Puller - Taper Roller Bearing -VAG1582- with a short sleeve
- Puller - Taper Roller Bearing - Adapter 13 -VAG1582/13-
- Torque Wrench 1601 -VAG1601-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4160.png)

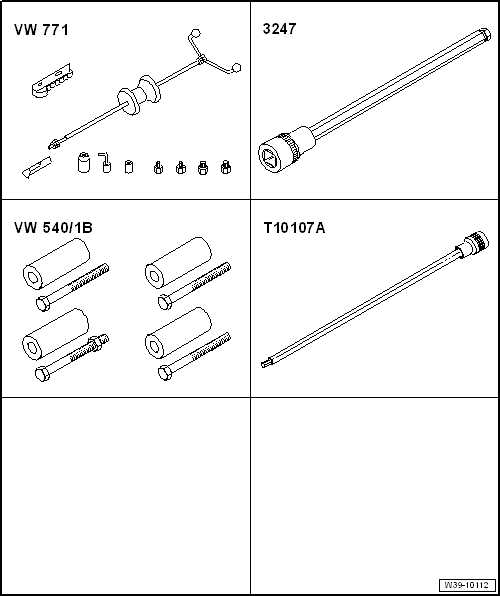

- Slide Hammer Set -VW771-
- Hex Ball Socket -3247-
- Holding Fixture - Spacers -VW540/1B-
- Drip Tray -VAG1306-
- Sealing Grease -G 052 128 A1-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4161.png)

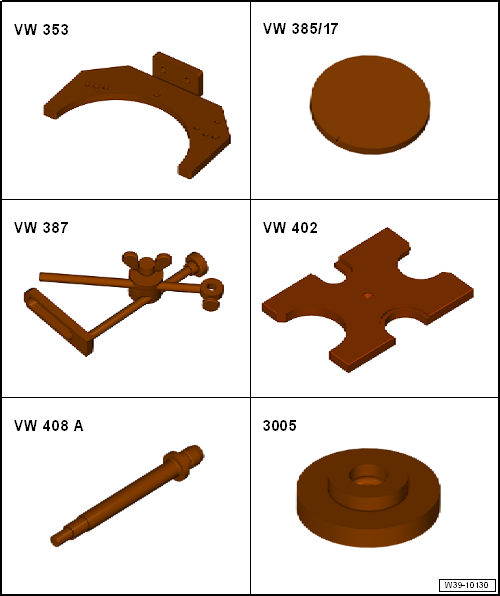

- Transmission Support -VW353-
- Measuring Set - Magnetic Plate - 50mm -VW 385/17-
- Dial Gauge Holder -VW387-
- Press Plate -VW402-
- Press Piece - Rod -VW408A-
- Press Piece - Multiple Use -3005-

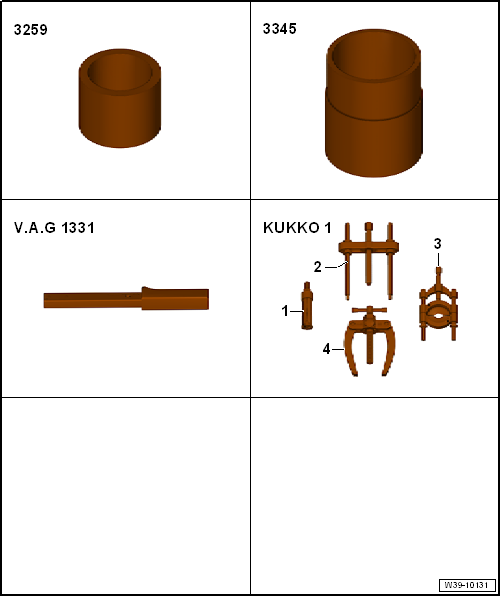

![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4162.png)
- Press Piece - Bushing -3259-
- Bearing Installer - Wheel Bearing -3345-
- Torque Wrench 1331 5-50Nm -VAG1331-
- -1-Puller - Kukko Internal - 46-56mm -21/7-
- -4-Puller - Kukko Counterstay -22/2-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4163.png)

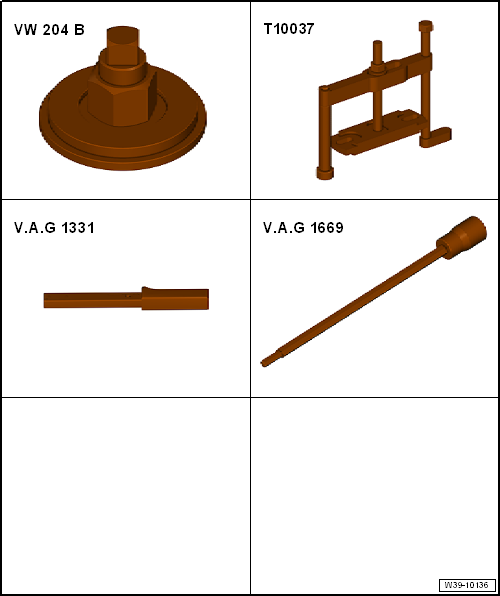

- Seal Installer - Crankshaft -VW204B-
- Puller - Flanged Shaft -T10037-
- Torque Wrench 1331 5-50Nm -VAG1331-
- Long Hex Socket -VAG1669-

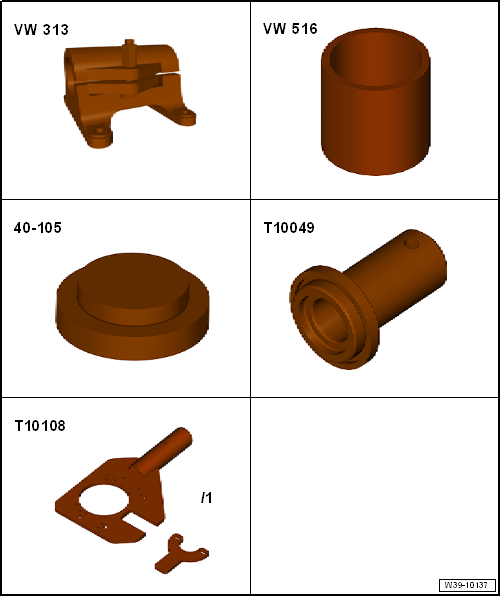

![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4164.png)
- Holding Fixture -VW313-
- Press Piece - 42mm -VW516-
- Press Piece - Multiple Use -40-105-
- Seal Installer - Flange Shaft -T10049-
- Gearbox Support -T10108-
- Gearbox Support -T10108/1-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4165.png)

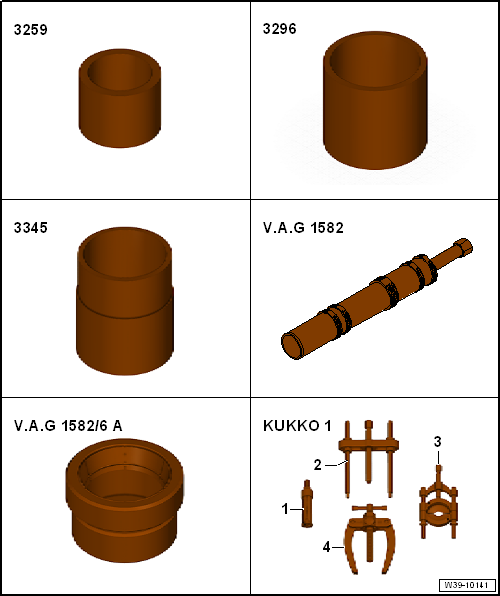

- Press Piece - Bushing -3259-
- Press Piece - Reverse Gear Syncro -3296-
- Bearing Installer - Wheel Bearing -3345-
- Puller - Taper Roller Bearing -VAG1582-
- Puller - Taper Roller Bearing - Adapter 6A -VAG1582/6A-
- -1-Puller - Kukko Internal - 46-56mm -21/7-
- -2-Puller - Kukko Puller - 60-150mm Width, 200mm Length -18/1-
- -3-Puller - Kukko Quick Action Separating Tool - 12-75mm -17/1-
- -4-Puller - Kukko Counterstay -22/2-

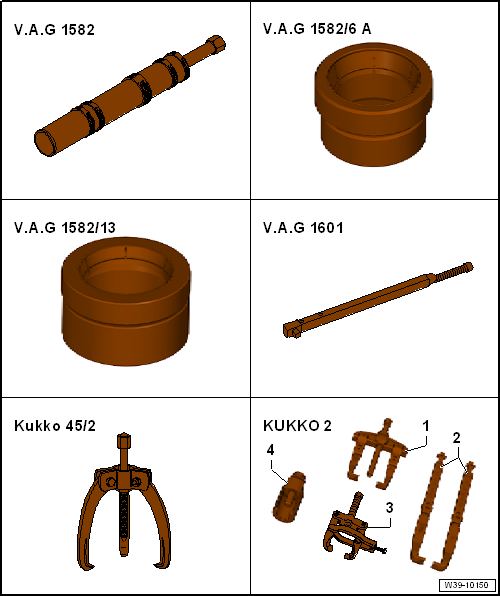

![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4166.png)
- Puller - Taper Roller Bearing -VAG1582- with a short sleeve
- Puller - Taper Roller Bearing - Adapter 6 -VAG1582/6- or Puller - Taper
Roller Bearing - Adapter 6A -VAG1582/6A-
- -1-Puller - Kukko 2-Arm - 70-180mm -20/10-
- Puller - Taper Roller Bearing - Adapter 13 -VAG1582/13-
- Torque Wrench 1601 -VAG1601-
- Three-Arm Puller -45/2-
![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4167.png)

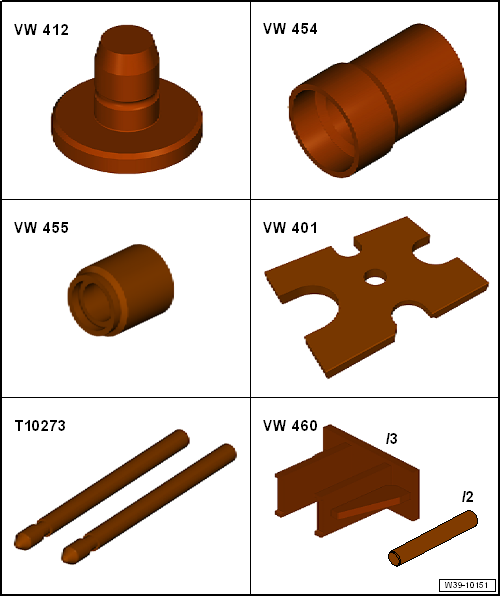

- Press Piece - Multiple Use -VW412-
- Press Piece - Multiple Use -VW454-
- Press Piece - Multiple Use -VW455-
- Press Plate -VW401-
- or Press Plate -VW402-
- Two M8 x 30 mm stud bolts or Guide Pins - M8 -T10273-
- Not needed: Pin -VW460/2-

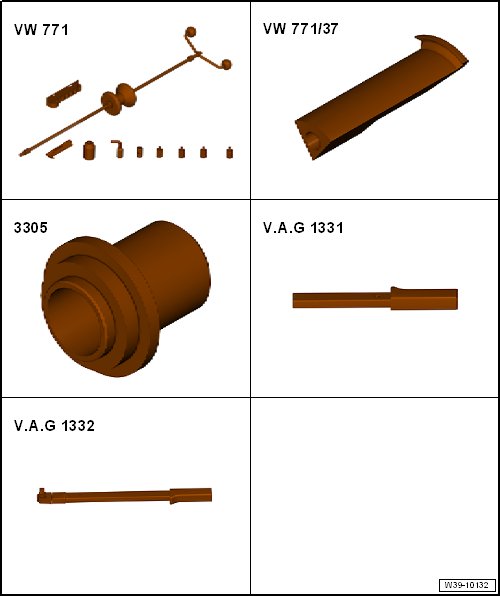

![Volswagen Tiguan. Special Tools](/images/manuals/466/vw_tiguan_special_tools_4168.png)
- Slide Hammer Set -VW771-
- Slide Hammer Set - Hook -VW771/37-
- Seal Installer - Flange Shaft -3305-
- Torque Wrench 1331 5-50Nm -VAG1331-
- Torque Wrench 1332 40-200Nm -VAG1332-
- Sealing Grease -G 052 128 A1-

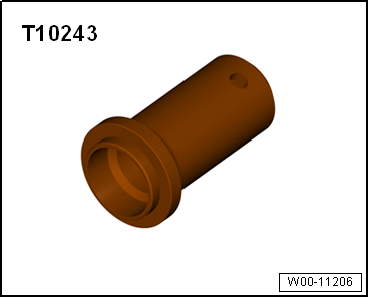

- Seal Installer - Bevel Box -T10243-
![Volswagen Tiguan. W00-11206](/images/manuals/466/vw_tiguan_special_tools_4169.png)

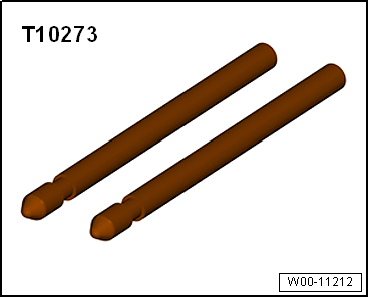

- Two M8 x 30 mm stud bolts or Guide Pins - M8 -T10273-
![Volswagen Tiguan. W00-11212](/images/manuals/466/vw_tiguan_special_tools_4170.png)

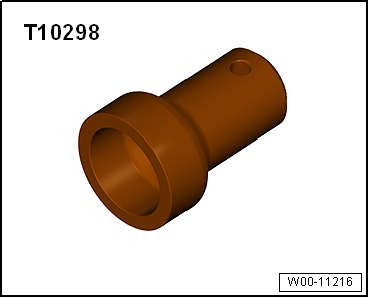

- Seal Installer - Bevel Box -T10298-
![Volswagen Tiguan. W00-11216](/images/manuals/466/vw_tiguan_special_tools_4171.png)
![Volswagen Tiguan. W00-11676](/images/manuals/466/vw_tiguan_special_tools_4172.png)

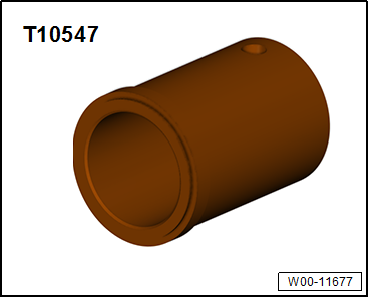

![Volswagen Tiguan. W00-11677](/images/manuals/466/vw_tiguan_special_tools_4173.png)

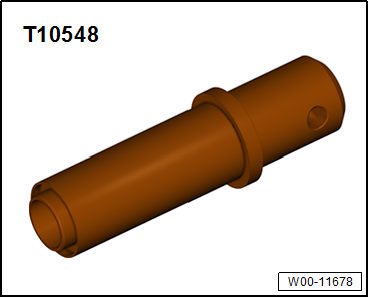

![Volswagen Tiguan. W00-11678](/images/manuals/466/vw_tiguan_special_tools_4174.png)

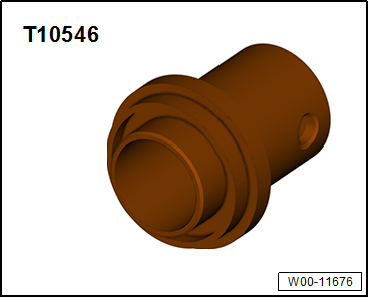

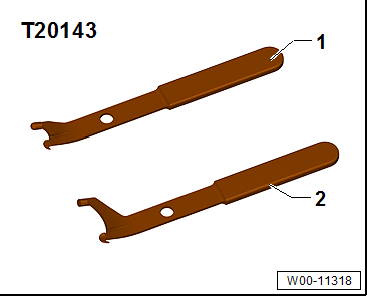

- Puller - Crankshaft/Power Steering Seal - Component 2 -T20143/2-
![Volswagen Tiguan. W00-11318](/images/manuals/466/vw_tiguan_special_tools_4175.png)

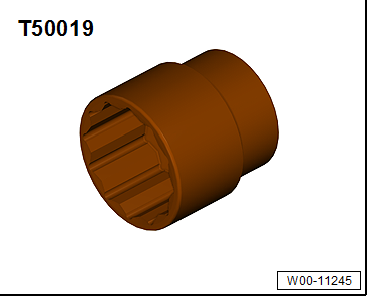

- Socket AF 34 mm -T50019-
- Sealing Grease -G 052 128 A1-
![Volswagen Tiguan. W00-11245](/images/manuals/466/vw_tiguan_special_tools_4176.png)

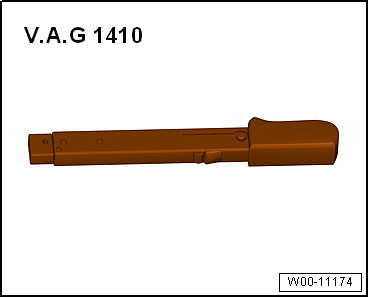

- Torque Wrench 1410 -VAG1410-
![Volswagen Tiguan. W00-11174](/images/manuals/466/vw_tiguan_special_tools_4177.png)

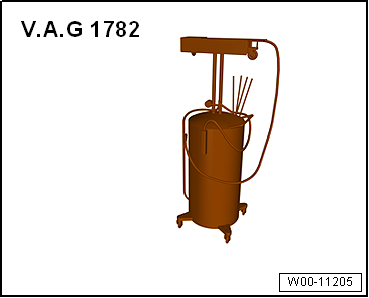

- Used Oil Collection and Extraction Unit -VAG1782-
![Volswagen Tiguan. W00-11205](/images/manuals/466/vw_tiguan_special_tools_4178.png)

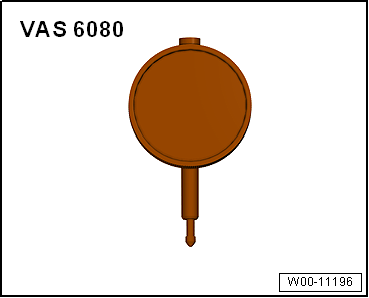

- Dial Indicator -VAS6080A-
- Drip Tray -VAG1306-
![Volswagen Tiguan. W00-11196](/images/manuals/466/vw_tiguan_special_tools_4179.png)

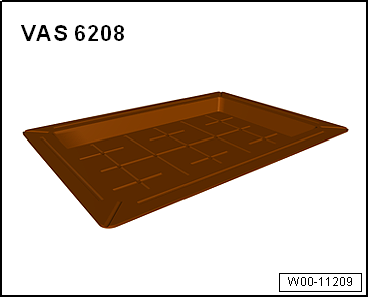

- or Shop Crane - Drip Tray -VAS6208-
![Volswagen Tiguan. W00-11209](/images/manuals/466/vw_tiguan_special_tools_4180.png)

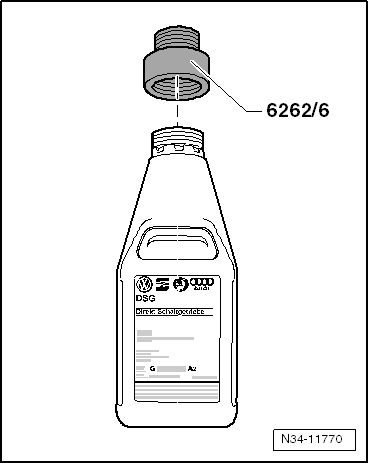

- It is necessary to use the Oil Filler - Adapter 6 -VAS6262/6- on some
oil containers.
![Volswagen Tiguan. N34-11770](/images/manuals/466/vw_tiguan_special_tools_4181.png)

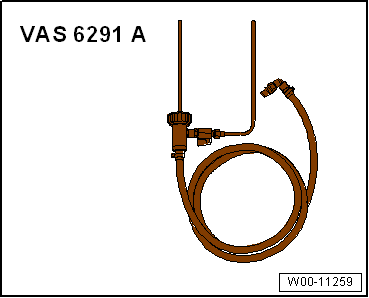

- Charging Device For Haldex Coupling 2 -VAS6291A-
![Volswagen Tiguan. W00-11259](/images/manuals/466/vw_tiguan_special_tools_4182.png)

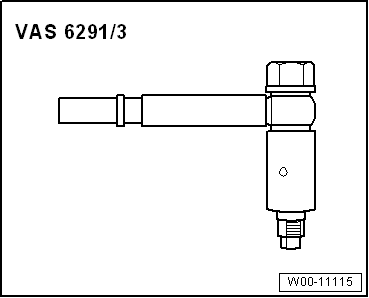

- Charging Device For Haldex Coupling 2 - Adapter 3 -VAS6291/3-
![Volswagen Tiguan. W00-11115](/images/manuals/466/vw_tiguan_special_tools_4183.png)

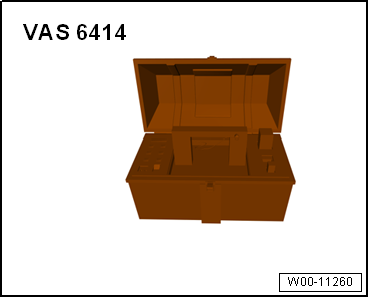

- Inductive Heater -VAS6414-
![Volswagen Tiguan. W00-11260](/images/manuals/466/vw_tiguan_special_tools_4184.png)

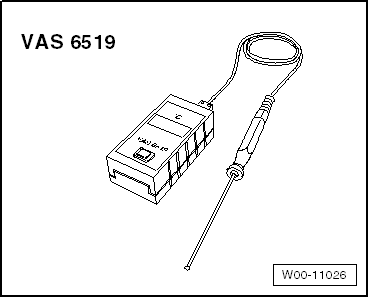

- Digital Thermometer -VAS6519-
![Volswagen Tiguan. W00-11026](/images/manuals/466/vw_tiguan_special_tools_4185.png)

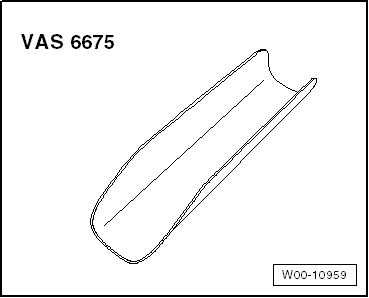

- Flexible Funnel -VAS6675-
![Volswagen Tiguan. W00-10959](/images/manuals/466/vw_tiguan_special_tools_4186.png)

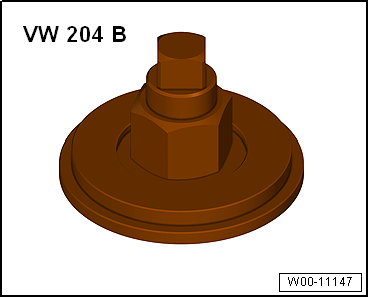

- Seal Installer - Crankshaft -VW204B-
![Volswagen Tiguan. W00-11147](/images/manuals/466/vw_tiguan_special_tools_4187.png)

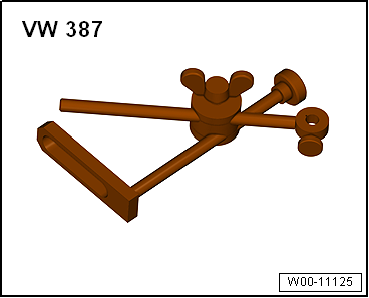

- Dial Gauge Holder -VW387-
![Volswagen Tiguan. W00-11125](/images/manuals/466/vw_tiguan_special_tools_4188.png)

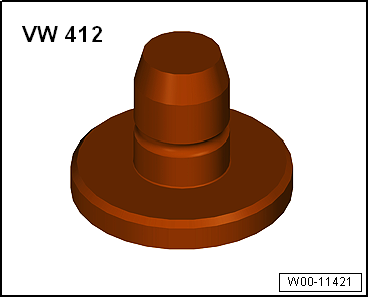

- Press Piece - Multiple Use -VW412-
![Volswagen Tiguan. W00-11421](/images/manuals/466/vw_tiguan_special_tools_4189.png)

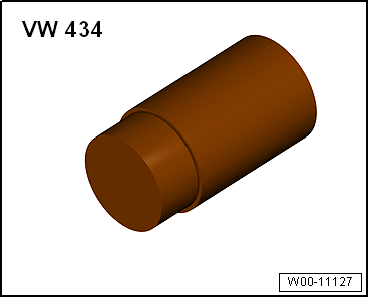

- Press Piece - Bushing -VW434-
![Volswagen Tiguan. W00-11127](/images/manuals/466/vw_tiguan_special_tools_4190.png)

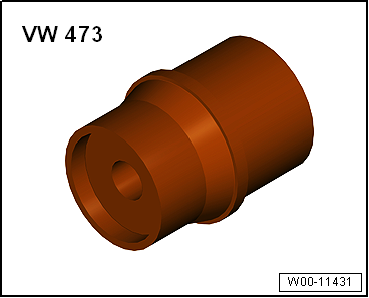

- Press Piece - Multiple Use -VW473-
![Volswagen Tiguan. W00-11431](/images/manuals/466/vw_tiguan_special_tools_4191.png)
- Only for seal in pinion housing.
![Volswagen Tiguan. W00-11128](/images/manuals/466/vw_tiguan_special_tools_4192.png)

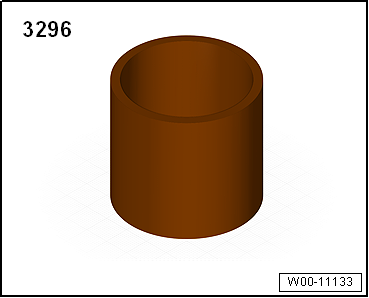

- Press Piece - Reverse Gear Syncro -3296-
- Drip Tray -VAG1306-
- or Shop Crane - Drip Tray - VAS6208-
- Sealing Grease -G 052 128 A1-
- 2 M10 x 30 bolts
- 4 M12 x 10 nuts

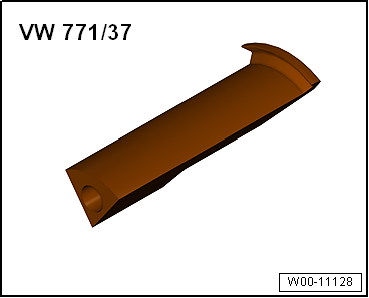

- Slide Hammer Set - Hook -VW771/37-
![Volswagen Tiguan. W00-11133](/images/manuals/466/vw_tiguan_special_tools_4193.png)
- Seal Installer - Crankshaft -VW204B-
![Volswagen Tiguan. W00-11147](/images/manuals/466/vw_tiguan_special_tools_4194.png)
- Dial Gauge Holder -VW387-
- Drip Tray -VAG1306-
- or Shop Crane - Drip Tray -VAS6208-
- 2 M10 x 30 bolts
- 4 M12 x 10 nuts
- Sealing Grease -G 052 128 A1-
![Volswagen Tiguan. W00-11125](/images/manuals/466/vw_tiguan_special_tools_4195.png)
- Puller - Kukko 2-Arm w/Side Clamp, 100mm Width, 100mm Length -204/2-
![Volswagen Tiguan. W00-11180](/images/manuals/466/vw_tiguan_special_tools_4196.png)

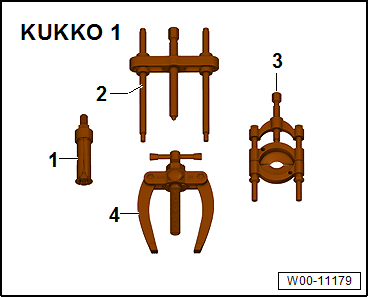

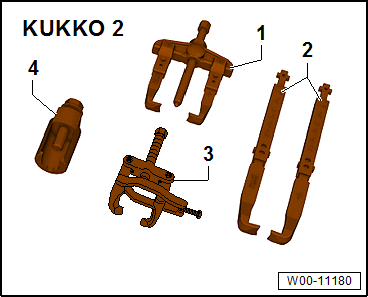

- -1-Internal Extractor, for example Puller - Kukko Internal - 28-37mm
-21/5-
![Volswagen Tiguan. W00-11179](/images/manuals/466/vw_tiguan_special_tools_4197.png)

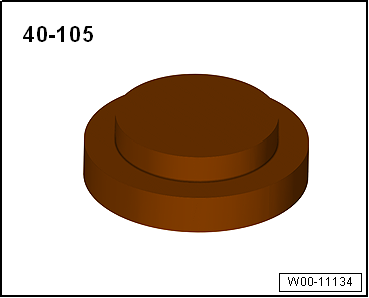

- Press Piece - Multiple Use -40-105-
![Volswagen Tiguan. W00-11134](/images/manuals/466/vw_tiguan_special_tools_4198.png)
