Volkswagen Tiguan Service and Repair Manual: Special Tools

Volswagen Tiguan. Special Tools

Special tools and workshop equipment required

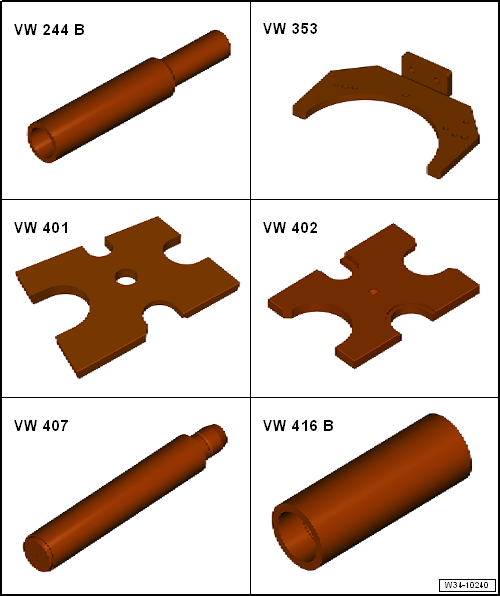

  • Bearing Driver - Multiple Use -VW244B-
  • Transmission Support -VW353-
  • Press Plate -VW401-
  • Press Plate -VW402-
  • Press Piece - Rod -VW407-
  • Press Piece - 37mm -VW416B-

Volswagen Tiguan. Special Tools

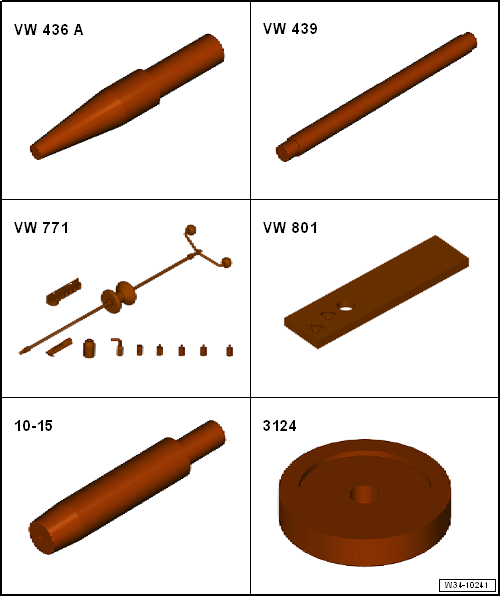

  • Guide Pin -VW436A-
  • Press Piece - Guide Pin -VW439-
  • Slide Hammer Set -VW771-
  • Crankshaft Holding Fixture -VW801-
  • Guide Pins -10-15-
  • Press Piece - Pivot Mount Bushing -3124-

Volswagen Tiguan. Special Tools

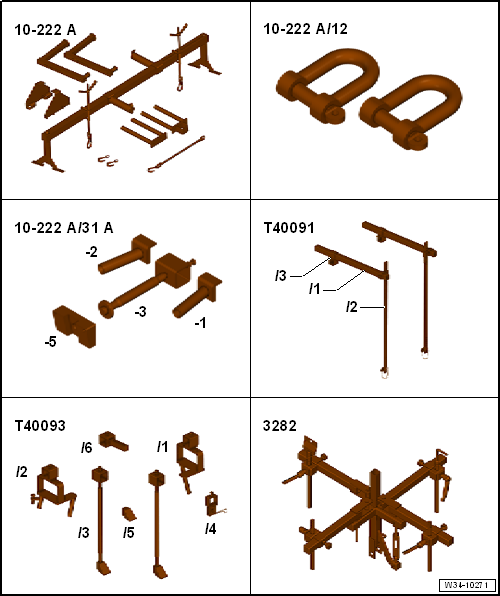

  • Engine Support Bridge -10-222A-
  • Engine/Gearbox Support Shackle (2 pc.) -10-222A/12-
  • Engine Support Bridge - Engine Support 31 - Adapter 1 -10-222A/31-1-
  • Engine Support Bridge - Engine Support 31 - Adapter 2 -10-222A/31-2-
  • Engine Support - Basic Set - Square Pipe -T40091/1-
  • Engine Support - Basic Set Movable Joint -T40091/3-
  • Engine Support Brackets -T40093/3- from Engine Support - Supplement Kit -T40093A-
  • Transmission Support -3282-

Volswagen Tiguan. Special Tools

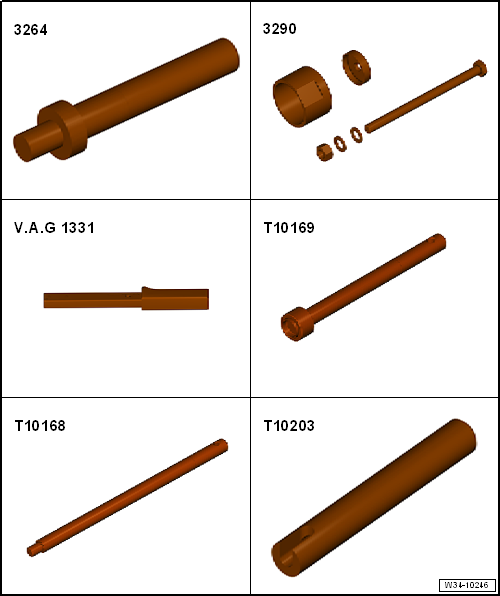

  • Bearing Installer - Crankshaft Pilot Bearing -3264-
  • Subframe Support Tool -3290-
  • Torque Wrench 1331 5-50Nm -VAG1331-
  • Bushing Driver - Selector Shaft -T10168-
  • Locking Sleeve Drift -T10169- or Locking Sleeve Drift -T10362-.
  • Breather Tube Tool -T10203-

Volswagen Tiguan. Special Tools

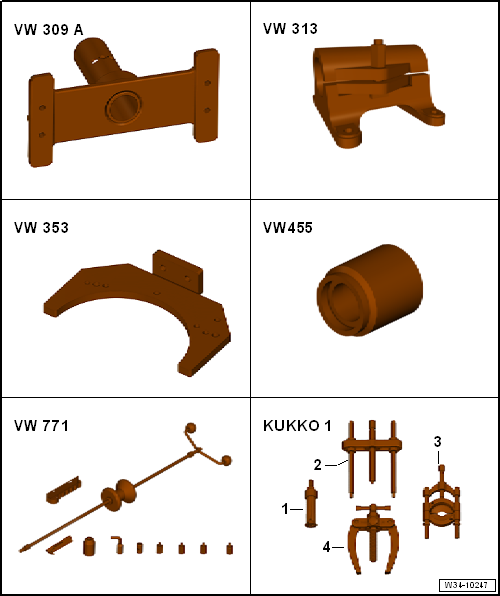

  • Holding Plate -VW309A-
  • or Holding Plate -VW309A-
  • Holding Fixture -VW313-
  • Transmission Support -VW353-
  • Press Piece - Multiple Use -VW455- or Press Piece - Front Wishbone -3160-
  • Slide Hammer Set -VW771-
  • -1-Puller - Kukko Internal - 12-16mm -21/01-
  • -3-Puller - Kukko Quick Action Separating Tool - 5-60mm -17/0-
  • -4-Puller - Kukko Counterstay -22/1-

Volswagen Tiguan. Special Tools

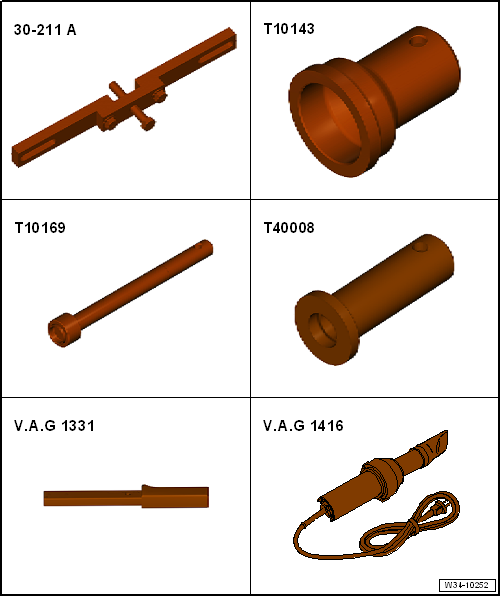

  • Bracket - Multiple Use -30-211A-
  • Seal Installer - Drive Flange -T10143- or Seal Installer - Output Shaft Oil Seal -T10180-
  • Locking Sleeve Drift -T10169-
  • or Locking Sleeve Drift -T10362-.
  • Seal Installer - Drive Axle -T40008-
  • Torque Wrench 1331 5-50Nm -VAG1331-
  • Hot Air Blower -VAG1416-

Volswagen Tiguan. Special Tools

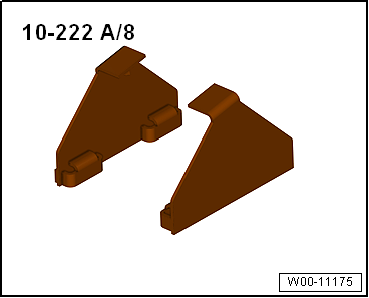

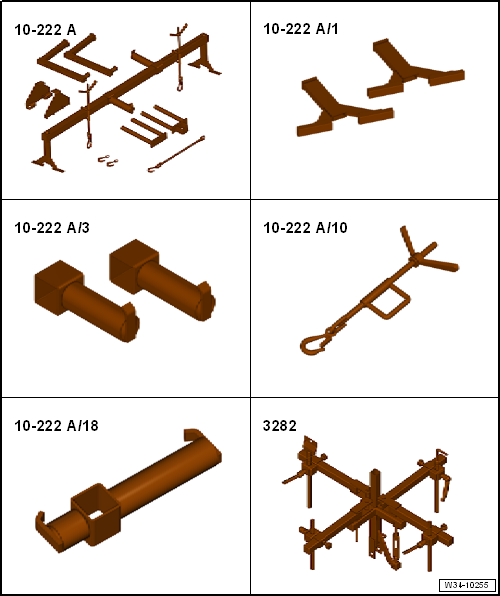

  • Golf convertible Engine Support Bridge - Engine Support Feet -10-222A/8-
  • Scirocco, CC and Passat Engine Support Bridge - Engine Bracket -10-222A/1-
  • Scirocco, CC and Passat Engine Support - Bracket w/Spindle and hook -10-222A/10-
  • Engine Support Bridge - Engine Support 3 -10-222A/3-
  • Engine Support Bridge -10-222A-
  • Engine Support Bridge - Engine Support 18 -10-222A/18-
  • Transmission Support -3282-

Volswagen Tiguan. Special Tools

  • Socket And Extended Bit -T10107-
  • or Socket And Extended Bit -T10107A-
  • Puller - Flanged Shaft -T10037-
  • Rear Wheel Bearing Kit - Piece 5 -3253/5-
  • Cover Cap -T10460-
  • Torque Wrench 1331 5-50Nm -VAG1331-
  • Drip Tray -VAG1306-
  • or Shop Crane - Drip Tray - VAS6208-

Volswagen Tiguan. Special Tools

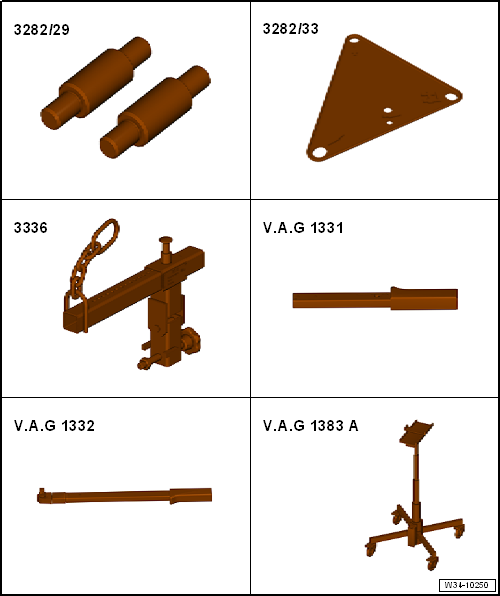

  • Transmission Support - Mounting Plate 33 -3282/33-
  • Transmission Support Elements (determine when mounting the Adjustment Plate on the Transmission Support)
  • Transmission Support Jig -3336- to transport the transmission.
  • Torque Wrench 1331 5-50Nm -VAG1331-
  • Torque Wrench 1332 40-200Nm -VAG1332-
  • Engine and Gearbox Jack -VAS6931-

Volswagen Tiguan. Special Tools

  • Golf convertible Engine Support Bridge - Engine Support Feet -10-222A/8-
  • Scirocco, CC and Passat Engine Support Bridge - Engine Bracket -10-222A/1-
  • Scirocco, CC and Passat Engine Support - Bracket w/Spindle and hook -10-222A/10-
  • Engine Support Bridge - Engine Support 3 -10-222A/3-
  • Engine Support Bridge -10-222A-
  • Engine Support Bridge - Engine Support 18 -10-222A/18-
  • Transmission Support -3282-

Volswagen Tiguan. Special Tools

Engine Support Bridge - Gearbox Bracket -T10346-

or Engine Support Device - Gearbox Bracket -T10346/1-

Engine Support Device -3300A-

Slide Hammer Set - Adapter 40 -VW771/40-

Hose Clamps - Up To 25 mm -3094-

Grease for Clutch Disc Shaft Splines -G 000 100-

For the correct grease. Refer to the Parts Catalog.

M6 x 20 collar bolt

M6 x 80 collar bolt

M10 x 20 hex collar bolt

Volswagen Tiguan. Special Tools

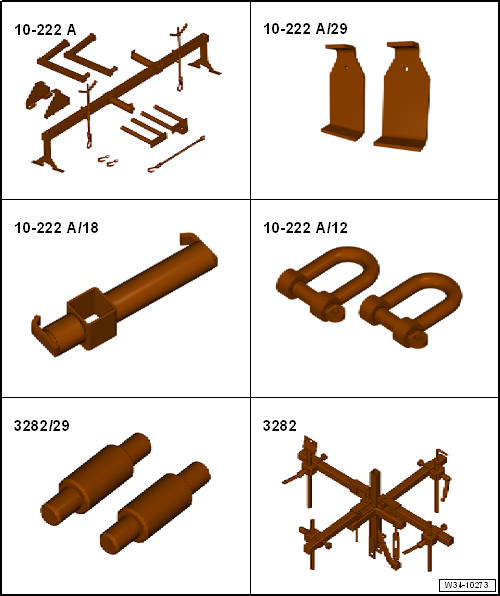

  • Engine Support Bridge -10-222A-
  • Engine Support Bridge - Gearbox Adapter -10-222A/29-
  • Engine Support Bridge - Engine Support 18 -10-222A/18-
  • If necessary Engine/Gearbox Support Shackle -10-222A/12-
  • Transmission Support - Pins 29 -3282/29-
  • Transmission Support -3282-

Volswagen Tiguan. Special Tools

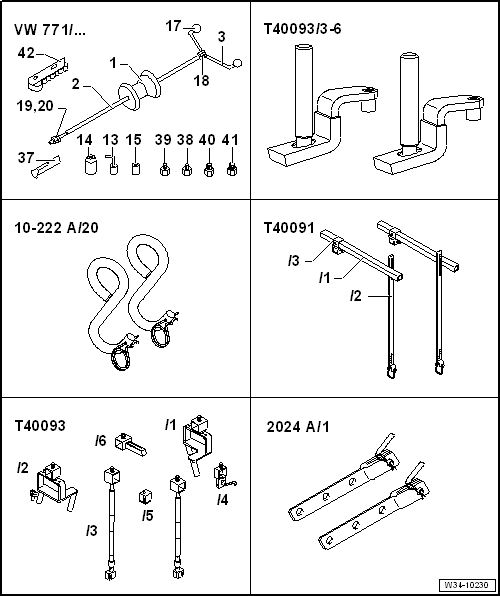

  • Slide Hammer Set - Adapter 40 -VW771/40-
  • Engine Support Brackets -T40093/3-6- (quantity 2)
  • Engine Support - Bracket w/Spindle and hook -10-222A/20-
  • Engine Support - Basic Set Square Pipe -T40091/1- (quantity 2)
  • Engine Support - Basic Set Movable Joint -T40091/3- (quantity 2)
  • Engine Support - Supplement Kit Spindle -T40093/3- (quantity 2) from the Engine Support - Supplement Kit -T40093A-
  • Engine Sling - Engine Bracket -2024A/1- from Engine Sling -2024A-
  • Grease for Clutch Disc Shaft Splines -G 000 100-
  • For the correct grease. Refer to the Parts Catalog.

Volswagen Tiguan. Special Tools

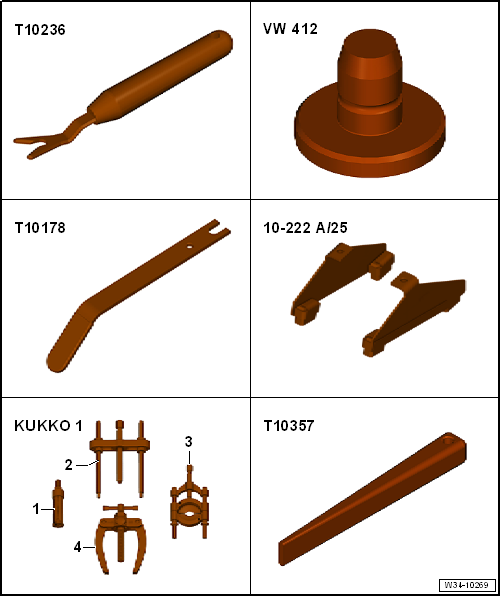

  • Window Release Tool -T10236-
  • Press Piece - Multiple Use -VW412-
  • Over-Center Spring Assembly Tool -T10178-
  • Engine Support Bridge - Engine Support 25 -10-222A/25-
  • 2 = Counter-Support for example, from -Kukko- model line 16
  • Wedge -T10357-

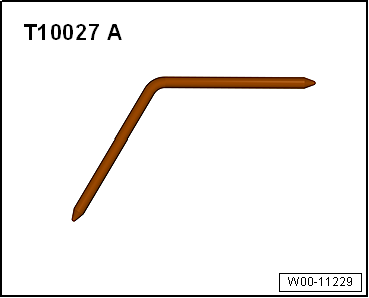

  • Connecting Pin -T10027A-

Volswagen Tiguan. W00-11229

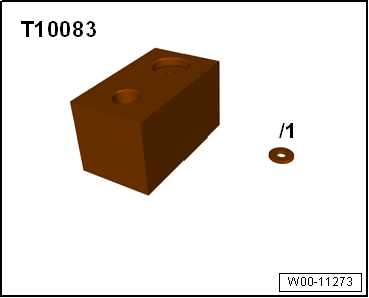

  • Press Piece - Block -T10083-

Volswagen Tiguan. W00-11273

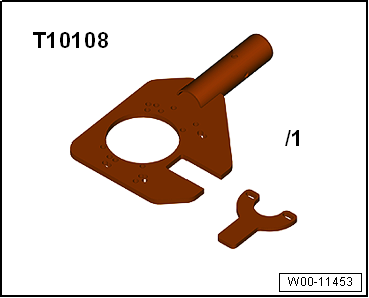

  • Gearbox Support -T10108-

Volswagen Tiguan. W00-11453

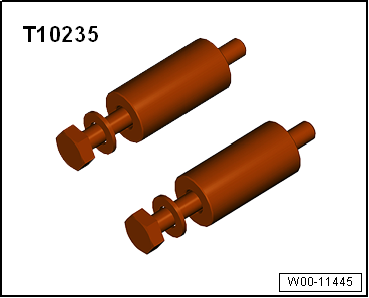

  • Holding Fixture - Gearbox Adapter -T10235-

Volswagen Tiguan. W00-11445

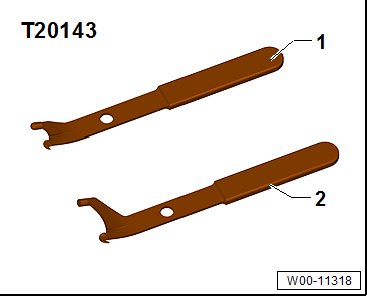

  • Puller - Crankshaft/Power Steering Seal -T20143/1-

Volswagen Tiguan. W00-11318

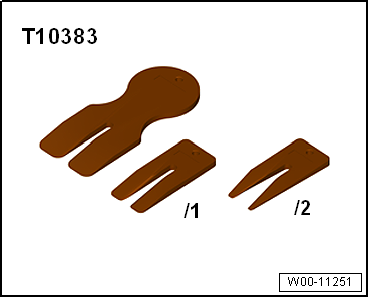

  • Wedge Set -T10383-

Volswagen Tiguan. W00-11251

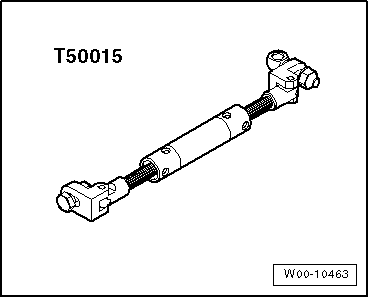

  • Engine Support -T50015-

Volswagen Tiguan. W00-10463

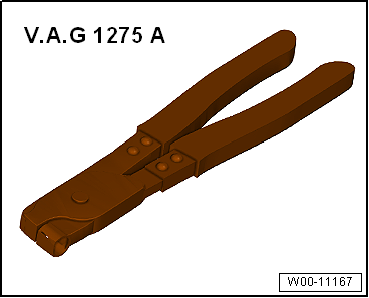

  • Hose Clip Pliers - VAG1275A-

Volswagen Tiguan. W00-11167

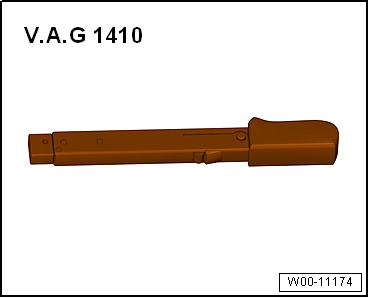

  • Torque Wrench 1410 - VAG1410-

Volswagen Tiguan. W00-11174

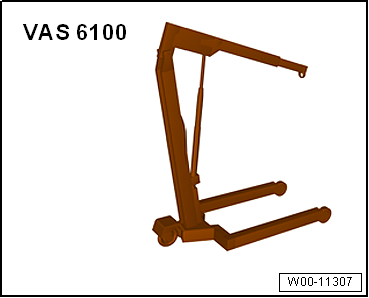

  • Shop Crane -VAS6100-

Volswagen Tiguan. W00-11307

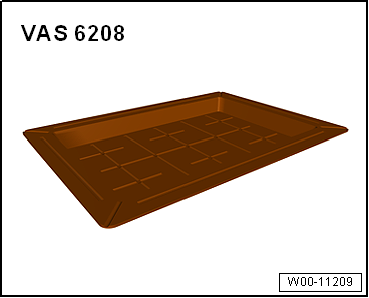

  • Drip Tray -VAG1306-

Volswagen Tiguan. W00-11209

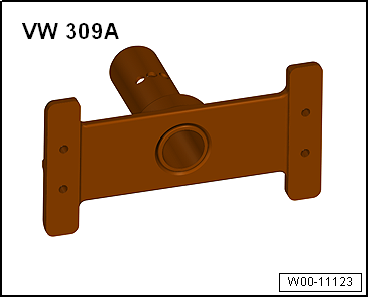

  • Holding Plate -VW309A-

Volswagen Tiguan. W00-11123

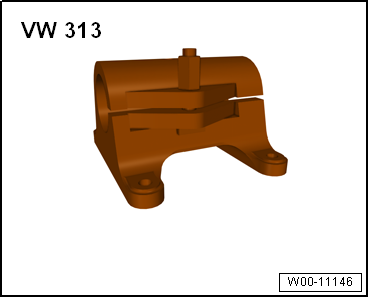

  • Holding Fixture -VW313-

Volswagen Tiguan. W00-11146

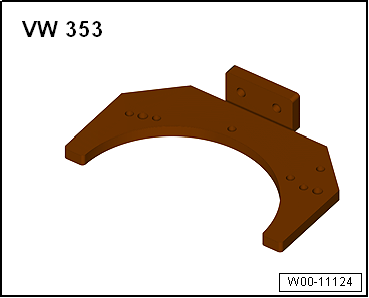

  • Transmission Support -VW353-

Volswagen Tiguan. W00-11124

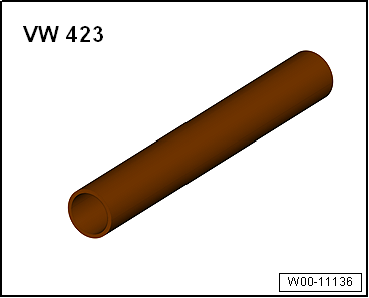

  • Press Piece - Shift Rod/Alternator -VW423-

Volswagen Tiguan. W00-11136

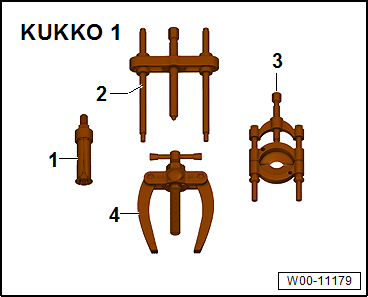

  • -1-Puller - Kukko Internal - 14-19mm -21/2-

Volswagen Tiguan. W00-11179

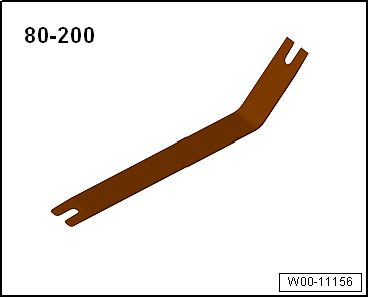

  • Pry Lever -80-200-
  • Sealing Grease. Refer to the Parts Catalog.
  • or Holding Plate - VW309A-

Volswagen Tiguan. W00-11156

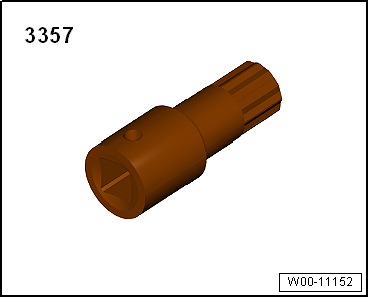

  • For oil filler plug with multi-point fitting Triple Square Socket Driver -3357-.
  • or Socket And Extended Bit -T10107A-
  • Torque Wrench 1331 5-50Nm -VAG1331-
  • -1-Puller - Kukko Internal - 20-30mm -21/4-
  • -4-Puller - Kukko Counterstay -22/2-
  • Thread adaptor from Puller - Kukko Counterstay -22/1-

Volswagen Tiguan. W00-11152

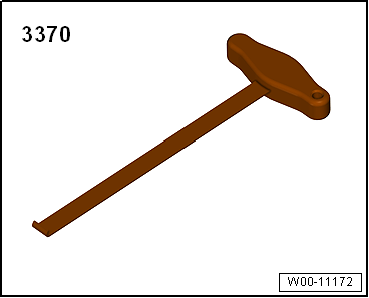

  • Backrest Panel Tool -3370-

Volswagen Tiguan. W00-11172

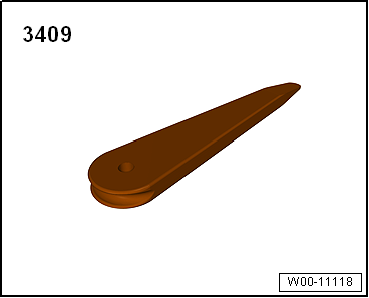

  • Trim Removal Wedge -3409-

Volswagen Tiguan. W00-11118
