Volkswagen Tiguan Service and Repair Manual: Speaker Systems

General Information

Note

  • In conjunction with "RCD 300" radio, the front sound system consists of a 3-way system with one bass speaker, one mid-range and one treble speaker respectively in left and right front doors. In vehicle rear, an optional 2-way system with one bass speaker and one treble speaker respectively can be installed in each door.
  • With the "RNS 510", front and rear speakers are always installed.
  • Front and rear speakers are always installed in conjunction with "RCD 500" radio system.
  • All speakers are passive speakers.

Front Bass Speaker, Removing and Installing

Removing

Note

Removing and installing on the left and right sides is identical.

Do the following before starting the procedure:

  • Turn off the ignition and all electric consumers and remove the key.

To replace a speaker, the door trim must be removed first.

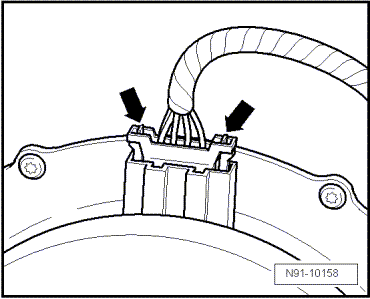

  • Release locking mechanism of harness connector -arrows- and disconnect it.

Volswagen Tiguan. N91-10158

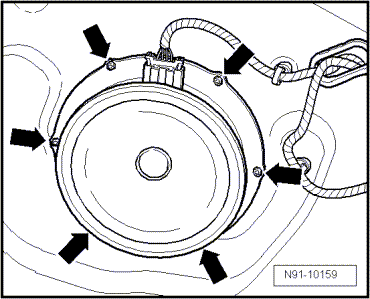

  • Drill (<4.5 mm) out the rivets -arrows- and remove the speaker.

Volswagen Tiguan. N91-10159

Note

  • To prevent corrosion, be sure to remove all metal shavings from inside the door.
  • If paint on door frame is damaged during drilling, touch-up immediately.

Installing

  • When installing, secure new speaker with special pop rivets (note replacement part number!)

Install in reverse order of removal.

Rear Bass Speaker, 4-Door, Removing and Installing

Removing

Note

Removing and installing on the left and right sides is identical.

Do the following before starting the procedure:

  • Turn off the ignition and all electric consumers and remove the key.

To replace a speaker, the door trim must be removed first.

  • Release locking mechanism of harness connector -arrows- and disconnect it.

Volswagen Tiguan. N91-10158

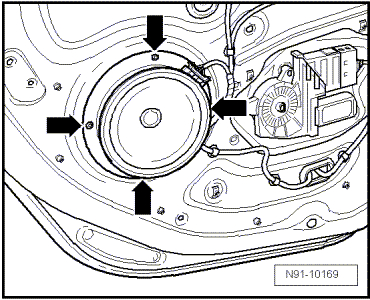

  • Drill out the rivets -arrows- and remove the speaker.

Volswagen Tiguan. N91-10169

Note

  • To prevent corrosion, be sure remove all metal shavings from inside the door.
  • If paint on door frame is damaged during drilling, touch-up immediately.

Installing

  • When installing, secure new speaker with special pop rivets (note replacement part number!)

Install in reverse order of removal.

Rear Bass Speaker, 2-Door, Removing and Installing

Removing

Note

Removing and installing on the left and right sides is identical.

Do the following before starting the procedure:

  • Turn off the ignition and all electric consumers and remove the key.

Remove the side trim panel first and then replace the speaker.

Note

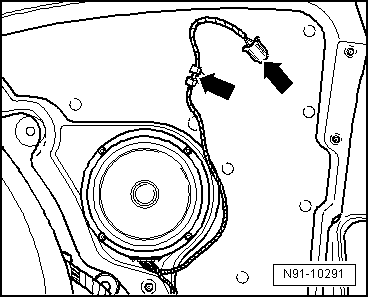

When removing side trim, treble speaker may break away from trim due to a short wire connector from wire mount to speaker connector -arrows-. Therefore, carefully remove side trim.

  • Disconnect connector at treble speaker and then remove side trim.

Volswagen Tiguan. N91-10291

  • Release locking mechanism of harness connector -arrows- and disconnect it.

Volswagen Tiguan. N91-10158

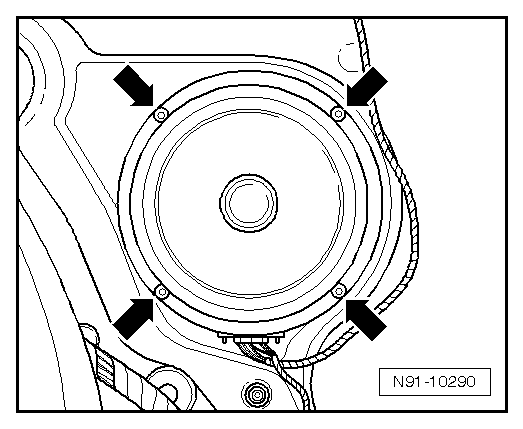

  • Drill out the rivets -arrows- and remove the speaker.

Volswagen Tiguan. N91-10290

Note

  • To prevent corrosion, ensure that all metal particles from drilling are removed from inside the side panel.
  • If paint on door frame is damaged during drilling, touch-up immediately.

Installing

  • When installing, secure new speaker with special pop rivets (note replacement part number!)

Install in reverse order of removal.

Front Midrange Speaker, Removing and Installing

Removing

Note

  • Mid-range speakers are secured to door trim from behind.
  • Removing and installing on the left and right sides is identical.

Do the following before starting the procedure:

  • Turn off the ignition and all electric consumers and remove the key.

To replace a speaker, the door trim must be removed first.

  • Release locking mechanism of harness connector -arrows- and disconnect it.

Volswagen Tiguan. N91-10158

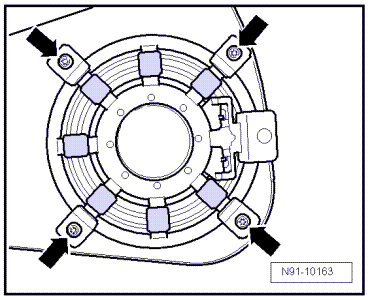

  • Remove the screws from the speaker and remove the speaker.

Volswagen Tiguan. N91-10163

Installing

Install in reverse order of removal.

Front Treble Speaker, Removing and Installing

Removing

Note

  • Treble speaker is installed in mirror triangle at each front door.
  • Removing and installing on the left and right sides is identical.

Do the following before starting the procedure:

  • Turn off the ignition and all electric consumers and remove the key.

To replace a speaker, the door trim must be removed first.

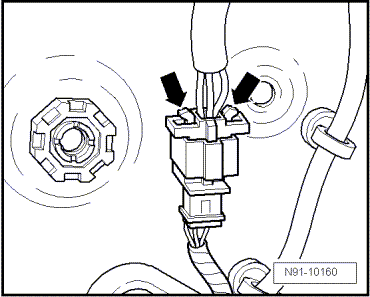

  • Disconnect harness connector in wire to speaker -arrows-.

Volswagen Tiguan. N91-10160

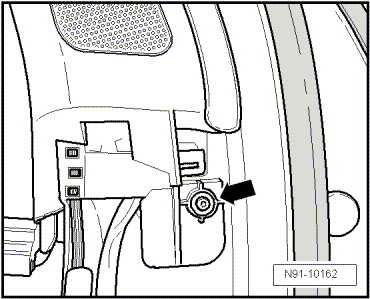

  • Remove the screw -arrow-.
  • Unclip trim together with speaker.

Volswagen Tiguan. N91-10162

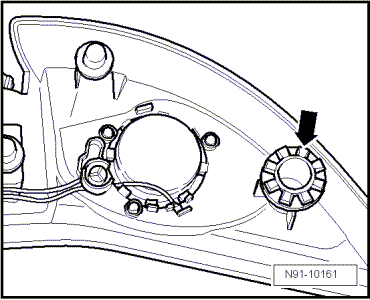

  • If the plastic clip -arrow- remains on the trim after removing, then remove it and insert it in door at the installation location designed for it.

Volswagen Tiguan. N91-10161

Otherwise trim of mirror triangle can no longer be installed correctly.

Speaker can only be replaced in conjunction with trim of mirror triangle.

Installing

Install in reverse order of removal.

Rear Treble Speaker, Removing and Installing, 2-Door Vehicles

Removing

Note

  • Removing and installing on the left and right sides is identical.
  • After removing treble speaker, speaker trim must always be replaced.
  • Treble speakers are secured to side trim from behind.

Do the following before starting the procedure:

  • Turn off the ignition and all electric consumers and remove the key.

Remove the side trim panel first and then replace the speaker.

Volswagen Tiguan. N91-10291

Note

When removing side trim, treble speaker may break away from trim due to a short wire connector from wire mount to speaker connector -arrows-. Therefore, carefully remove side trim.

  • Disconnect connector at treble speaker and then remove side trim.

Installing

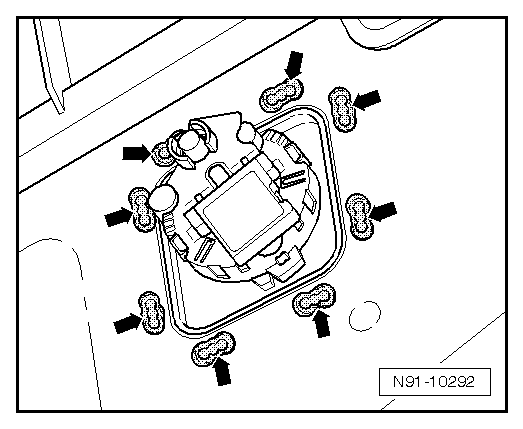

  • Insert speaker trim in door trim.
  • Place speaker on speaker trim plastic clips.
  • Heat-seal the plastic clips using a soldering iron -arrows-.

Volswagen Tiguan. N91-10292

Install in reverse order of removal.
