Volkswagen Tiguan Service and Repair Manual: Underbody Protection

Volkswagen Tiguan Service and Repair Manual / Paint / Underbody Protection

Underbody Protection Protected Areas, Body Overview with Different Coating Densities

Note

  • The underbody protection (stone impact protection) is to be repaired according to its original conditions in appearance and layer thickness.
  • Water drain holes must remain free.
  • All threaded pins, weld nuts with M-threads, and all other pins and contact surfaces for the assembly must be functional after applying the underbody protection.

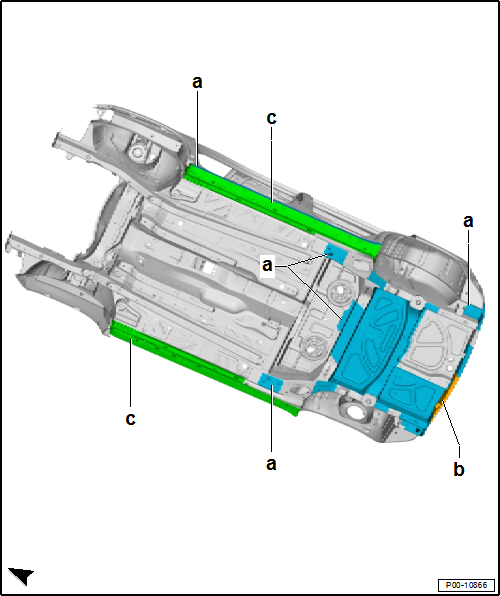

Underbody Protection Overview

Volswagen Tiguan. Underbody Protection Overview

  1. Underbody Protection
    • Layer Thickness 0.5 mm
  2. Underbody Protection
    • Layer thickness 0.8 mm
  3. Underbody Protection
    • Layer Thickness 1.2 mm

Underbody Protection Protected Areas

Note

  • The underbody protection (stone impact protection) is to be repaired according to its original conditions in appearance and layer thickness.
  • Water drain holes must remain free.
  • All threaded pins, weld nuts with M-threads, and all other pins and contact surfaces for the assembly must be functional after applying the underbody protection.

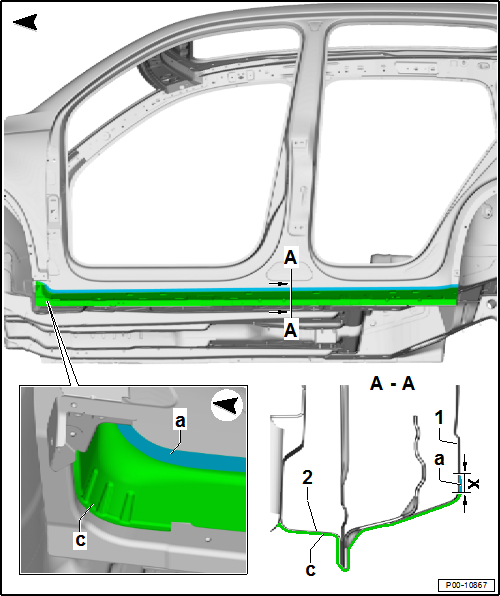

Side Sill Underbody Protection

Left side shown, right side is a mirror image

Volswagen Tiguan. Side Sill Underbody Protection

  1. Underbody Protection
    • Layer Thickness 0.5 mm
  2. Underbody Protection
    • Layer Thickness 1.2 mm
  • Dimension -x-
    • 10 mm
    • Runout of underbody protection with 1.2 mm to 0.5mm layer thickness
  1. Outer Side Sill
  2. Inner Side Sill

Note

  • The underbody protection (stone impact protection) is to be repaired according to its original conditions in appearance and layer thickness.
  • Water drain holes must remain free.
  • All threaded pins, weld nuts with M-threads, and all other pins and contact surfaces for the assembly must be functional after applying the underbody protection.

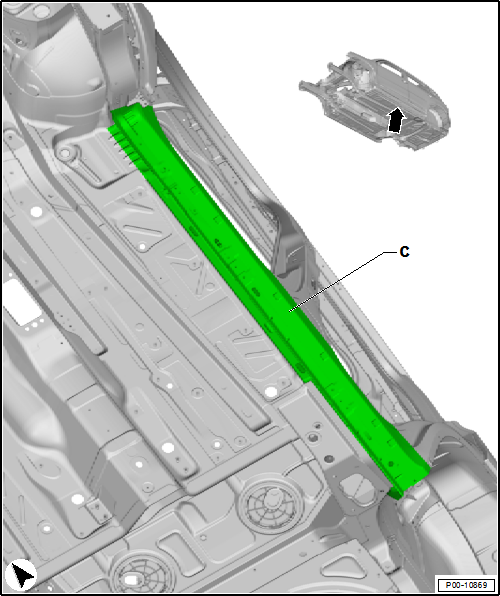

Side Sill Underbody Protection on Underbody

Left side shown, right side is a mirror image

Volswagen Tiguan. Side Sill Underbody Protection on Underbody

  1. Underbody Protection
    • Layer Thickness 1.2 mm

Note

  • The underbody protection (stone impact protection) is to be repaired according to its original conditions in appearance and layer thickness.
  • Water drain holes must remain free.
  • All threaded pins, weld nuts with M-threads, and all other pins and contact surfaces for the assembly must be functional after applying the underbody protection.

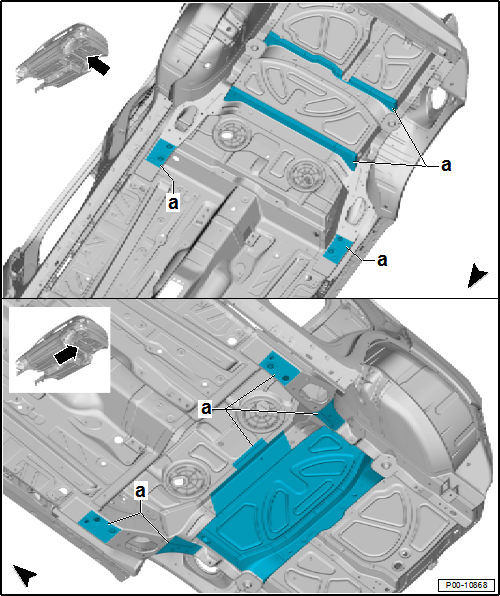

Center Underbody Protection

Volswagen Tiguan. Center Underbody Protection

  1. Underbody Protection
    • Layer Thickness 0.5 mm

Note

  • The underbody protection (stone impact protection) is to be repaired according to its original conditions in appearance and layer thickness.
  • Water drain holes must remain free.
  • All threaded pins, weld nuts with M-threads, and all other pins and contact surfaces for the assembly must be functional after applying the underbody protection.

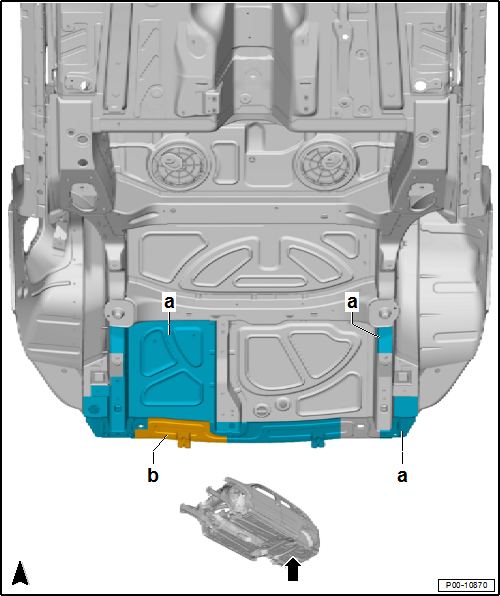

Rear Underbody Protection

Volswagen Tiguan. Rear Underbody Protection

  1. Underbody Protection
    • Layer Thickness 0.5 mm
  2. Underbody Protection
    • Layer thickness 0.8 mm
    Seam Sealing, Body Rear
    Note When repairing, seam sealing is to be replicated according to its original conditions in appearance and layer thickness. Sealing seams near attachments to be installed must be applied smooth ...

    Cavity Sealing
    Cavity Sealing, Body General View Note The displayed areas are cavity-sealed and must be sealed again after completing the repair work. Cavity Sealing General View Cavity Sealing, Body Front Note T ...
