Volkswagen Tiguan Service and Repair Manual: Two-Part HS Vario Filler
Definition:
- Two-Part HS Vario Filler -LGF 786 004 A4-, gray
Product Description
The two-part vario filler is a high-quality, variable VOC compliant,
acrylic-based two-part HS filler.
Properties:
- Can be used as sanding filler and as wet-in-wet filler
- Use with HS and VHS hardeners
- Has good insulation properties, even with thermoplastic old plastic
- Very nice paint finish
Application Instructions
Base Surface
Suitable base surfaces:
- Sheet steel that has been cleaned, sanded and primed with Two-Part Wash
Primer -LHV 043 000 A2- or One-Part Wash Primer -LVM 044 007/171 A2-,
galvanized/electrolytically zinced sheet steel or soft aluminum
- Fine or non-sanded, thoroughly cleaned, original factory primer.
- Cleaned and sanded, galvanized/electrolytically zinced sheet steel or
soft aluminum
- Sanded factory paint or old paint (including thermoplastic coatings)
- Surfaces prepared with two-part polyester products and then sanded very
fine.
- Cleaned and sanded UP-GF surfaces, free of separating agents

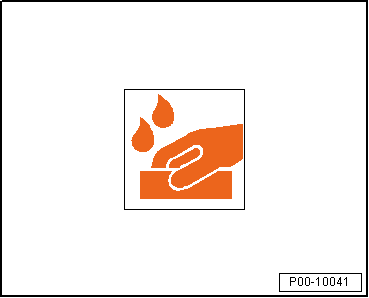

Pre-treatment of base surfaces:

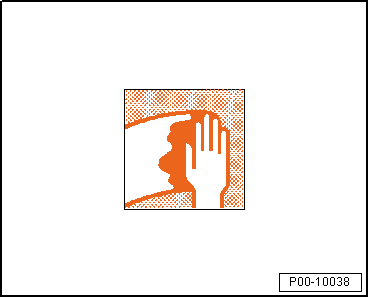

- Carefully clean using Silicone Remover -LVM 020 000 A5- or Silicone
Remover, Long -LVM 020 100 A5-.
- Use a suitable cleaning agent before reworking to ensure a clean and
residue-free surface.
Use with Intermediate Sanding

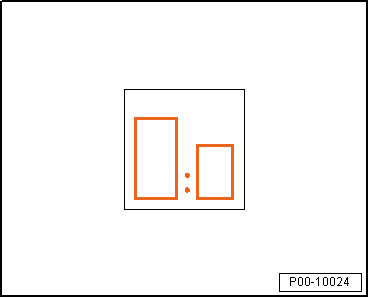

Mixture ratio:
5:1 by volume with:
- Two-Part VHS Hardener -LHA 009 051 A2-/-LVM 009 051 A5-
- Two-Part VHS Hardener, Long -LHA 009 052 A2-/-LHA 009 052 A3-
- Two-Part VHS Hardener, Extra Long -LHA 009 053 A2-
Mixture ratio:
3:1 by volume with:
- Two-Part HS Hardener, Short -LHA 021 004 A3-
- Two-Part HS Hardener -LHA 009 041 A3-
- Two-Part HS Hardener, Long -LHA 009 047 A3-
- Two-Part HS Hardener, Extra Long -LHA 009 048 A3-

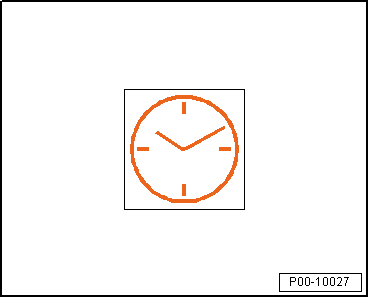

Processing time/pot life:
- Ready to spray 30 to 60 minutes at +20 ºC (68 ºF) (depending on the
hardener used)
Thinner:
- Two-Part Thinner -LVE 009 001 A5-
- Two-Part Thinner, Long -LVM 009 300 A2-
- Two-Part Thinner, Plus -LHA 014 000 A5-
- Two-Part Thinner, Special -LVM 009 200 A2/A5-

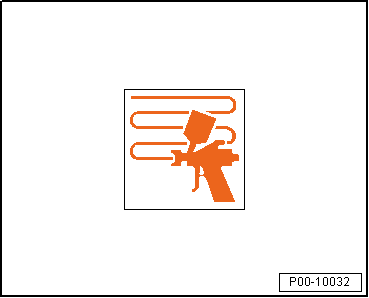

Application type "coat"

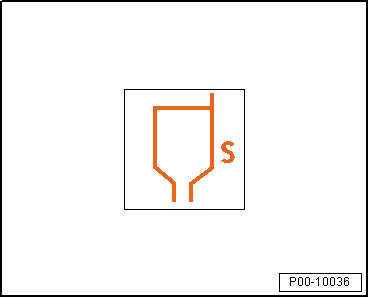

- Processing viscosity 4 mm for +20 ºC (68 ºF), German Industry
Standardization 53211
Processing viscosity 4 mm gravity feed spraygun "Compliant" and "HVLP":
DIN 4 mm: 20 to 25 seconds
Adding 10 to 15 % HS hardener or 10 to 20 % VHS hardener at +20 ºC (68 ºF)
material temperature.

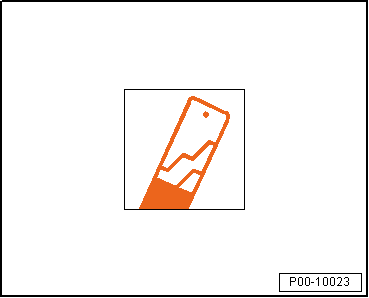

- Use a measuring stick to mix when pouring in the hardener.
- Set spray nozzle (see manufacturer's information): "Compliant" 1.4 to
1.8 mm.
- Set spray nozzle (see manufacturer's information): "HVLP" 1.6 to 1.9 mm.
- Set spray pressure (see manufacturer's information): "Compliant" to 1.5
to 3.0 bar.
- Set atomizing pressure (see manufacturer's information): "HVLP" 0.7 bar.
- Two spray applications are required to get a dry layer thickness of
between 50 and 80 um.
- Three spray applications are required to get a dry layer thickness of
between 100 and 120 um.
- The recommended dry layer thickness is between 50 and 120 um.
Drying with intermediate sanding

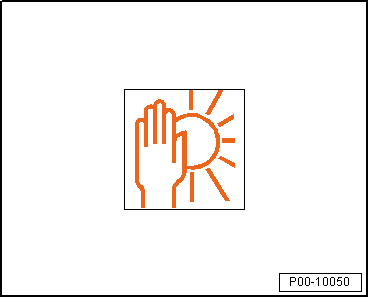

Air dry at +20 ºC (68 ºF) room temperature, can be sanded overnight
Final drying time with forced drying is a minimum of 5 to 10 minutes.
Forced drying at +60 ºC (68 ºF) object temperature to 80 um for 20 to 30
minutes and over 80 um for 40 to 45 minutes

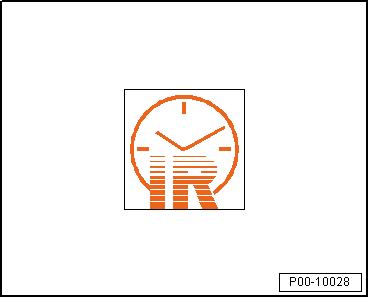

Final drying time for IR drying is a minimum of 5 to 10 minutes.
IR drying (depending on layer thickness) with medium-wave heater for 10 to 20
minutes and short-wave heater for 10 minutes
Further Processing

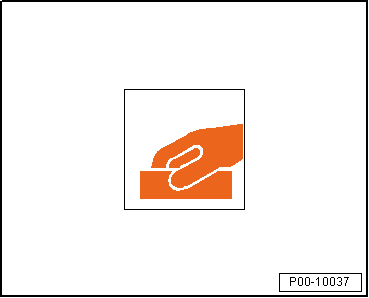

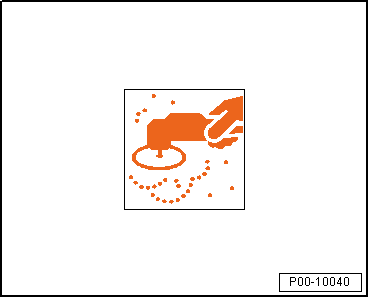

- Dry-sand with rotary sander and dust extraction. P400-500 grit sandpaper
- Wet-sand with P800-1000 grit sandpaper
Rework for Intermediate Sanding
Can be painted over with:
- Water-based base paint and two-part HS clear coat
- Two-Part HS Top Coat
Use as "wet-in-wet" Filler
Mixture ratio:
5:1 by volume with:
- Two-Part VHS Hardener -LHA 009 051 A2-/-LVM 009 051 A5-
- Two-Part VHS Hardener, Long -LHA 009 052 A2-/-LHA 009 052 A3-
- Two-Part VHS Hardener, Extra Long -LHA 009 053 A2-
Mixture ratio:
3:1 by volume with:
- Two-Part HS Hardener, Short -LHA 021 004 A3-
- Two-Part HS Hardener -LHA 009 041 A3-
- Two-Part HS Hardener, Long -LHA 009 047 A3-
- Two-Part HS Hardener, Extra Long -LHA 009 048 A3-
Processing time/pot life:
- Ready to spray 30 to 60 minutes at +20 ºC (68 ºF) (depending on the
hardener used)
Thinner:
- Two-Part Thinner -LVE 009 001 A5-
- Two-Part Thinner, Long -LVM 009 300 A2-
- Two-Part Thinner, Plus -LHA 014 000 A5-
- Two-Part Thinner, Special -LVM 009 200 A2/A5-
Application type "coat"
- Processing viscosity 4 mm for +20 ºC, (68 ºF) German Industry
Standardization 53211
Processing viscosity 4 mm gravity feed spraygun "Compliant" and "HVLP":
DIN 4 mm: 16 to 18 seconds
Adding 20 to 25 % HS hardener or 30 % VHS hardener at +20 ºC (68 ºF) material
temperature
- Use a measuring stick to mix when pouring in the hardener.
- Set spray nozzle (see manufacturer's information): "Compliant" 1.2 to
1.4 mm.
- Set spray nozzle (see manufacturer's information): "HVLP" 1.3 to 1.5 mm.
- Set spray pressure (see manufacturer's information): "Compliant" to 2.0
to 2.5 bar.
- Set atomizing pressure (see manufacturer's information): "HVLP" 0.7 bar.
- The recommended dry layer thickness is between 25 and 30 um. 1 to 2
spray applications are required to get this dry layer thickness.
"Wet-in-wet" Use
Ventilation time before applying top coat at +20 ºC (68 ºF) room temperature:
- 15 to 20 minutes up to a maximum of 90 minutes for two-part HS top coat
- 25 to 30 minutes up to a maximum of 90 minutes for water-based base
paint
- 30 to 35 minutes up to a maximum of 90 minutes for Aqua premium
water-based base paint
Reworking as "wet-in-wet" Filler
Can be painted over with:
- Water-based base paint and two-part HS clear coat
- Two-Part HS Top Coat
Special Instructions
Elastification for rigid and semi-rigid plastics:
- The base material must first be mixed with 15 % Elastic Additive -ALZ
011 001-. 3:1 mixing ratio for VHS hardener and 20% thinner, 2:1 mixing
ratio for HS hardener with 20 % thinner.
- Any faults in the base surface can be filled with two-part polyester
filling paste. After drying and intermediate sanding, insulate the filler
patches with two-part HS vario filler.
- In order to achieve the best surface finish for vehicle painting, we
recommend the filler be sanded after it dries over night.
- Do not use the wet-in-wet process on thermoplastic factory paint, and if
possible let the filler air-dry overnight before sanding it.
- When air drying, a minimum of +15 ºC (59 ºF) is recommended.
Caution
Allow for a ventilation time of 30 to 40 minutes before applying the base
paint/two-part top coat series.

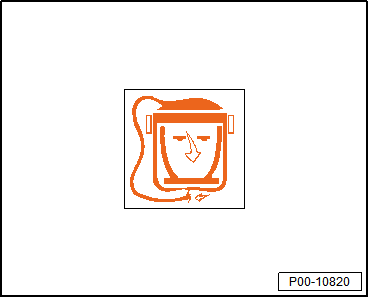

Personal Protective Equipment:
- Note the safety data sheets
- Wear the personal protective equipment during application
Characteristics
Delivery Viscosity |
Thixotropic |
Flashpoint: |
above 23 ºC (73.4 ºF) |
VOC value: 2004/42/IIB(c)(540)540 |
The EU limit for this product
(product category IIB.b) in ready-to-use form is a maximum of 540 g/L
volatile organic compounds. The VOC value of this product in
ready-to-use form is a maximum of 540 g/L. |
Storage
The guaranteed shelf life is 24 months from production date. Use no later
than the date indicated on the label and store in original container at +20 ºC
(68 ºF).
Definition:
Two-Part HS Premium Filler -LVM 013 171 A4-, dark gray
Two-Part HS Premium Filler -LGF 013 007 A4-, light gray
Two-Part HS Premium Filler -LGF 013 100 A4-, white
Two-Part HS Premium F ...
See More:
Volkswagen Tiguan Service and Repair Manual > Hood, Lids: Hood
Tools
Special tools and workshop equipment required
Torque Wrench 1331 5-50Nm -VAG1331-
Pry Lever -80 - 200-
Overview - Hood
Hood
Removing and installing.
Adjusting.
Adjusting Buffer
Left and right, each 2 pieces
Insulation
Removing and installing.
Hinge
Removing and ...
