Volkswagen Tiguan Owners Manual: Warning and indicator lights

Volkswagen Tiguan Owners Manual / While driving / Driver assistance systems / Cruise control system (CCS) / Warning and indicator lights

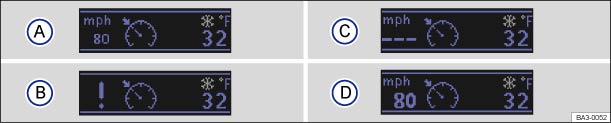

Fig. 145 In the instrument cluster display: Cruise control status indications.

Read and follow the introductory information and safety information first⇒

Introduction to the subject

Display

Different cruise control versions are available. The stored speed is shown in the instrument cluster display on some equipment versions.

Status⇒ Fig. 145

Cruise control temporarily deactivated. Stored speed in small numbers.
System malfunction. See an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.
Cruise control activated. No speed stored in memory.
Cruise control is active. Stored speed in large numbers.

Lights up	Possible cause
	Cruise control is regulating the speed.

When the ignition is switched on, several warning and indicator lights come on briefly for a function check. They go out after a few seconds.

Warning

Failure to heed warning lights and instrument cluster text messages can cause the vehicle to break down in traffic and result in a collision and serious personal injury.

Never ignore warning lights or text WARNINGS.

Always stop the vehicle as soon as it is safe to do so.

Note

Failure to heed warning lights or text WARNINGS can result in vehicle damage.
