Volkswagen Tiguan Service and Repair Manual: Subframe Mount

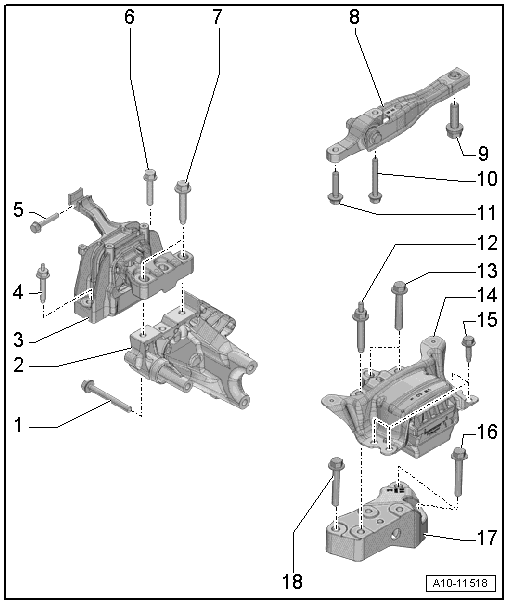

Overview - Subframe Mount
- Bolt
- Engine Support
- Engine Mount
- Bolt
- Bolt
- Bolt
- Bolt
- Pendulum Support
- Bolt
- For pendulum support to subframe
- Bolt
- For pendulum support to transmission
- Transmission with threaded insert.
- Bolt
- For pendulum support to transmission
- Transmission with threaded insert.
- Bolt
- 60 Nm + 90º additional turn
- Replace after removing
- Tightening sequence.
- For transmission mount to transmission bracket
- Bolt
- 60 Nm + 90º additional turn
- Replace after removing
- Tightening sequence.
- For transmission mount to transmission bracket
- Quantity: 2
- Transmission Mount
- Bolt
- Bolt
- 60 Nm + 90º additional turn
- Replace after removing
- Tightening sequence.
- For transmission bracket to transmission
- Quantity: 2
- Transmission Bracket
- Bolt
- 60 Nm + 90º additional turn
- Replace after removing
- Tightening sequence.
- For transmission bracket to transmission

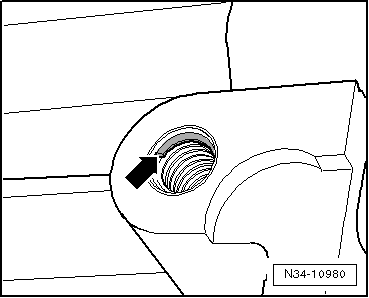

Transmission with Threaded Insert (for Example "Heli Coil") for Attaching the Pendulum Support
Note
- There are threaded inserts (for example "Heli Coil") in the pendulum support fastening holes.
- Characteristic: there is a collar on the first thread -arrow-.
- Please pay attention to the corresponding bolts and the tightening specification.

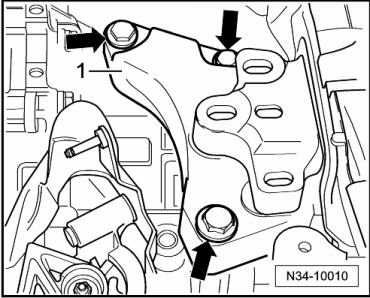

Transmission Bracket -1- to Transmission.
- Replace the bolts -arrows-.
- Tighten the bolts -arrows- hand-tight.
- Tighten the bolts -arrows-.

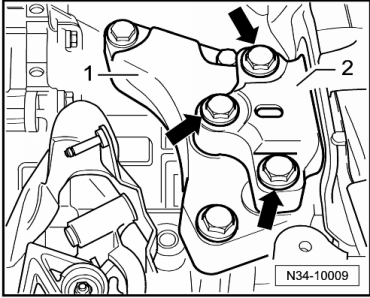

Attaching the Transmission Mount -2- to the Transmission Bracket -1-
- Replace the bolts -arrows-.
- Tighten the bolts -arrows- hand-tight.
- Tighten the bolts -arrows-.
