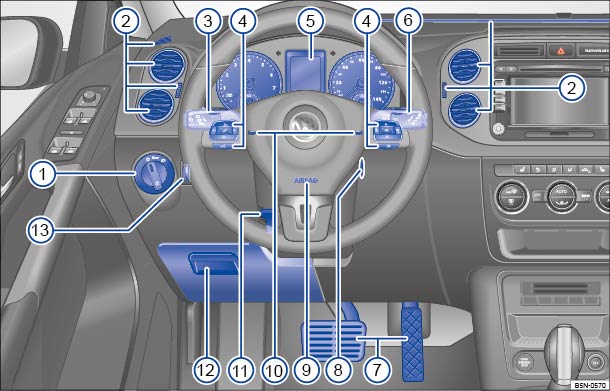

Fig. 5 Driver side overview.
Key to ⇒ Fig. 5 :
Headlight switch
⇒ Lights
Lever for ⇒ Lights
Multi-function steering wheel controls ⇒ Volkswagen Information System
Instrument cluster:
Windshield wiper and washer lever ⇒ Windshield wiper and washer
Volkswagen Tiguan Service and Repair Manual > Subframe, Final Drive, AWD: Subframe, Servicing, through 05/2012
Special tools and workshop equipment required
Tensioning Strap -T10038-
Locating Pins -T10096-
Hydraulic Press - Rear Subframe Bushing Tool Kit -T10263-
Engine and Gearbox Jack -VAS6931-
Hydraulic Press -VAS6178- with Bearing Installer - Wheel Hub/Bearing
Kit- Pressure Head -T10205/13-
Pneu ...
