Volkswagen Tiguan Service and Repair Manual: Battery, Removing and Installing

General Information

WARNING

Risk of injury. Pay attention to all warnings and safety precautions.

Replacing the battery on a vehicle with the Start/Stop System:

Vehicles with the Start/Stop System have a special starter battery due to the increased load on the cycles.

When replacing the correct starter battery, pay attention to the replacement part identification. Refer to the Parts Catalog. Starter batteries for vehicles with the Start/Stop System have "AGM" (Absorbent Glass Mat) or "EFB" (Enhanced Flooded Battery) marked on them.

Note

  • If the vehicle has a battery sensor, then it is necessary to perform the battery setting parameters after installing a new battery.
  • The technical values for the new battery will be transmitted to the battery monitoring when the battery setting parameters is performed.
  • Perform battery setting parameters.

Overview - Battery

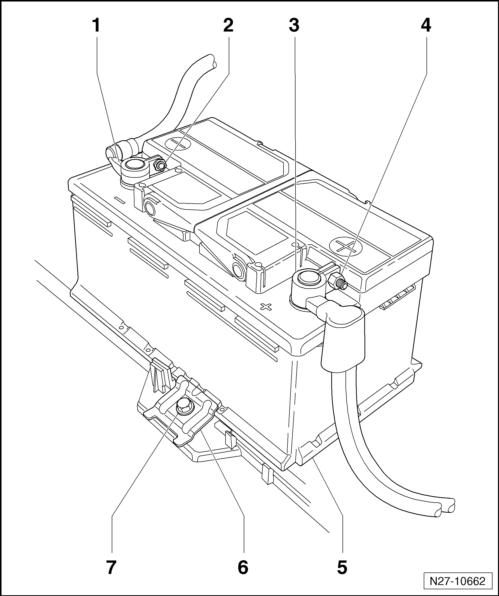

Volswagen Tiguan. Overview - Battery

  1. Battery Ground Cable Terminal Clamp
    • Pay attention to the information regarding the threaded connection for the battery terminals.
    • In vehicles with a Start/Stop System, the Battery Monitoring Control Module -J367- (battery sensor) is additionally installed here. Observe the instructions.
  2. Ground Cable Battery Terminal Nut
    • 6 Nm
    • M6
  3. Battery Positive Cable Terminal Clamp
    • Pay attention to the information regarding the threaded connection for the battery terminals.
  4. Positive Cable Battery Terminal Nut
    • 6 Nm
    • M6
  5. Battery
    • Vehicles with Start/Stop System: Follow the instructions for replacing the battery.
    • Vehicles with 4-cylinder engine, removing and installing.
  6. Clamping Plate
    • Note the assembly information
  7. Clamping Plate Bolt
    • 20 Nm
    • M8 x 35

Battery, Removing and Installing

Battery Parameterization

The technical values of a new battery are transmitted to the battery monitoring when the battery parameterization via the Vehicle Diagnostic Tester is performed after a new battery is installed.
    Battery, Disconnecting and Connecting
    Battery Battery Types All instructions and information on this chapter can be found in the "Electrical Equipment General Information" repair manual. A link to this repair manual is currently not pos ...

    Generator
    General Information Note Check the generator. Refer to Wiring Diagrams, Fault Finding Electrical Systems and Installed Locations. Generator on A Vehicle with the Start/Stop System: Up to now, the gen ...
