Volkswagen Tiguan Service and Repair Manual: Two-Part Fine Filling Paste, Flexible

Definition:

  • Two-Part Fine Filling Paste, Flexible -LSP 787 100 A1-

Product Description

The Two-Part Fine Filling Paste, Flexible -LSP 787 100 A1- is a two component filler paste with high filling characteristics.

The product does not collapse and has excellent adhesion on a multiple base surfaces.

This filling paste is used especially for plastics:

Other Application Areas:

  • For repair of plastic exterior body components where surface is damaged with material removed (scratches, holes, rips), without being broken through
  • For filling of KU-plastics, that were previously repaired with the Plastic Repair Set -D 007 700-.
  • For filling over a repair area to eliminate a mark

Application Instructions

Properties

  • Constant, fine, creamy consistency
  • High filling characteristics - no collapsing
  • Hardens quickly
  • Sands well
  • Good adhesion on metal and plastic

Base Surface

Suitable base surfaces:

  • Steel
  • Galvanized sheet steel
  • Aluminum
  • On all cleaned and sanded plastics in vehicle area
  • Fiberglass-reinforced plastics (UP-GF)
  • Well-sanded old paint or factory paint
  • Hardened two-part filler/two-part primers

Pre-treatment of base surfaces:

  • Remove any grease and sand the surface.
  • Bare metallic base surfaces are to be insulated with Two-Part Wash Primer -LHV 043 000 A2- and then filled with Two-Part HS Performance Filler. Sand the filler after drying.
  • With UP-GF underbodies, clean components of any residual agents and sand the surface.

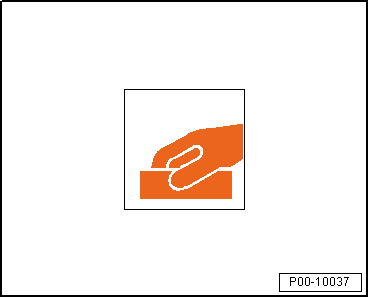

Volswagen Tiguan. P00-10037

  • Clean once more using the Silicone Remover, Long -LVM 020 100 A5- or Silicone Remover -LVM 020 000 A5- before reworking.

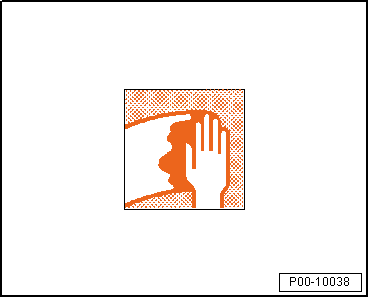

Volswagen Tiguan. P00-10038

Reworking

Recommended structure:

  • Fine filling paste by itself.
  • Rework fine filling paste with Two-Part Fine Filling Paste -LSP 784 002 A2- or with Two-Part Spray Filling Paste -ALN 788 007- (except on galvanized steel).
  • Prime bare spots and filled areas with Two-Part Wash Primer -LHV 043 000 A2- and then fill with Two-Part HS Performance Filler.

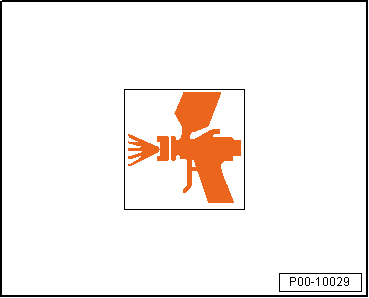

Volswagen Tiguan. P00-10029

  • Then paint over with the top coat.

Note

Before filling, dry-sand the entire surface with P280-400 sandpaper.

Application Table

Mixing ratio 2 to 3 % by weight
Add hardener Two-Part Hardener -LVM 018 00 A1-
Pot life 2 to 4 minutes at +20 ºC (68 ºF)
Drying time (air drying at +20 ºC (68 ºF) room temperature) 20 to 30 minutes
Infrared drying:
  short-wave approximately three minutes (at 50 % output)
  middle-wave approximately five minutes
Sanding compatibility Preliminary sanding Final sanding
  Wet as fine filling paste P180 grit as fine filling paste P320-P360 grit
  Dry as filling paste P80 grit, as filling paste P120 grit as filling paste P120-P240 grit, as fine filling paste P280 grit

Caution

This filling paste may not be applied to PVB (acid-hardening) adhesive primers or one-part primers (for example, synthetic resin).

Application on thermoplastic or elastic coatings is also not possible. In these cases, only apply filler paste to bare steel.

Note

  • Before filling, dry-sand the entire surface with P280-320 sandpaper.
  • Avoid using excessive hardener paste, to prevent it from bleeding through, especially on daylight colors and light metallic colors.
  • Reaction temperature at least +5 ºC (41 ºF).
