Volkswagen Tiguan Service and Repair Manual: Two-Part Fine Filling Paste

Definition:

  • Two-Part Fine Filling Paste -LSP 784 002 A2-

Product Description

The two-part fine filling paste is a very fine thixotropic polyester filling paste.

This filling paste is suitable for small repairs.

Application Instructions

Properties

  • Fine and non-porous
  • Removes easily
  • Sands easily
  • High elasticity for touching up synthetic surfaces

Base Surface

Suitable base surfaces:

  • Steel
  • Aluminum
  • Glass fiber reinforced plastics
  • Old paint and factory paint
  • Hardened two-part filler/two-part primers
  • Plastic parts glaze-primed with Two-Part Plastic Adhesive Filler -LKF 696 009 A2-/-LKF 696 040 A2- or Adhesion Promoter -ALO 822 000 10-
  • Primed surfaces with two-part polyester filling paste.

Caution

This filling paste may not be applied to PVB (acid-hardening) adhesive primers or one-part primers (for example, synthetic resin).

Application on thermoplastic or elastic coatings is also not possible. In these cases, only apply filler paste to bare steel.

Pre-treatment of base surfaces:

  • Remove any grease and sand the surface.
  • Bare metallic base surfaces are to be insulated with Two-Part Wash Primer -LHV 043 000 A2- and then filled with Two-Part HS Performance Filler. Sand the filler after drying.
  • With UP-GF underbodies, clean components of any residual agents and sand the surface.

Volswagen Tiguan. P00-10037

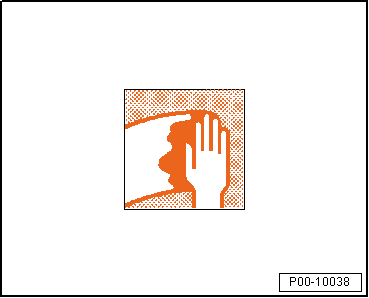

  • Use a suitable cleaning agent before reworking to ensure a clean and residue-free surface.

Volswagen Tiguan. P00-10038

Processing

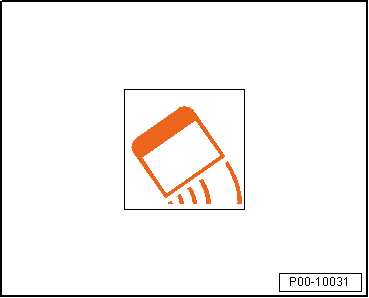

Application type:

  • Apply filling paste.

Volswagen Tiguan. P00-10031

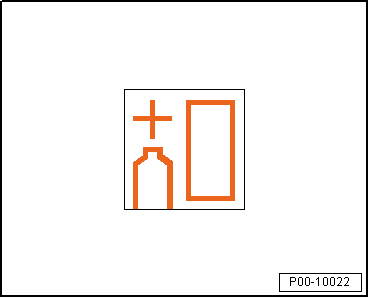

Mixture ratio:

  • Add 2 to 3 % by weight Two-Part Hardener -LVM 018 000 A1/A2- or, especially when dealing with high temperatures, Two-Part Hardener, Long -LVM 018 100 A2-.

Volswagen Tiguan. P00-10022

Note

Avoid using excessive hardener paste, to prevent it from bleeding through, especially on daylight colors and light metallic colors.

Curing Time:

  • At +20 ºC (68 ºF) room temperature for about three to five minutes.

Reaction Temperature:

  • Minimum +5 ºC (41 ºF)

Drying

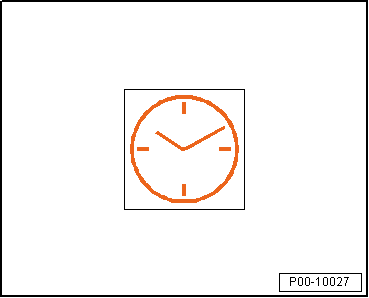

Air Drying:

  • At +20 ºC (68 ºF) room temperature for about 20 to 30 minutes.

Volswagen Tiguan. P00-10027

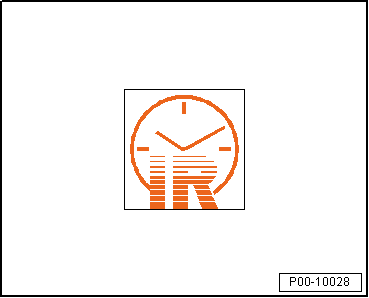

Infrared drying:

  • Short-wave heaters for three minutes (at 50 % power)
  • Medium-wave heaters for five minutes.

Volswagen Tiguan. P00-10028

Sanding compatibility

In connection with the aforementioned drying time:

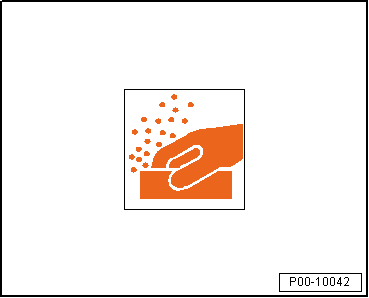

  • Dry-sand the pre-sanding with P180-240 grit sandpaper
  • Dry-sand the final sanding with P240-320 grit sandpaper

Volswagen Tiguan. P00-10042

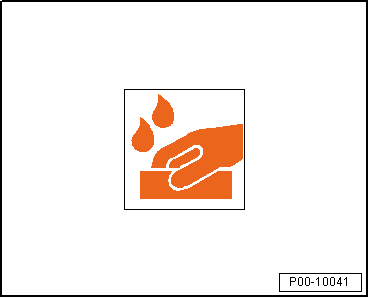

  • While wet, sand the pre-sanding with P240-320 sandpaper
  • While wet, sand the final sanding with P600-800 sandpaper

Volswagen Tiguan. P00-10041

Note

  • When wet-sanding, make sure to wipe and dry off the surface.
  • Temperature resistance up to +80 ºC (176 ºF).

Reworking

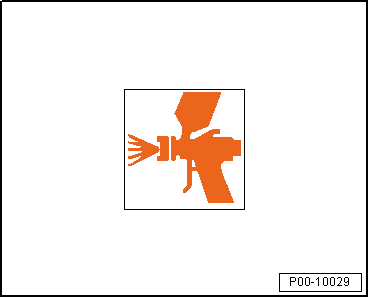

Recommended structure:

  • One-Part Wash Primer -LVM 044 007 A2-/-LVM 044 171 A2-
  • Two-Part Wash Primer -LHV 043 000 A2- and Two-Part HS Vario Filler
  • Two-Part Plastic Adhesive Filler -LKF 696 009 A2-/-LKF 696 040 A2-
  • Unelasticized Adhesion Promoter -ALO 822 000 10- and Two-Part HS Filler (for plastic parts)

Volswagen Tiguan. P00-10029

  • Then paint over with the top coat.

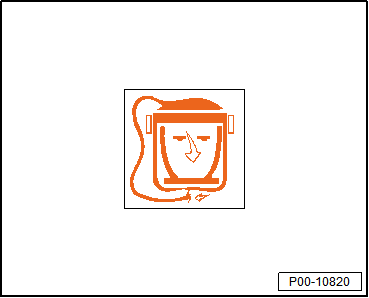

Personal Protective Equipment:

  • Note the safety data sheets
  • Wear the personal protective equipment during application

Volswagen Tiguan. P00-10820

Characteristics

Delivery Viscosity pasty
Flashpoint: Filling paste over 23 ºC (73.4 ºF)
VOC value: 2004/42/IIB(b)(250)170 The EU limit for this product (product category IIB.b) in ready-to-use form is a maximum of 250 g/L volatile organic compounds. The VOC-value of this product in ready-to-use form is a maximum of 170 g/L.

Storage

The guaranteed shelf life is 12 months from the production date. Use no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).

Storage Conditions

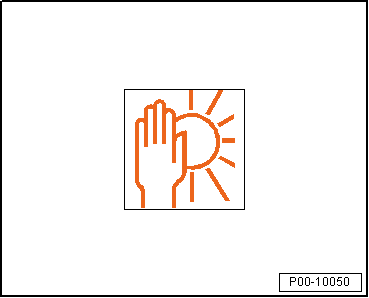

  • Storage Temperature +20 ºC (68 ºF) (temperature should not exceed +30 ºC (86 ºF) ).

Volswagen Tiguan. P00-10050
