Matting Component -ALN 775 106-

Definition:

  • Matting Component -ALN 775 106-

Product Description

With the two-part HS top coat, the Matting Component -ALN 775 106- produce a matted top coat coating for plastic finishes.

Application Instructions

Base Surface

Suitable base surfaces:

  • Hardened, well-preserved and sanded old paint or factory paints
  • Plastic parts treated with primer or filler

Note

For information about plastic parts, refer to "The VW/Audi Coating System for Plastic Parts" (Data Sheet 5.74).

Pre-treatment of base surfaces:

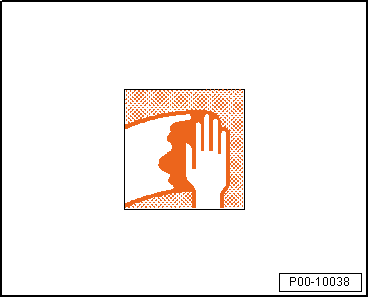

  • Carefully clean using Silicone Remover -LVM 020 000 A5- or Silicone Remover, Long -LVM 020 100 A5-.

Volswagen Tiguan. P00-10038

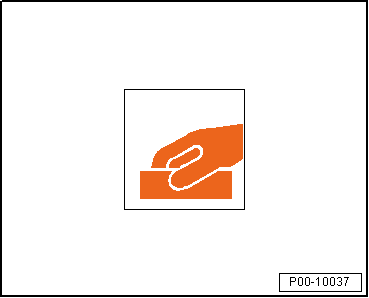

  • Then, sand.

Volswagen Tiguan. P00-10037

  • Use a suitable cleaning agent before reworking to ensure a clean and residue-free surface.

Processing

Applicable products:

  • Two-part HS top coat
  • Two-Part VHS Hardener -LHA 009 051 A2-/-LVM 009 051 A5-
  • Two-Part VHS Hardener, Long -LHA 009 052 A2-/-LHA 009 052 A3-
  • Two-Part VHS Hardener, Extra Long -LHA 009 053 A2-
  • See technical application information for the two-part VHS hardener.

Volswagen Tiguan. P00-10038

Matting Table:

Mixing Ratio (in % by weight) Gloss Units (GU) according to DIN 67530
Matting Component -ALN 775 106- Two-Part HS Top Coat 60º angle
10 90 85-95 GU*
20 80 80-90 GU*
30 70 75-90 GU*
40 60 60-90 GU*
50 50 25-65 GU*
* Depending on color; bright colors usually tend to lose more gloss than darker colors when adding Matting Component -ALN 775 106-. Other factors influence the gloss level. Refer to the gloss level influencing factors table.

Mixing ratio

Combining the Matting Mixture:

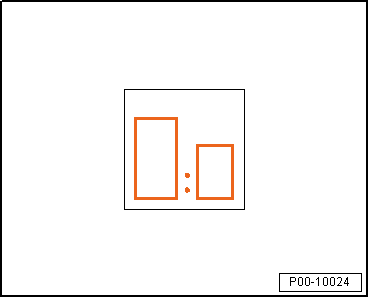

Mixing ratio 4:1 by volume with:

  • Two-Part VHS Hardener -LHA 009 051 A2-/-LVM 009 051 A5- (for small to medium-sized surfaces, at moderate temperatures)
  • Two-Part VHS Hardener, Long -LHA 009 052 A2-/-LHA 009 052 A3- (for larger surfaces at moderate temperatures)
  • Two-Part VHS Hardener, Extra Long -LHA 009 053 A2- (for large surfaces and high temperatures)
  • See technical application information for the two-part VHS hardener.

Volswagen Tiguan. P00-10024

Dilutable with:

  • Two-Part Thinner -LVE 009 001 A5-
  • Two-Part Thinner, Special -LVM 009 200 A2/A5-
  • Two-Part Thinner, Long -LVM 009 300 A2-

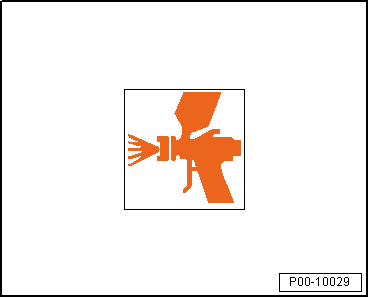

Processing time/pot life:

  • Ready to spray in 60 to 90 minutes at +20 ºC (68 ºF)

Volswagen Tiguan. P00-10029

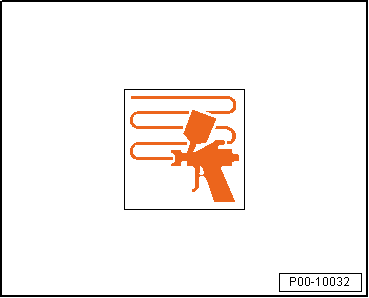

Application type "coat"

Volswagen Tiguan. P00-10032

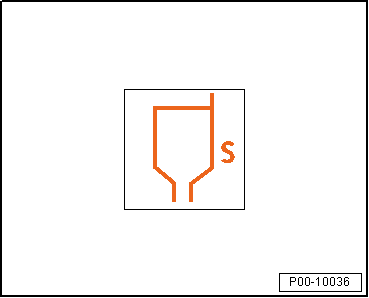

  • Processing viscosity at +20 ºC (68 ºF) material temperature

Processing viscosity "Compliant" and "HVLP":

18-20 Seconds

Volswagen Tiguan. P00-10036

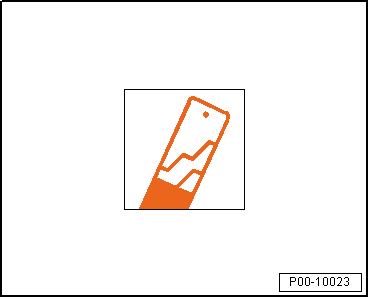

  • Adding 15 % thinner at +20 ºC (68 ºF) material temperature

Volswagen Tiguan. P00-10023

  • Set spray nozzle (see manufacturer's information): "Compliant" 1.3 to 1.4 mm.
  • Set spray nozzle (see manufacturer's information): "HVLP" 1.3 to 1.4 mm.
  • Set spray pressure (see manufacturer's information): "Compliant" to 2.0 to 2.5 bar.
  • Set atomizing pressure (see manufacturer's information): "HVLP" 0.7 bar.

Volswagen Tiguan. P00-10029

  • Two spray applications are required with drying time to get a dry layer thickness of between 50 and 60 um.

Note

  • The addition of Elastic Additive -ALZ 011 001- is omitted.
  • The Matting Component -ALN 775 106- is not suitable for matting clear coats.
  • Matting Component -ALN 775 106- is thixotropically mixed, which means it becomes fluid when strongly stirred. If necessary, it is recommended to use an agitator or manually shake the can. It should also be mixed in the mixer 15 minutes before using.
  • Adding the matting compound can influence the covering capacity.
  • Apart from color-dependent differences, the actual gloss level is influenced by different factors. In the following comparison, various additional parameters and their effect on the gloss levels are represented.

Volswagen Tiguan. P00-10032

Higher Gloss Level Lower Gloss Level
longer hardener shorter hardener
longer thinner shorter thinner
higher processing viscosity lower processing viscosity
higher dry layer thickness lower dry layer thickness
shorter ventilation time longer ventilation time
forced drying Air drying

Influencing Factors on the Gloss Level:

  • Using different hardeners, thinners, application types, drying conditions and layer thicknesses lead to different gloss levels (up to 20%).

Drying

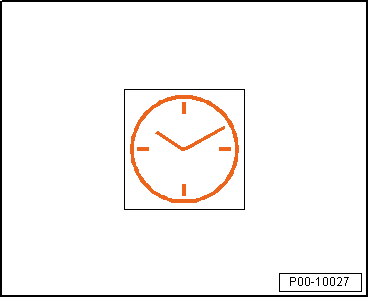

Air dry at +20 ºC (68 ºF) room temperature:

  • Dust dry after 30 to 50 minutes
  • Ready for assembly after 5 to 6 hours
  • Dry overnight

Volswagen Tiguan. P00-10027

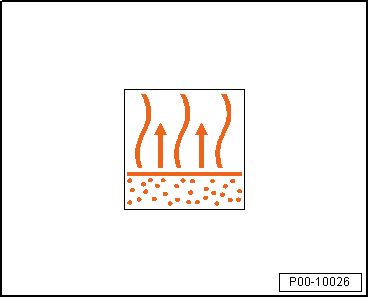

Final drying time with forced drying is a minimum of 5 to 10 minutes.

Volswagen Tiguan. P00-10026

Forced dry at +60 ºC (140 ºF) object temperature for 30 to 40 minutes

Volswagen Tiguan. P00-10027

Final drying time for IR drying is a minimum of 5 to 10 minutes.

Volswagen Tiguan. P00-10026

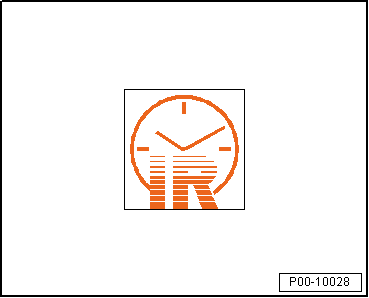

IR dry with short-wave radiator for 5 minutes at 50 % power and for 10 minutes at 100 % power

Volswagen Tiguan. P00-10028

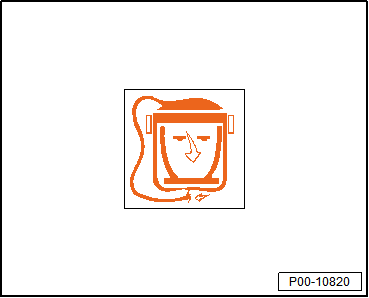

Personal Protective Equipment:

  • Note the safety data sheets
  • Wear the personal protective equipment during application

Volswagen Tiguan. P00-10820

Characteristics

Delivery Viscosity pasty
Flashpoint: above +23 ºC (73.4 ºF)
VOC value: 2004/42/IIB(e)(840)600 The EU limit for this product (product category IIB.e) in ready-to-use form is a maximum of 840 g/L volatile organic compounds. The VOC-value of this product in ready-to-use form is a maximum of 600 g/L.

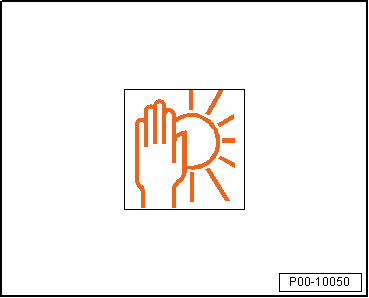

Storage

The guaranteed shelf life of 48 months from date of manufacture. Use no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).

Volswagen Tiguan. P00-10050

Matting Component -LVM 769 810 A2-

Definition:

  • Matting Component -LVM 769 810 A2-

Product Description

With two-part HS clear coats and two-part HS top coat, the Matting Component - LVM 769 810 A2- creates a matted top coat coating for metal and plastic finishes.

Areas of application include large surfaces/complete painting as well as small- and attachment parts.

Application Instructions

Base Surface

Suitable base surfaces:
  • Hardened, well-preserved and sanded old paint or factory paints
  • Primed and filled metal- and plastic parts

Note

For information about plastic parts, refer to "The VW/Audi Coating System for Plastic Parts" (Data Sheet 5.74).

Processing

Applicable products:

  • Two-Part HS Clear Coat -L2K 769 500 A5-
  • Two-Part HS Vario Clear Coat -L2K 769 K01 A2-
  • Two-Part HS Optimum Plus Clear Coat -LZK 769 K07 A5-
  • Two-Part HS Brilliant Plus Clear Coat -LZK 769 K05 A5-
  • Two-Part HS Performance Clear Coat -LZK 769 K06 A5-
  • Two-Part HS Mixed Paint/Top Coat -L2K 074/073...-
  • Two-Part HS Hardener, Long -LHA 009 047 A3-
  • Two-Part HS Hardener, Extra Long -LHA 009 048 A3-
  • Two-Part VHS Hardener, Long -LHA 009 052 A2-/-LHA 009 052 A3-
  • Two-Part VHS Hardener, Extra Long -LHA 009 053 A2-
  • For hardener, refer to the technical application instructions here → Chapter "Hardener".
  • Two-Part Thinner -LVE 009 001 A5-
  • Two-Part Thinner, Long -LVM 009 300 A2-
  • Two-Part Thinner, Special -LVM 009 200 A2-/-LVM 009 200 A5-
  • Clear Coat Additive -LVM 007 000 A2-

Gloss Level Adjustment/Matting and Application Instructions

Note

Refer to "Gloss Level Adjustment" (5.75) and "Repair Paint Systems For Matte Painted Vehicles" (5.76).

Application Instructions

Note

  • The addition of Elastic Additive -ALZ 011 001- is omitted.
  • Stir or shake the Matting Component -LVM 769 810 A2- in the can well.
  • With the two-part HS clear coat and two-part HS top coat, mix the Matting Component -LVM 769 810 A2- according to specification and infuse with hardener and thinner just before processing. The processing of the ready-to spray mixture should immediately follow. If the mixture remains in the mixing- or spray gun receptacle for a longer period of time (15 minutes), it should be stirred again before continuing to use (separation).
  • Adding the matting compound can influence the covering capacity.
  • It is absolutely necessary to test the respective mixture on sheet metal to achieve the appropriate gloss level for the vehicle. Gloss level measurements (60º angle) at adjacent parts can also be helpful.
  • A touch-up/repair of the matted clear coat within the surface (for example, side part or clever repair) is not possible.
  • Apart from color-dependent differences, the actual gloss level is influenced by different factors. In the following comparison, various additional parameters and their effect on the gloss levels are represented.
Higher Gloss Level Lower Gloss Level
shorter hardener longer hardener
shorter thinner longer thinner
higher processing viscosity lower processing viscosity
higher dry layer thickness lower dry layer thickness
shorter ventilation time longer ventilation time
forced drying Air drying

Influencing Factors on the Gloss Level:

  • Using different hardeners, thinners, application types, drying conditions and layer thicknesses lead to different gloss levels (up to 20%).

Drying

Final drying time with forced drying is a minimum of 15 to 20 minutes

Volswagen Tiguan. P00-10026

Forced drying at +60 and 65 ºC (140º and 149 ºF) object temperature for 45 minutes

Volswagen Tiguan. P00-10027

Personal Protective Equipment:

  • Note the safety data sheets
  • Wear the personal protective equipment during application

Volswagen Tiguan. P00-10820

Characteristics

Flashpoint: above +23 ºC (73.4 ºF)
VOC value: 2004/42/IIB(e)(840)600 The EU limit for this product (product category IIB.e) in ready-to-use form is a maximum of 840 g/L volatile organic compounds. The VOC-value of this product in ready-to-use form is a maximum of 600 g/L.

Storage

The guaranteed shelf life of 48 months from date of manufacture. Use no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).

Volswagen Tiguan. P00-10050

Structuring Component

Definition:

  • Structuring Component, Fine -ALN 775 108-

Product Description

The Structuring Component, Fine -ALN 775 108- is a component for the two-part HS top coat and changes it into a textured paint.

The top coat can be used for plastic finishes on vehicles.

Application Instructions

Base Surface

Suitable base surfaces:
  • Hardened, well-preserved and sanded old paint or factory paints
  • Plastic parts treated with primer or filler

Note

For information about plastic parts, refer to "The VW/Audi Coating System for Plastic Parts" (Data Sheet 5.74).

Pre-treatment of base surfaces:

  • Carefully clean using Silicone Remover -LVM 020 000 A5- or Silicone Remover, Long -LVM 020 100 A5-.

Volswagen Tiguan. P00-10038

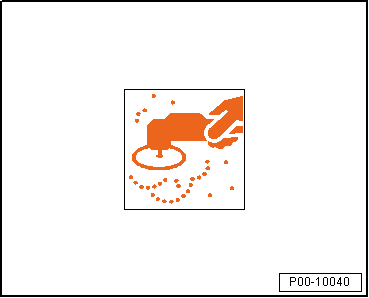

  • Dry-sand with rotary sander and dust extraction (P 400 to 500 grit).

Volswagen Tiguan. P00-10040

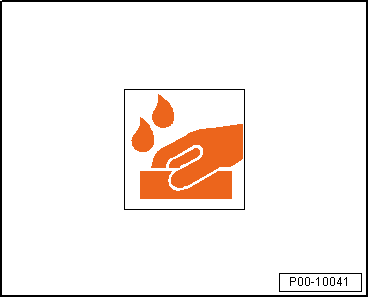

  • Or wet-sand with P 800 grit sandpaper

Volswagen Tiguan. P00-10041

  • Use a suitable cleaning agent before reworking to ensure a clean and residue-free surface.

Volswagen Tiguan. P00-10038

Processing

Mixing ratio

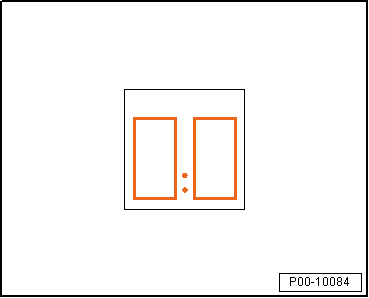

Mixing ratio 1:1 by volume with two-part HS top coat:

  • Afterwards combine this mixture 4:1 by volume with a suitable two-part VHS hardener.
  • See technical application information two-part VHS hardener.

Volswagen Tiguan. P00-10084

Dilutable with:

  • Two-Part Thinner, Special -LVM 009 200 A2/A5-
  • Two-Part Thinner, Long -LVM 009 300 A2-

Processing time/pot life:

  • Ready to spray in 90-100 minutes at +20 ºC (68 ºF)

Volswagen Tiguan. P00-10029

Application type "coat"

Volswagen Tiguan. P00-10032

  • Processing viscosity 4 mm for +20 ºC (68 ºF), German Industry Standardization 53211
  • Processing viscosity at +20 ºC (68 ºF) material temperature is the mixing viscosity for "Compliant" and "HVLP".

Volswagen Tiguan. P00-10036

  • Adding 15 % thinner at +20 ºC (68 ºF) material temperature

Volswagen Tiguan. P00-10023

  • Set spray nozzle (see manufacturer's information): "Compliant" 1.3 to 1.4 mm.
  • Set spray nozzle (see manufacturer's information): "HVLP" 1.3 to 1.5 mm.
  • Set spray pressure (see manufacturer's information): "Compliant" to 2.0 to 2.5 bar.
  • Set atomizing pressure (see manufacturer's information): "HVLP" 0.7 bar.

Volswagen Tiguan. P00-10029

  • Two spray applications are required with drying time (5 to 10 minutes) to get a dry layer thickness of between 50 and 60 um.

Note

  • The addition of Elastic Additive -ALZ 011 001- is omitted.
  • Structuring Component, Fine -ALN 775 108- is only suitable for use on attachments (for example, bumpers, spoilers).
  • Various effects can be created using different spraying techniques and layer thicknesses.
  • Structuring Component, Fine -ALN 775 108- is thixotropically mixed, which means it becomes fluid when stirred.

Volswagen Tiguan. P00-10032

Drying

Air dry at +20 ºC (68 ºF) room temperature:

  • Dust dry after 30 to 50 minutes
  • Ready for assembly after 4 to 6 hours
  • Dry overnight

Volswagen Tiguan. P00-10027

Final drying time with forced drying is a minimum of 5 to 10 minutes.

Volswagen Tiguan. P00-10026

Forced dry at +60 ºC (140 ºF) object temperature for 30 to 40 minutes

Volswagen Tiguan. P00-10027

Final drying time for IR drying is 5 minutes.

Volswagen Tiguan. P00-10026

IR dry with a short-wave radiator for 10 to 15 minutes and with a medium-wave radiator for 15 to 20 minutes.

Volswagen Tiguan. P00-10028

Personal Protective Equipment:

  • Note the safety data sheets
  • Wear the personal protective equipment during application

Volswagen Tiguan. P00-10820

Characteristics

Delivery Viscosity Thixotropic
Flashpoint: above +23 ºC (73.4 ºF)
VOC value: 2004/42/IIB(e)(840)600 The EU limit for this product (product category IIB.e) in ready-to-use form is a maximum of 840 g/L volatile organic compounds. The VOC-value of this product in ready-to-use form is a maximum of 600 g/L.

Storage

The guaranteed shelf life is 24 months from production date. Use no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).

Volswagen Tiguan. P00-10050

Aquaplus Touch-Up Additive

Definition:

  • Touch-Up Additive for Aquaplus -LVM 030 000 A2-

Note

The usage and application instructions for the Touch-Up Additive for Aquaplus -LVM 030 000 A2- is described here → Chapter "Aquaplus Touch-Up System".

Aqua Premium System Additive

Definition:

  • Additive for Aqua Premium -LVM 035 200 A2/A3-
  • Additive for Aqua Premium -LVM 035 300 A1-
  • Additive for Aqua Premium -LVM 035 300 A1/A3-/-LVM 035 301 A3-

Note

The use and application instructions for the additives for aqua premium are described in the appropriate base component.

    Silicone Remover, Long -LLS MAX 008-
    Definition: Silicone Remover, Long -LLS MAX 008- Product Description The Silicone Remover, Long -LLS MAX 008- is a cleaning agent that is rich in active ingredients, is easy to apply and evaporate ...

    Workshop Equipment
    ...

    See More:

    Volkswagen Tiguan Service and Repair Manual > Multifunction Steering Wheel: Multifunction Steering Wheel from 05/2010
    General Information The multifunction steering wheel makes it possible to control some functions of the communications system and the cruise control from the steering wheel. The multifunction steering wheel has: The control unit in the steering wheel with two button arrays with integrated elect ...

    Volkswagen Tiguan Owners Manual

    Volkswagen Tiguan Service and Repair Manual

    © 2018-2021 Copyright www.vwtiguan.org - 0.011
