Volkswagen Tiguan Service and Repair Manual: Silicone Remover, Long -LLS MAX 008-

Definition:

  • Silicone Remover, Long -LLS MAX 008-

Product Description

The Silicone Remover, Long -LLS MAX 008- is a cleaning agent that is rich in active ingredients, is easy to apply and evaporates leaving no residue. The raw material base has specific solvent combinations.

Properties:

  • Application-oriented product-specific aerosol formulation
  • Constant atomizing pressure
  • Aerosol distribution
  • Highest yield
  • Professional painting result
  • Easy to process
  • Evaporates leaving no residue
  • Removes silicone, grease, oil, wax, dirt, tar and soot
  • Contains a mild, nonaggressive cleaning solution
Application Instructions

Application

Recommended for:
  • Parts painting and spot repair aid

Suitable base surfaces:

  • Primed, filled metal, plastic, glass, old- and factory paint surfaces, painted and unpainted base surfaces
Base Surface Suitability
Primed, filled surfaces +++
Factory and old paint +++
Plastic parts +++
Metal/glass +++

Properties:

  • Painted surfaces do not become corroded
  • Removes all types of silicone, an ideal dirt and soot cleaner
  • Removes cavity sealant or wax
  • Removes gummy, dried-on grease residue, for example door hinges
  • Removes oil and grease residue
  • Ideal solvent for tar marks
  • Removes adhesive residue, for example stickers

Processing

Note

For work safety, wear appropriate, personal protective equipment:

  • Breathing mask type: A2/P2
  • Latex or nitrile protective gloves, for example

Application type "coat"

  • Apply a light coat and wipe with a clean, dry fleece cloth.
  • Allow to evaporate from the cleaned surfaces fully.
  • Repeat the cleaning procedure if the surface is very dirty.
  • Replace the cloths a few times. Do not use any dirty cloths.

Note

If the spray application is interrupted, make sure that the valve above the spray head is empty.

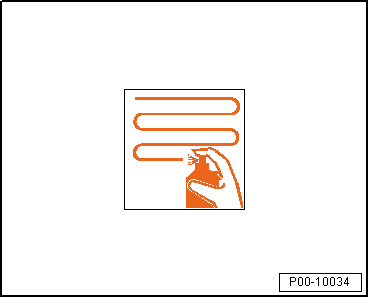

Volswagen Tiguan. P00-10034

Caution

For work safety, wear appropriate, personal protective equipment.

Note the safety data sheets as well as the warnings on the label of the spray nozzle.

Dispose of the empty spray cans as recyclable material.

Characteristics

Solid content: 0 %
Yield: Approximately 0.75 to 1.0 m² / spray can
Gloss level: not applicable
VOC value: 620 g/L, 248 g/can

Storage

The guaranteed shelf life of 36 months from date of manufacture. Use no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).

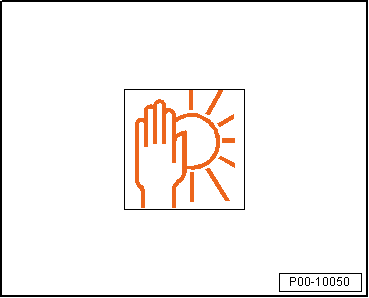

Volswagen Tiguan. P00-10050

Blender

Definition:

  • Blender -LLS MAX 009-

Product Description

The Blender -LLS MAX 009- matches the overlapping areas or the edges from the existing paint to the new paint for proper vehicle spot painting. The raw material base has specific resin and solvent combinations.

Properties:

  • Application-oriented product-specific aerosol formulation
  • Constant atomizing pressure
  • Aerosol distribution
  • Professional painting result
  • Ideal for spot repairEasy, time-saving processing
  • Especially suitable for touch-up repairs with two layer finishes and two-part one-coat finishes
  • Exceptional etching ability
  • Polishes well
  • Produces seamless edges on touch-up surfaces
Application Instructions

Application

Recommended for:
  • Spot repairs and touch-ups

Suitable base surfaces:

  • Immediately apply after spraying the Two-Part Clear Coat -LLS MAX 210- or two-part top coat onto the overlapping areas on the touch-up surface.
  • The base surface in the tapering off/overlapping areas should be sufficiently matted with a sanding pad (P2000-P4000).

Pretreatment:

  • No special tasks are necessary immediately before apply the blender.

Processing

Note

For work safety, wear appropriate, personal protective equipment:

  • Breathing mask type: A2/P2
  • Latex or nitrile protective gloves, for example

Application type "coat"

  • In several spray applications, spray onto the spray mist of either the two-part clear coat or two-part top coat until a uniform transition forms.
  • The two-part clear coat or two-part top coat do not require drying.

Note

If the spray application is interrupted, make sure that the valve above the spray head is empty.

Volswagen Tiguan. P00-10034

Caution

For work safety, wear appropriate, personal protective equipment.

Note the safety data sheets as well as the warnings on the label of the spray nozzle.

Dispose of the empty spray cans as recyclable material.

Characteristics

Solid content: 4.8 %
Yield: Approximately 0.5 m² / spray can
Gloss level: not applicable
VOC value: 766 g/L, 306 g/can

Storage

The guaranteed shelf life of 36 months from date of manufacture. Use no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).

Volswagen Tiguan. P00-10050

Bonding Agent

Definition:

  • Bonding Agent -LLS MAX 015-, plastic

Product Description

The Bonding Agent -LLS MAX 015- is a universal single-component bonding agent for all standard exterior plastic vehicle parts.

Properties:

  • Easy processing
  • Good adhesion properties
  • High elasticity

Application Instructions

Base Surface

Suitable base surfaces:

  • All standard plastic parts used on car exteriors (PP, EPDM, ABS, PC, PPO, PA, R-TPU, PBTP, PVC, PUR, PUR soft foam, UP-GF).

Pre-treatment of base surfaces:

The base surface must be free of separating agents.

Before cleaning plastic parts, temper them for 60 minutes at +60 ℃ to "sweat out" the separating agents.

  • Clean using Antistatic Plastic Cleaner -LVM 001 001 A2- or a milder Silicone Remover, Long -LVM 020 100 A5-.

Note

  • The effort needed for cleaning depends on the type and quantity of the separating agent used. We recommend using a sanding pad to help cleaning
  • Let the thinner evaporate (for example, air-drying overnight at room temperature or 30-40 minutes at +60℃ (140 ºF) ).

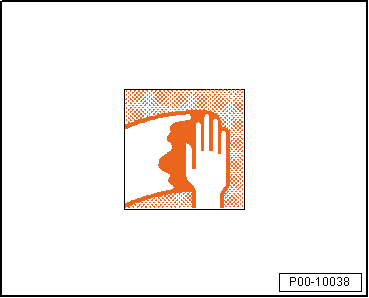

Volswagen Tiguan. P00-10038

  • Before priming, lightly clean again using Antistatic Plastic Cleaner -LVM 001 001 A2- or Silicone Remover, Long -LVM 020 100 A5- (antistatic effect).

Volswagen Tiguan. P00-10038

Processing

Application:

  • Shake the can thoroughly for two minutes.

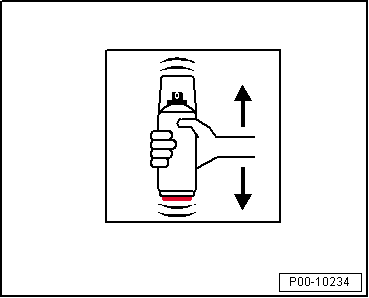

Volswagen Tiguan. P00-10234

Application type "coat"

  • Apply one preliminary sealed spray application (1-2 um).

Spraying distance:

  • Maintain a distance of 20 to 25 cm.

Volswagen Tiguan. P00-10034

Ventilate: at +20 ºC (68 ºF) room temperature for 10 to 15 minutes.

Note

  • If the spraying procedure is interrupted, make sure that the valve above the spray head is empty to prevent any nozzle blockage.
  • Sanded-through areas that are not larger than 5.0 cm can be reworked using Bonding Agent -LLS MAX 015-directly with top coat.

Further Processing

Fill with:

  • Elasticized two-part HS filler (for elastification, refer to the technical application instructions for the respective filler).

Can be painted over with:

  • Two-Part HS Top Coat
  • Water-based base paint and two-part HS clear coats

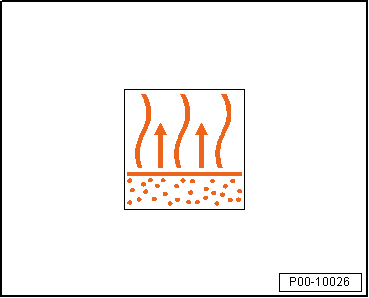

Volswagen Tiguan. P00-10026

Caution

For work safety, wear appropriate, personal protective equipment.

Note the safety data sheets as well as the warnings on the label of the spray nozzle.

Shake briefly again before every spray application.

Dispose of the empty spray cans as recyclable material.

Characteristics

VOC value: 2004/42/IIB(e)(840)730 The EU limit for this product (product category IIB.e) in ready-to-use form is a maximum of 840 g/L volatile organic compounds. The VOC-value of this product in ready-to-use form is a maximum of 730 g/L.

Storage

The guaranteed shelf life of 60 months from date of manufacture. Use no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).

Volswagen Tiguan. P00-10050

Storage Conditions

The prescribed storage temperature is +20 to +25 ºC (68 ºF to 77 ºF) )(do not to fall below +5 ºC (41 ºF) ).

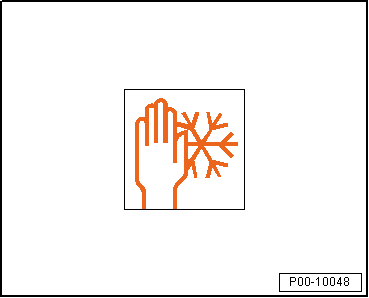

Volswagen Tiguan. P00-10048
