Volkswagen Tiguan Service and Repair Manual: Two-Part HS Performance Clear Coat

Definition:

  • Two-Part HS Performance Clear Coat -LZK 769 K06 A5-

Product Description

The two-part HS performance clear coat is a high-gloss, VOC compliant high solid clear coat.

Properties:

  • Can be used in a number of ways for all areas of repair
  • Flexible application in 1.5 spray applications (preferred), or possible in two spray applications
  • Good stability
  • Good gloss and depth.
  • Dries quickly

Application Instructions

Base Surface

Suitable preliminary coatings:

  • Water-based base paints

Processing

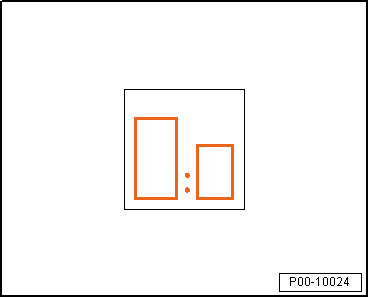

Mixture ratio:

3:1 by volume with:

  • Two-Part VHS Hardener -LHA 009 051 A2-/-LVM 009 051 A5-
  • Two-Part VHS Hardener, Short -LHA 009 050 A2-
  • Two-Part VHS Hardener, Long -LHA 009 052 A2-/-LHA 009 052 A3-
  • Two-Part VHS Hardener, Extra Long -LHA 009 053 A2-
  • The choice of hardener depends on the temperature and the size of the surface. See technical application information two-part VHS hardener.

Volswagen Tiguan. P00-10024

Dilutable with:

  • Clear Coat Additive -LVM 007 000 A2-
  • HS Spot Thinner -LVM 006 000 A2-
  • See the HS spot thinner technical application information.

Processing time/pot life:

  • Ready to spray in 60 to 120 minutes at +20 ºC (68 ºF)

Volswagen Tiguan. P00-10029

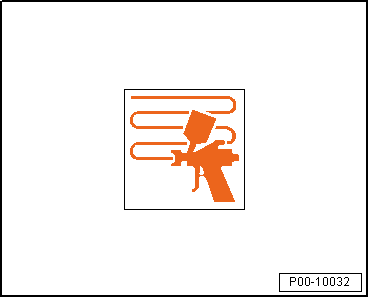

Application type "coat"

Volswagen Tiguan. P00-10032

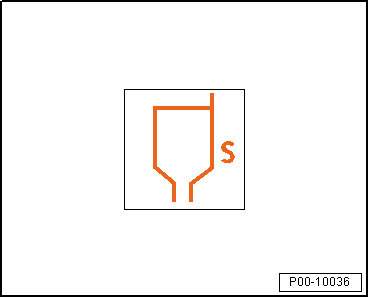

  • Processing viscosity 4 mm for +20 ºC (68 ºF), German Industry Standardization 53211

Processing viscosity 4 mm gravity feed spraygun "Compliant" and "HVLP" is the mixed viscosity.

Volswagen Tiguan. P00-10036

Adding 5 % Clear Coat Additive -LVM 007 000 A2- at +20 ºC (68 ºF) material temperature

Note

  • When using as a clear coat for minimal damage repairs (clever repair procedure), 5 % Clear Coat Additive -LVM 007 000 A2- can be replaced with 5 % HS Spot Thinner -LVM 006 000 A2-.
  • The mixture for the clever repair procedure

Volswagen Tiguan. P00-10023

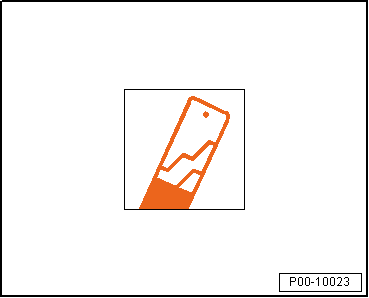

  • Use a measuring stick to mix when pouring in the thinner.

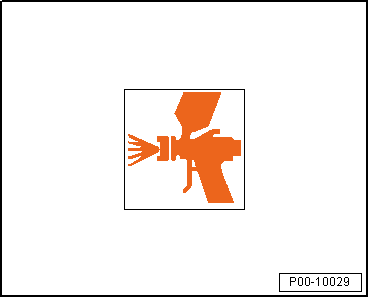

  • Set spray nozzle (see manufacturer's information): "Compliant" 1.3 to 1.4 mm.
  • Set spray nozzle (see manufacturer's information): "HVLP" 1.3 to 1.4 mm.
  • Set spray pressure (see manufacturer's information): "Compliant" to 2.0 to 2.5 bar.
  • Set atomizing pressure (see manufacturer's information): "HVLP" 0.7 bar.

Volswagen Tiguan. P00-10029

  • Apply 1.5 spray applications. The first half spray application should form a thin, nearly complete film upon which a fully-completed spray application can be applied.
  • Can be applied in two spray applications with a 5 to 10 minute intermediate ventilation time. The first spray application is applied lightly, but completely.

Volswagen Tiguan. P00-10032

  • The recommended dry layer thickness is between 50 and 70 um.

Drying

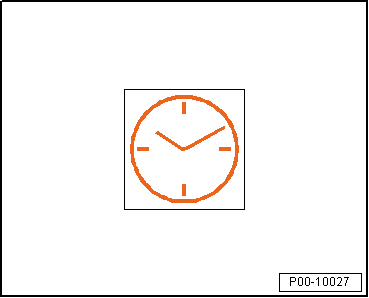

Air dry at between +18 and 22 ºC (64.4º and 71.6 ºF) room temperature:

  • Dry overnight

Volswagen Tiguan. P00-10027

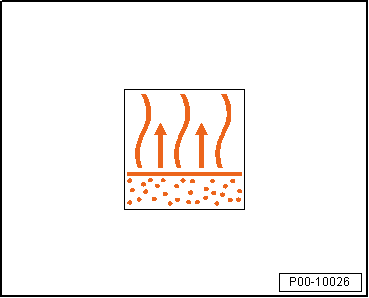

Final drying time with forced drying is a minimum of 5 to 10 minutes.

Volswagen Tiguan. P00-10026

Forced drying is at between +60 and 65 ºC (140º and 149 ºF) for 25 to 35 minutes.

Volswagen Tiguan. P00-10027

Final drying time for IR drying is a minimum of 5 to 10 minutes.

Volswagen Tiguan. P00-10026

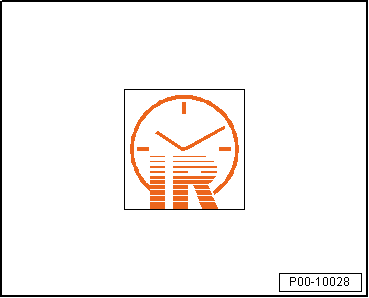

IR dry with short-wave heater for 10 to 15 minutes

Volswagen Tiguan. P00-10028

Special Instructions

Elastification for rigid and semi-rigid plastics:

  • The base material must first be mixed with 15 % Elastic Additive -ALZ 011 001-.
  • Mixture with two-part VHS hardeners, 3:1 with 5 % Clear Coat Additive -LVM 007 000 A2- (drying period is lengthened).

Volswagen Tiguan. P00-10024

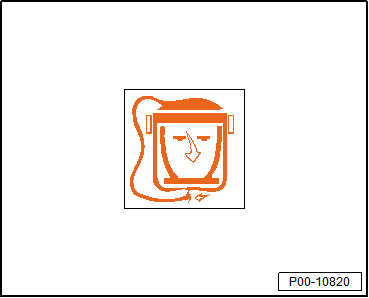

Personal Protective Equipment:

  • Note the safety data sheets
  • Wear the personal protective equipment during application

Volswagen Tiguan. P00-10820

Characteristics

Flashpoint: above +23 ºC (73.4 ºF)
VOC value: 2004/42/IIB(d)(420)420 The EU limit for this product (product category IIB.b) in ready-to-use form is a maximum of 420 g/L volatile organic compounds. The VOC-value of this product in ready-to-use form is a maximum of 420 g/L.

Storage

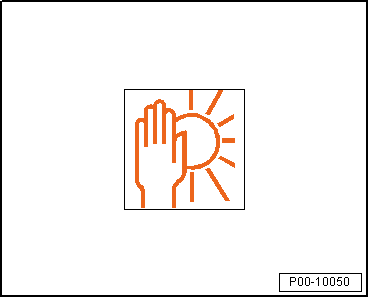

The guaranteed shelf life is:

  • 48 months from date of manufacture for Two-Part HS Brilliant Plus Clear Coat -LZK 769 K05 A5-.
  • 24 months from date of manufacture for Clear Coat Additive -LVM 007 000 A2-.

Use no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).

Volswagen Tiguan. P00-10050

Blender

Definition:

  • Blender -LVE 013 100 A2-

Product Description

Blender was developed for hassle-free two-part clear coat and top coat touch-up.

Properties:

  • Easy to use (pure)
  • Applies well to all base surfaces
  • Blends well with the old paint

Application Instructions

Preparation

Applying base paint:

  • Keep the filler surface as small as possible.
  • Paint filler spot thoroughly with water-based base paint (overlapping spray applications)

Touch-Up System for Two-Part Clear Lacquers

Mixing ratio for two-part clear coat:

  • Adjust the two-part clear coat according to technical application information.

Volswagen Tiguan. P00-10024

Painting:

  • Paint over the water-based base paint with adjusted clear coat (overlapping spray applications).

Volswagen Tiguan. P00-10032

Touch-up process:

  • Apply pure Blender -LVE 013 100 A2- onto the touch-up area inside the sanded surface.

Volswagen Tiguan. P00-10032

Touch-Up System for Two-Part Top Coats

Mixing ratio for two-part top coat:

  • Adjust the two-part top coat according to technical application information.

Volswagen Tiguan. P00-10024

Painting:

  • Paint over filler area thoroughly (overlapping spray applications).

Volswagen Tiguan. P00-10032

Touch-up process:

  • Apply pure Blender -LVE 013 100 A2- onto the touch-up area inside the sanded surface.

Volswagen Tiguan. P00-10032

Polishing the Touch-Up Zones

Air dry at +20 ºC (68 ºF) room temperature:

  • Polish the touch-up areas after they have dried overnight

Volswagen Tiguan. P00-10027

Final drying time with forced drying is a minimum of 5 to 10 minutes.

Volswagen Tiguan. P00-10026

Forced drying is at +60 ºC (140 ºF) object temperature for 30 minutes.

  • After that, allow the touch-up areas to cool off for an hour and polish at +20 ºC (68 ºF) room temperature.

Volswagen Tiguan. P00-10027

Final drying time for IR drying is a minimum of 5 to 10 minutes.

Volswagen Tiguan. P00-10026

IR dry with a short-wave radiator for 10 minutes

  • After that, allow the touch-up areas to cool off for an hour and polish at +20 ºC (68 ºF) room temperature.

Note

  • Polish the touch-up area with fine polishing paste by hand or with a polishing machine.
  • To finish, treat the surface with high-gloss sealant.

Volswagen Tiguan. P00-10028

Personal Protective Equipment:

  • Note the safety data sheets
  • Wear the personal protective equipment during application

Volswagen Tiguan. P00-10820

Characteristics

Flashpoint: +20 ºC (68 ºF)

Storage

  • The guaranteed shelf life of 60 months from date of manufacture. Use no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).

Volswagen Tiguan. P00-10050
