Volkswagen Tiguan Service and Repair Manual: Two-Part Brilliant Clear Coat

Definition:

  • Two-Part Brilliant Clear Coat -L2K 769 K04 A5-

Product Description

Two-part HS brilliant clear coat is a high-gloss, VOC compliant high solid clear coat from the two-part acrylic system.

Properties:

  • Very high stability under load
  • Reliable application
  • Very good gloss and depth
  • Can be used in a number of ways by adding thinner
  • Processing in two spray applications

Application Instructions

Base Surface

Suitable preliminary coatings:

  • Water-based base paints

Processing

Mixture ratio:

3:1 by volume with:

  • Two-Part VHS Hardener -LHA 009 051 A2-/-LVM 009 051 A5-
  • Two-Part VHS Hardener, Short -LHA 009 050 A2-
  • Two-Part VHS Hardener, Long -LHA 009 052 A2-/-LHA 009 052 A3-
  • Two-Part VHS Hardener, Extra Long -LHA 009 053 A2-
  • The choice of hardener depends on the temperature and the size of the surface. See technical application information two-part VHS hardener.

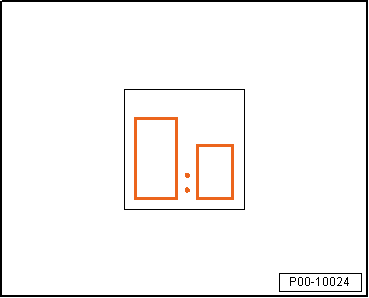

Volswagen Tiguan. P00-10024

Dilutable with:

  • Two-Part Thinner, Special -LVM 009 200 A2/A5-

Processing time/pot life:

  • Ready for spraying 60-75 minutes at +20 ºC (68 ºF).

Volswagen Tiguan. P00-10029

Application type "coat"

Volswagen Tiguan. P00-10032

  • Processing viscosity 4 mm for +20 ºC (68 ºF), German Industry Standardization 53211

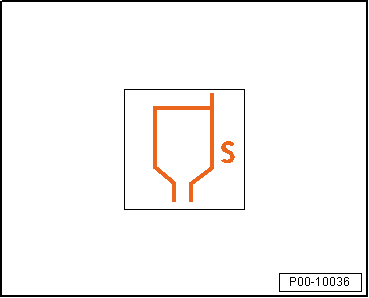

Volswagen Tiguan. P00-10036

Adding 10 % thinner at +20 ºC (68 ºF) material temperature.

  • Use a measuring stick to mix when pouring in the thinner.

Processing viscosity 4 mm gravity feed spraygun "Compliant" and "HVLP":

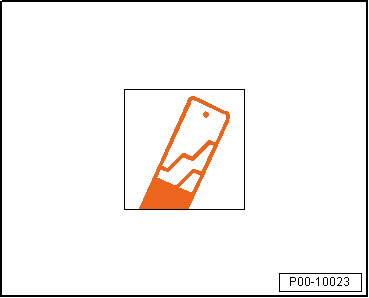

Volswagen Tiguan. P00-10023

DIN 4 mm: 18 to 21 seconds

Volswagen Tiguan. P00-10029

  • Set spray nozzle (see manufacturer's information): "Compliant" 1.2 to 1.3 mm.
  • Set spray nozzle (see manufacturer's information): "HVLP" 1.2 to 1.3 mm.
  • Set spray pressure (see manufacturer's information): "Compliant" to 2.0 to 2.5 bar.
  • Set atomizing pressure (see manufacturer's information): "HVLP" 0.7 bar.
  • Apply in two spray applications with a 5 to 10 minute intermediate ventilation time. The first spray application is applied lightly, but completely.
  • The recommended dry layer thickness is between 50 and 70 um.

Volswagen Tiguan. P00-10032

Drying

Volswagen Tiguan. P00-10027

Final drying time with forced drying is at least 10 minutes.

Volswagen Tiguan. P00-10026

Forced drying is at between +60 and 65 ºC (140º and 149 ºF) for 35 to 40 minutes.

Volswagen Tiguan. P00-10027

Final drying time for IR drying is a minimum of 5 to 10 minutes.

Volswagen Tiguan. P00-10026

IR dry with a short-wave heater for 15 to 20 minutes and with a medium-wave heater for 10 to 15 minutes

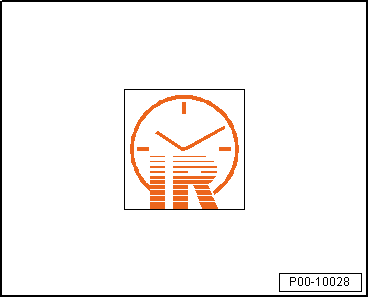

Volswagen Tiguan. P00-10028

Special Instructions

Elastification for rigid and semi-rigid plastics:

  • The base material must first be mixed with 15 % Elastic Additive -ALZ 011 001-.
  • Mixture with two-part VHS hardeners, 3:1 with 10 % Two-Part Thinner, Special -LVM 009 200 A2/A5- (drying period is lengthened).

Volswagen Tiguan. P00-10024

Characteristics

Delivery Viscosity DIN 4 mm, +20 ºC (68 ºF): 24 to 28 seconds
Flashpoint: above +23 ºC (73.4 ºF)
VOC value: 2004/42/IIB(d)(420)420 The EU limit for this product (product category IIB.b) in ready-to-use form is a maximum of 420 g/L volatile organic compounds. The VOC-value of this product in ready-to-use form is a maximum of 420 g/L.

Storage

The guaranteed shelf life of Two-Part Brilliant Clear Coat -L2K 769 K04 A5- is 48 months from date of manufacture. Use no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).

Volswagen Tiguan. P00-10050
