Volkswagen Tiguan Service and Repair Manual: Brake Pedal

Overview - Brake Pedal

WARNING

The path of the brake pedal must not be shortened by extra floor mats.

Before installing, lubricate all mounting points with grease, replacement part number G 000 602.

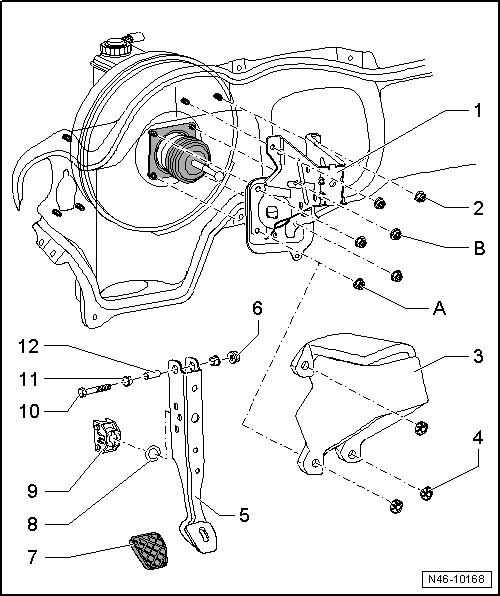

Volswagen Tiguan. Overview - Brake Pedal

  1. Mounting Bracket
  2. Hex Nut, Self-Locking
    • 25 Nm
    • Always replace if removed
    • First tighten the hex nuts -A and B-.
  3. Noise Insulation on the Brake Pedal
    • Allocation. Refer to the Parts Catalog
  4. Lock Washer
  5. Brake Pedal
    • Clip the brake pedal to the brake booster push rod.
  6. Hex Nut, Self-Locking
    • 25 Nm
  7. Cap
  8. Bearing Shell
  9. Mount
    • For the brake booster push rod ball head
  10. Hex Bolt
  11. Bearing Bushing
  12. Mounting Pin

Brake Pedal, Disconnecting from Brake Booster

Special tools and workshop equipment required

Release Tool - Brake Servo -T10159- or Brake Servo Release Tool -T10159A-

  • Remove trim on driver side.
  • Press and hold the brake pedal in the direction of the brake booster.
  1. Push rod
  2. Retaining tabs

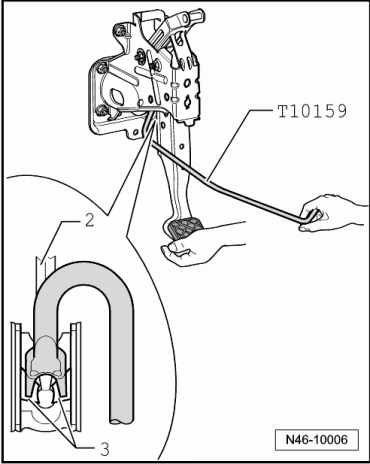

  • Insert the Release Tool - Brake Servo -T10159- or Brake Servo Release Tool -T10159A- and pull in the direction of the driver seat. While doing so, counterhold on the brake pedal (at this moment the pedal must not move to the driver seat). The mount retaining tabs -3- will thereby be pressed off the ball head of the push rod -2-.

Volswagen Tiguan. N46-10006

The process of separating the brake pedal from the brake booster is shown with the pedal assembly removed.

  • Pull the Release Tool and brake pedal together in the direction of the driver seat. (This will pull the brake pedal off of the push rod ball head).

Brake Pedal, Attaching to Brake Booster

  • Hold the push rod ball head in front of the mount and push the brake pedal toward the brake booster so that the ball head engages audibly.

Install in reverse order of removal.

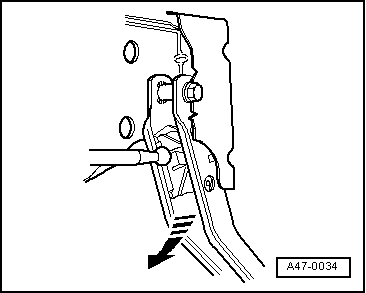

Volswagen Tiguan. A47-0034

Special Tools

Special tools and workshop equipment required

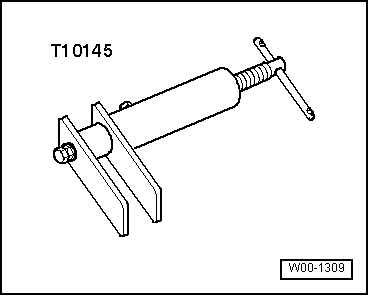

  • Piston Resetting Tool -T10145-

Volswagen Tiguan. W00-1309

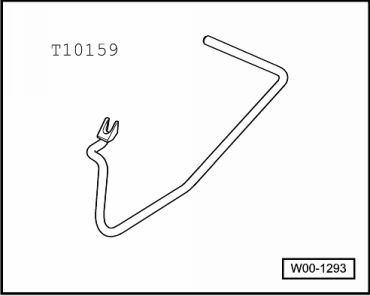

  • Release Tool - Brake Servo -T10159- or Brake Servo Release Tool -T10159A-

Volswagen Tiguan. W00-1293

  • Torque Wrench 1331 5-50Nm -VAG1331-

Volswagen Tiguan. W00-0427

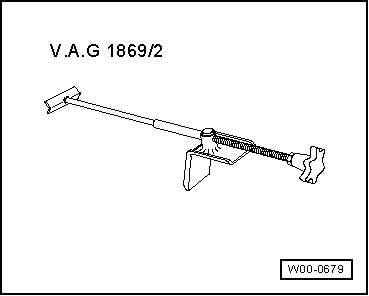

  • Brake Pedal Actuator -VAG1869/2-.

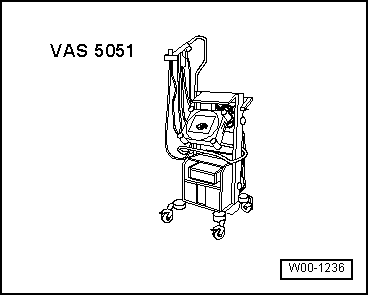

  • Vehicle Diagnostic Tester

Volswagen Tiguan. W00-0679

  • Diagnostic Cable -VAS5051/1- or Diagnostic Cable -VAS5051/3-

Volswagen Tiguan. W00-1236
