Volkswagen Tiguan Service and Repair Manual: Two-Part Synthetic Adhesion Filler

Definition:

  • Two-Part Synthetic Adhesion Filler -LKF 696 009 A2-, white
  • Two-Part Synthetic Adhesion Filler -LKF 696 040 A2-, black

Product Description

The two-part synthetic adhesion filler is a high-quality two-part primer filler for plastic parts.

Properties:

  • Adhesion on all standard vehicle plastic parts
  • Can be used wet-in-wet
  • Efficient coating system
  • Easy to handle
  • Very long processing time

Application Instructions

Base Surface

Suitable base surfaces:

  • All standard plastic parts used on car exteriors
  • PP, PP/EPDM, ABS, SAN, PC, PA, PUR-RIM, R-TPU, TPO, PBTP, PVC
  • PUR, PUR soft foam
  • UP-GF

Pre-treatment of base surfaces:

The base surface must be free of separating agents.

Before cleaning plastic parts, temper them for 60 minutes at +60 ℃ (140 ºF) to "sweat out" the separating agents.

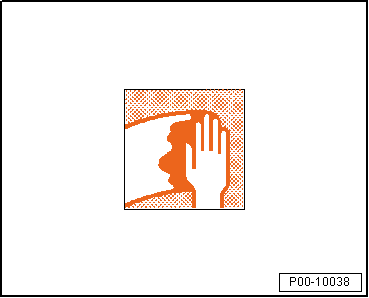

  • Clean using Antistatic Plastic Cleaner -LVM 001 001 A2- or a milder Silicone Remover, Long -LVM 020 100 A5-.

Volswagen Tiguan. P00-10038

Note

  • The effort needed for cleaning depends on the type and quantity of the separating agent used. We recommend using a sanding pad to help cleaning
  • Let the thinner evaporate (for example, air-drying overnight at room temperature or 30-40 minutes at +60 ℃ (140ºF) ).

Volswagen Tiguan. P00-10038

  • Before applying the adhesive filler, lightly clean again using Antistatic Plastic Cleaner -LVM 001 001 A2- or Silicone Remover, Long -LVM 020 100 A5- (antistatic effect).

Processing

Thinner:

  • Do not add any thinner!

Mixture ratio:

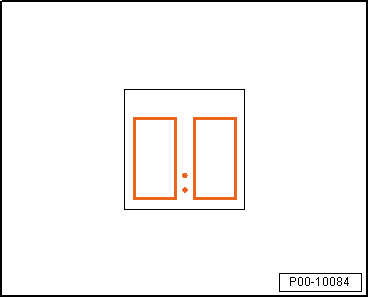

  • 1:1 by volume with Two-Part Adhesive Filler Hardener -LHA 005 000 A2-.

Volswagen Tiguan. P00-10084

Processing time/pot life:

  • Adjustment for spraying 7 to 9 hours at +20 ºC (68 ºF)

Volswagen Tiguan. P00-10029

Note

Do not add any thinner! The material can be sprayed after adding the hardener.

Application type "coat"

Volswagen Tiguan. P00-10032

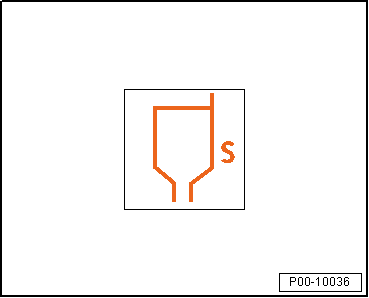

  • Processing viscosity 4 mm for +20 ºC (68 ºF), German Industry Standardization 53211

Processing viscosity 4 mm gravity feed spraygun "Compliant" and "HVLP":

DIN 4 mm: 16 to 18 seconds

ISO 4 mm: 37 to 45 seconds.

Volswagen Tiguan. P00-10036

  • Set spray nozzle (see manufacturer's information): "Compliant" 1.3 to 1.4 mm.
  • Set spray nozzle (see manufacturer's information): "HVLP" 1.4 to 1.5 mm.
  • Set spray pressure (see manufacturer's information): "Compliant" to 2.0 to 2.5 bar.
  • Set atomizing pressure (see manufacturer's information): "HVLP" 0.7 bar.

Volswagen Tiguan. P00-10029

  • Apply an application (apply a thin application and then a normal application after that).
  • The recommended dry layer thickness is between 25 and 30 um.

Volswagen Tiguan. P00-10032

Drying

Air dry at +20 ºC (68 ºF) room temperature, can be sprayed over after 15 to 20 minutes

Volswagen Tiguan. P00-10027

Reworking

Volswagen Tiguan. P00-10029

After a ventilation time of 15 to 20 minutes (up to a maximum of 24 hours), spray on a suitable top coat wet-in-wet at +20 ºC (68 ºF).

Note

  • If needed, the two-part plastic adhesive filler can be lightly sanded with P 800-1000 grit wet sandpaper after drying for 30 minutes (at +60 ºC (140 ºF) object temperature) or after two hours (+20 ºC (68 ºF) room temperature).
  • Any faults in the base surface can be filled in with Two-Part Fine Filling Paste -LSP 784 002 A2- after the two-part plastic adhesive filler has dried.
  • Filler patches must be insulated with two-part synthetic adhesion filler before applying the top coat.

Volswagen Tiguan. P00-10026

Afterwards, can be painted over with:

  • Water-based base paint and two-part HS clear coat
  • Two-Part HS Top Coat

WARNING

Painted plastic parts may not be cleaned with a high-pressure cleaner before 6 weeks have passed. The minimum distance between the nozzle and the object is 30 cm.

Personal Protective Equipment:

  • Note the safety data sheets
  • Wear the personal protective equipment during application

Volswagen Tiguan. P00-10820

Characteristics

Delivery Viscosity Two-Part Adhesive Filler Hardener 11 seconds
Two-Part Synthetic Adhesion Filler 100 seconds
Flashpoint: above +23 ºC (73.4 ºF)

Storage

The guaranteed shelf life is 24 months from production date. Use no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).

Volswagen Tiguan. P00-10050

Storage Conditions

The prescribed storage temperature for the two-part synthetic adhesion filler is +20 ºC (68 ºF).

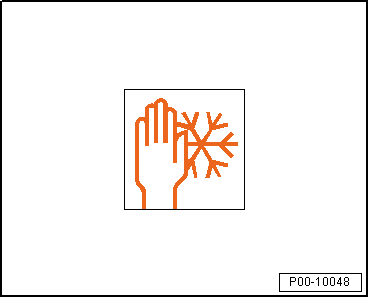

The prescribed storage temperature for the two-part adhesive filler hardener is +20 ºC (68 ºF) (not to fall below +5 ºC (41 ºF) ). If exposed to frost, the hardener should be rewarmed to +20 ºC (68 ºF). Now it is suitable for use.

Volswagen Tiguan. P00-10048
