Volkswagen Tiguan Service and Repair Manual: Two-Part HS Performance Filler

Definition:

  • Two-Part HS Performance Filler -LVM 014 100 A4-, white
  • Two-Part HS Performance Filler -LVM 014 173 A4-, dark gray
  • Two-Part HS Performance Filler -LVM 014 190 A4-, anthracite

Product Description

These two-part performance fillers are high-quality two-part HS acrylic-resin-based fillers.

Properties:

  • Dries quickly
  • Very good spray mist characteristics
  • Great stability under load
  • Sands very well
  • High solid content provides a high yield

Application Instructions

Base Surface

Suitable base surfaces:

  • Sheet steel that has been cleaned, sanded and primed with Two-Part Wash Primer -LHV 043 000 A2- or One-Part Wash Primer -LVM 044 007/171 A2-, galvanized/electrolytically zinced sheet steel or soft aluminum
  • Fine or non-sanded, thoroughly cleaned, original factory primer.
  • Sanded factory paint or old paint (except TPA)
  • Surfaces prepared with two-part polyester products and then sanded very fine.
  • Cleaned and sanded UP-GF surfaces, free of separating agents

Pre-treatment of base surfaces:

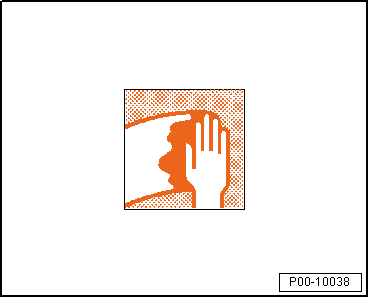

  • Carefully clean using Silicone Remover -LVM 020 000 A5- or Silicone Remover, Long -LVM 020 100 A5-.

Volswagen Tiguan. P00-10038

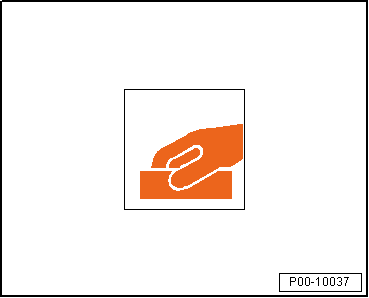

  • Then, sand.

Volswagen Tiguan. P00-10037

  • Use a suitable cleaning agent before reworking to ensure a clean and residue-free surface.

Note

Stirring the Two-Part HS Performance Filler -LVM 014 ...- in the mixer is recommended.

Volswagen Tiguan. P00-10038

Processing

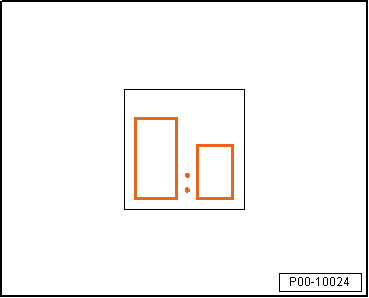

Mixture ratio:

5:1 by volume with:

  • Two-Part VHS Performance Hardener -LVM 009 038 A2-
  • Two-Part VHS Performance Hardener, Long -LVM 009 039 A2-
  • (for very high technological resistance)

Volswagen Tiguan. P00-10024

Note

  • Measuring by weight is possible with the Wizard Plus.
  • Please observe the country-specific explosion protection regulations.

Processing time/pot life:

  • Ready to spray 45 to 75 minutes at +20 ºC (68 ºF) (depending on the hardener and thinner used)

Thinner:

  • Two-Part Thinner -LVE 009 001 A5-
  • Two-Part Thinner, Long -LVM 009 300 A2-
  • Two-Part Thinner, Plus -LHA 014 000 A5-
  • Two-Part Thinner, Special -LVM 009 200 A2/A5-

Volswagen Tiguan. P00-10029

Application type "coat"

Volswagen Tiguan. P00-10032

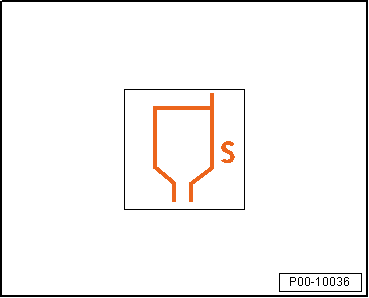

  • Processing viscosity 4 mm for +20 ºC (68 ºF) German Industry Standardization 53211

Processing viscosity 4 mm gravity feed spraygun "Compliant" and "HVLP" is the mixed viscosity.

Volswagen Tiguan. P00-10036

Adding 10 to 15 % VHS performance hardener at +20 ºC (68 ºF) material temperature.

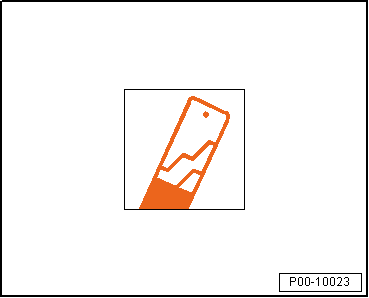

  • Use a measuring stick to mix when pouring in the hardener.

Volswagen Tiguan. P00-10023

  • Set spray nozzle (see manufacturer's information): "Compliant" 1.4 to 1.8 mm.
  • Set spray nozzle (see manufacturer's information): "HVLP" 1.7 to 1.9 mm.
  • Set spray pressure (see manufacturer's information): "Compliant" to 1.5 to 2.0 bar.
  • Set atomizing pressure (see manufacturer's information): "HVLP" 0.7 bar.

Volswagen Tiguan. P00-10029

  • One to three spray applications (with intermediate drying time) are required to get the recommended dry layer thickness of between 60 and 250 um.

Volswagen Tiguan. P00-10032

Drying

The material can be sanded after 2 to 3 hours (layer thickness of 60 to 150 um after air drying at +20 ºC (68 ºF) room temperature).

If the applied layer thickness is between 150 and 250 um, the material should be allowed to dry over night and then sanded.

Volswagen Tiguan. P00-10027

Final drying time with forced drying is a minimum of 5 to 15 minutes.

Volswagen Tiguan. P00-10026

Forced drying at +60 ºC (140 ºF) object temperature for 15 to 20 minutes for a layer thickness of between 60 and 150 um; 20 to 25 minutes for a layer thickness of between 150 and 250 um

Volswagen Tiguan. P00-10027

Final drying time for IR drying is a minimum of 5 to 10 minutes.

Volswagen Tiguan. P00-10026

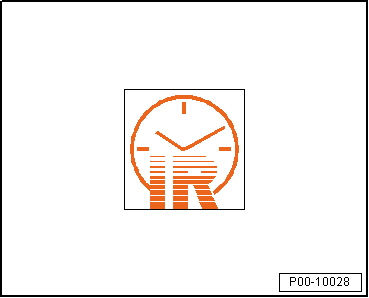

When IR drying (depending on layer thickness), use the short-wave radiator for 10 minutes (of these, dry for 2 minutes at 50 % power and 8 minutes at 100 % power)

Volswagen Tiguan. P00-10028

Further Processing

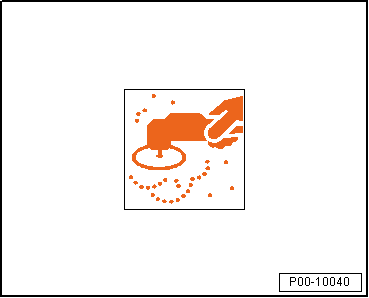

  • Dry-sand with rotary sander and dust extraction. P500-600 grit sandpaper

Volswagen Tiguan. P00-10040

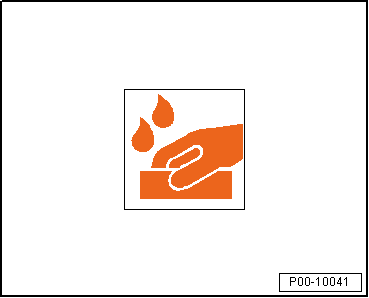

  • Wet-sand with P800-1000 grit sandpaper

Volswagen Tiguan. P00-10041

Reworking

Can be painted over with:

  • Water-based base paint and two-part HS clear coat
  • Two-Part HS Top Coat

Volswagen Tiguan. P00-10029

Special Instructions

Elastification for rigid and semi-rigid plastics:

  • The base material must first be mixed with 15 % Elastic Additive -ALZ 011 001-. 4:1 mixing ratio for VHS performance hardeners and 10 % thinner.
  • Any faults in the base surface can be filled with two-part polyester filling paste. After drying and intermediate sanding, insulate the filler patches with two-part VHS performance filler.
  • The best insulating effect, even with critical surfaces, is achieved with a medium layer of 80 to 120 um in 2 spray passes, with air-drying overnight, or oven or IR drying. With critical surfaces, fine preparation is required and the parts must be evenly filled.
  • The Two-Part HS Vario Filler -LGF 786 004 A4- (gray) is recommended for insulating thermoplastic coatings.
  • When air drying, a minimum of +15 ºC (59 ºF) is recommended.

Volswagen Tiguan. P00-10023

Personal Protective Equipment:

  • Note the safety data sheets
  • Wear the personal protective equipment during application

Volswagen Tiguan. P00-10820

Characteristics

Delivery Viscosity Thixotropic
Flashpoint: above 23 ºC (73.4 ºF)
VOC value: 2004/42/IIB(c)(540)540 The EU limit for this product (product category IIB.b) in ready-to-use form is a maximum of 540 g/L volatile organic compounds. The VOC value of this product in ready-to-use form is a maximum of 540 g/L.

Storage

The guaranteed shelf life is:

  • 24 months from date of manufacture for Two-Part HS Performance Filler -LVM 014 ...-.
  • 12 months from date of manufacture for Two-Part VHS Performance Hardener -LVM 009 038 A2-.
  • 36 months from date of manufacture for Two-Part VHS Performance Hardener, Long -LVM 009 039 A2-.

Volswagen Tiguan. P00-10050

Use no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).
