Volkswagen Tiguan Service and Repair Manual: Two-Part IR Premium Filling Paste

Part names:

  • Two-Part IR Premium Filling Paste -LSP 787 220 A1-
  • Two-Part IR Premium Filling Paste -LSP 787 220 A2-
  • Two-Part IR Premium Filling Paste -LSP 787 220 A3-

Product Description

The Two-Part IR Premium Filling Paste -LSP 787 220 A1/A2/A3- is a high-quality polyester filling paste used for vehicle paintwork repairs.

Other Application Areas:

  • All conventional metallic base surfaces
  • Also adheres very well to galvanized base surfaces.
  • Sands well
  • Non-porous and easily-shapeable.
  • Well-suited for IR drying

Application Instructions

Base Surface

Suitable base surfaces:

  • Steel Panel
  • Galvanized sheet steel
  • Aluminum
  • Well-sanded factory or old paint
  • Hardened and sealed two-part filler/two-part primers
  • Cleaned and sanded UP-GF surfaces, free of separating agents

Caution

This filling paste may not be applied to PVB (acid-hardening) adhesive primers or one-part primers (for example, synthetic resin).

Application on thermoplastic or elastic coatings is also not possible.

Pre-treatment of base surfaces:

  • Remove any grease and sand the surface.
  • Bare metallic base surfaces are to be insulated with Two-Part Wash Primer -LHV 043 000 A2- and then filled with Two-Part HS Performance Filler. Sand the filler after drying.
  • With UP-GF underbodies, clean components of any residual agents and sand the surface.
  • Before reworking, apply a suitable cleaning agent to all base surfaces to ensure a clean and residue-free surface.

Volswagen Tiguan. P00-10037

Processing

Application type:

  • Apply filling paste.

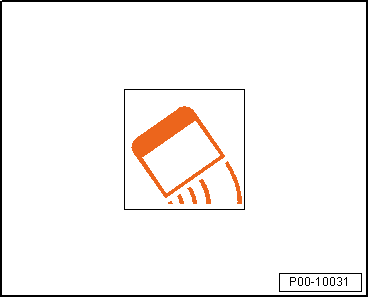

Volswagen Tiguan. P00-10031

Mixture ratio:

  • Add 2 to 3 % by weight Two-Part Hardener -LVM 018 000 A1/A2- or, especially when dealing with high temperatures, Two-Part Hardener, Long -LVM 018 100 A2-.

Note

Avoid using excessive hardener paste, to prevent it from bleeding through, especially on daylight colors and light metallic colors.

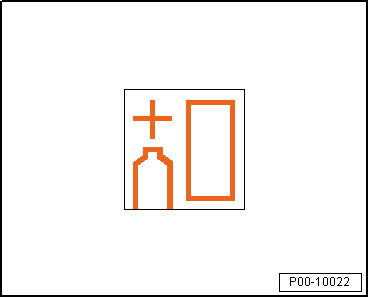

Volswagen Tiguan. P00-10022

Curing Time:

  • At +20 ºC (68 ºF) room temperature for approximately two to four minutes.

Reaction Temperature:

  • Minimum +5 ºC (41 ºF)

Drying

Air Drying:

  • At +20 ºC (68 ºF) room temperature for about 20 to 30 minutes.

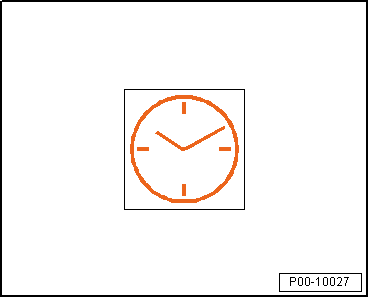

Volswagen Tiguan. P00-10027

Infrared drying:

  • Short-wave heaters for three minutes (at 50 % power)
  • Medium-wave heaters for five minutes.

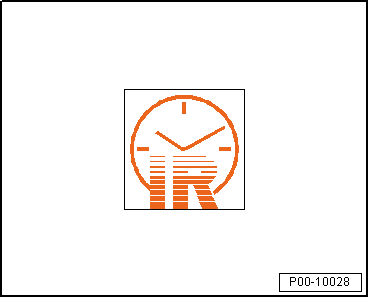

Volswagen Tiguan. P00-10028

Sanding compatibility

In connection with the aforementioned drying time:

  • Dry-sand the pre-sanding with P80-240 grit sandpaper
  • Dry-sand the final sanding with P240-400 grit sandpaper

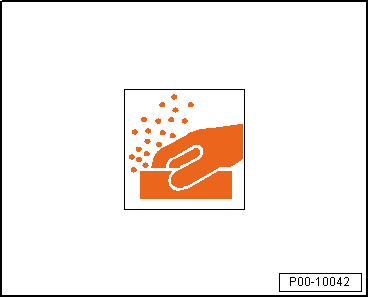

Volswagen Tiguan. P00-10042

Note

Temperature resistance up to +80 ºC (176 ºF).

Reworking

Recommended structure:

  • Fine filling paste by itself.
  • Rework fine filling paste with Two-Part Fine Filling Paste -LSP 784 002 A2- or with Two-Part Spray Filling Paste -ALN 788 007- (except on galvanized steel).
  • Prime sanded-through areas and filled areas again with Two-Part Wash Primer -LHV 043 000 A2- and then fill with Two-Part HS Performance Filler.

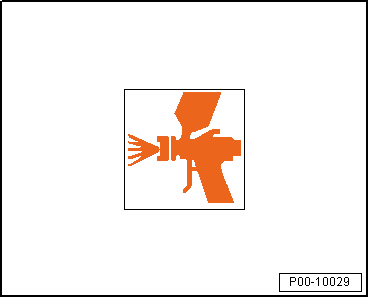

Volswagen Tiguan. P00-10029

  • Then paint over with the top coat.

Note

Before filling, dry-sand the entire surface with P280-400 sandpaper.

Personal Protective Equipment:

  • Note the safety data sheets
  • Wear the personal protective equipment during application

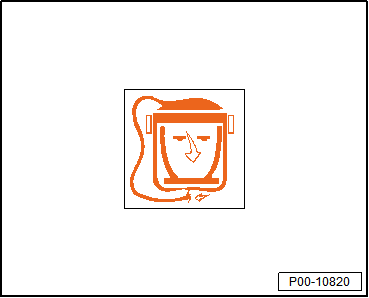

Volswagen Tiguan. P00-10820

Characteristics

Delivery Viscosity pasty
Flashpoint: Filling paste over 23 ºC (73.4 ºF)
VOC value: 2004/42/IIB(b)(250)150 The EU limit for this product (product category IIB.b) in ready-to-use form is a maximum of 250 g/L volatile organic compounds. The VOC-value of this product in ready-to-use form is a maximum of 150 g/L.

Storage

The guaranteed shelf life is 12 months from the production date. Use no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).

Storage Conditions

  • Storage Temperature +20 ºC (68 ºF) (temperature should not exceed +30 ºC (86 ºF) ).

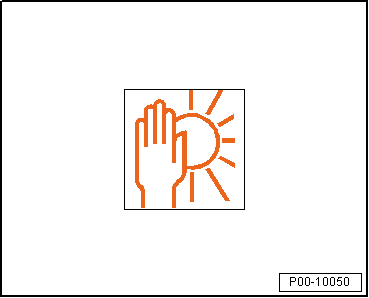

Volswagen Tiguan. P00-10050

    Two-Part Spray Filling Paste
    Definition: Two-Part Spray Filling Paste -ALN 788 007- Product Description The Two-Part Spray Filling Paste -ALN 788 007- is a two-part spray filling paste used to level gross irregularities for v ...

    Two-Part Diamond Aluminum Filling Paste
    Definition: Two-Part Diamond Aluminum Filling Paste, Powder -DA 004 200 A2- Two-Part Diamond Aluminum Filling Paste, Hardener -DA 004 201 A1- Two-Part Diamond Aluminum Filling Paste, Hardener -DA ...
