Roof Grab Handles, Removing and Installing

Note

The illustration shows the right front grab handle, removing and installing the remaining grab handles is identical.

Removing

Swing down the grab handle and open the two cover caps -1- and -2- using a small screwdriver.
Remove the two screws -3- (2 Nm) and remove the grab handle.

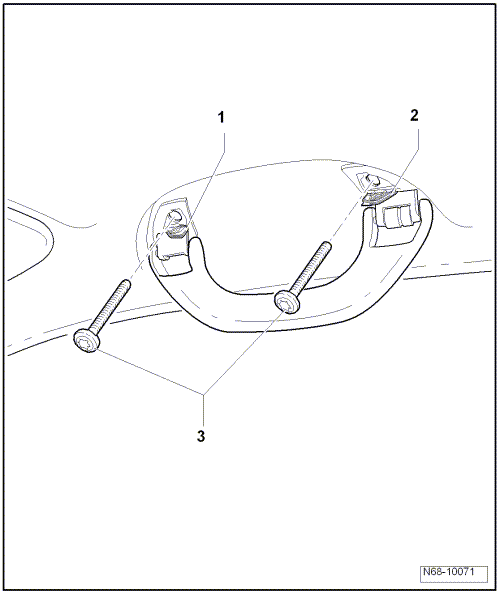

Volswagen Tiguan. Roof Grab Handles, Removing and Installing

Installing

Install in reverse order of removal.

Special Tools

Trim removal wedge -3409-

Volswagen Tiguan. W00-0016

Torque wrench -VAG1783-

Volswagen Tiguan. W00-0990

Torque wrench -VAG1331-

Volswagen Tiguan. W00-0427
