Removing

  • Open the glass sunroof panel all the way forward.

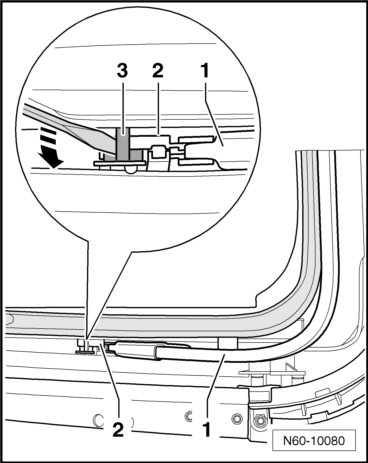

  • Unclip the clips -3- using a screwdriver from the mounting bracket -2- for the wind deflector -1- .

Volswagen Tiguan. Wind Deflector, Removing and Installing

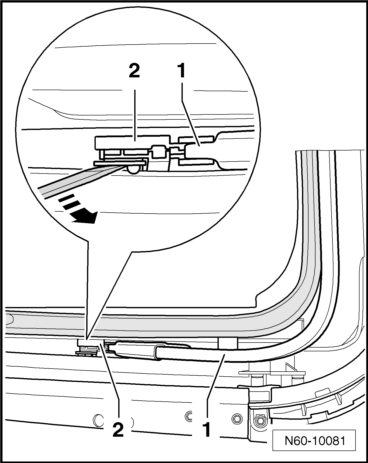

  • Unclip the mounting bracket -2- for the wind deflector -1- using a screwdriver.

Volswagen Tiguan. Wind Deflector, Removing and Installing

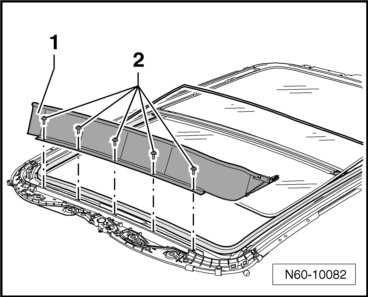

  • Remove the screws -2- on the wind deflector -1- .
  • Remove the wind deflector -1- upward.

Volswagen Tiguan. Wind Deflector, Removing and Installing

Installing

Install in reverse order of removal.

Tightening Specification

Wind deflector screws 2 Nm

Note

  • The wind deflector bracket must audibly engage.
  • Always replace the brake clips after it has been disassembled.

Wind Deflector Bearing, Removing and Installing

Removing

  • Remove the wind deflector

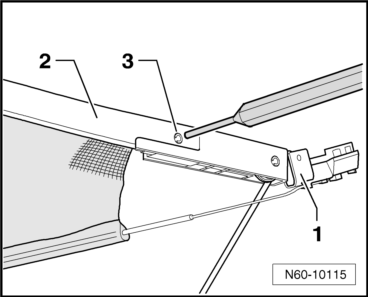

  • Remove the mounting pin -3- from the upper screen frame -2- and the wind deflector bearing -1- .

Volswagen Tiguan. Wind Deflector Bearing, Removing and Installing

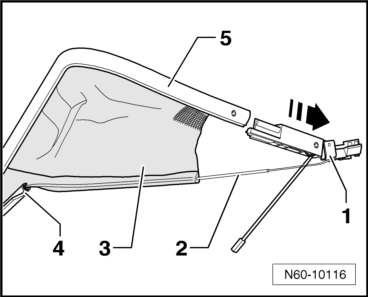

  • Remove the wind deflector bearing -1- in the direction of the -arrow- from the upper screen frame -5- .

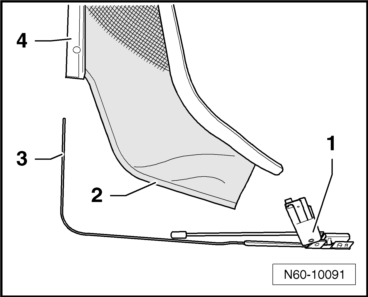

  • Remove the tension wire -2- from the lower screen frame -4- and remove the screen -3- .

Volswagen Tiguan. Wind Deflector Bearing, Removing and Installing

Installing

  • Slide the tension wire -3- carefully through the net -2- and all the way into the lower screen frame -4-.

Installation is performed in reverse order of the removal.

Use a new mounting pin to secure the wind deflector bearing.

  • Install the wind deflector.

Volswagen Tiguan. Wind Deflector Bearing, Removing and Installing

Automatic Rotary Switch for Glass Sunroof Panel and Sun Shade, Removing and Installing

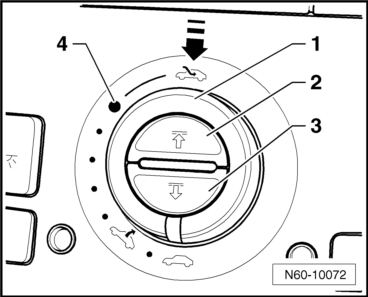

  • Remove the automatic rotary switch for the glass panel of the panorama sunroof.

Volswagen Tiguan. Automatic Rotary Switch for Glass Sunroof Panel and Sun Shade, Removing and Installing

    Outer Seal, Replacing and Installing
    Remove the front glass panel. Remove the rear glass panel. Remove the outer seal -1- with the adhesive surface -3- from the roof -2-. Cut the profile of the outer seal -1- in the a ...

    Sunroof Motor, Removing and Installing
    Removing Remove front light and control unit. WARNING A flat cable is bonded to the brace in the lamp opening in some versions. Loosen the flat cable from the brace and press it to the side when ...
