Volkswagen Tiguan Service and Repair Manual: Special Tools

Volswagen Tiguan. Special Tools

Special tools and workshop equipment required

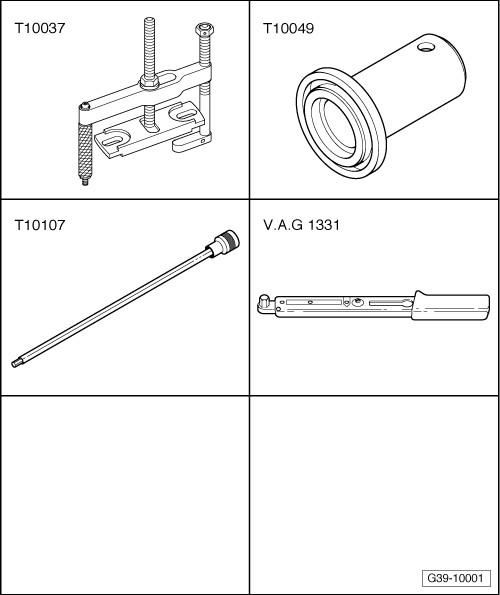

  • Puller - Flanged Shaft -T10037-
  • Seal Installer - Flange Shaft -T10049-
  • Socket And Extended Bit -T10107A-
  • Torque Wrench 1331 5-50Nm -VAG1331-
  • Drip Tray -VAG1306-
  • Sealing Grease -G 052 128 A1-

Volswagen Tiguan. Special Tools

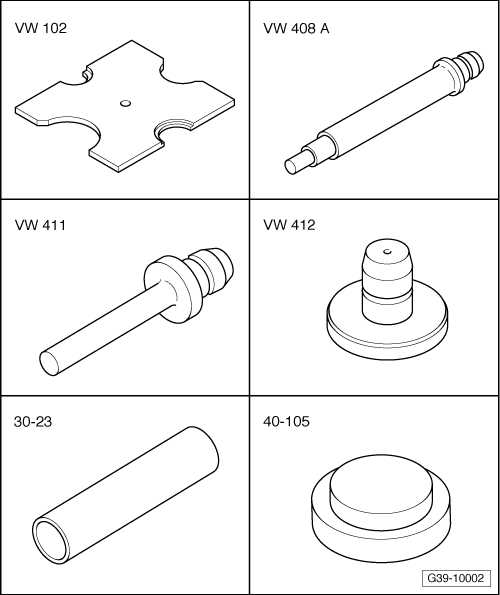

  • Press Plate -VW402-
  • Press Piece - Rod -VW408A-
  • Press Piece - Rod -VW411-
  • Press Piece - Multiple Use -VW412-
  • Press Piece - Multiple Use -30-23-
  • Press Piece - Multiple Use -40-105-

Volswagen Tiguan. Special Tools

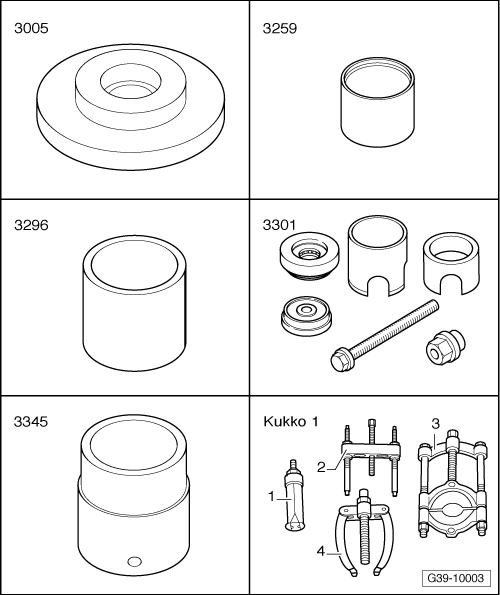

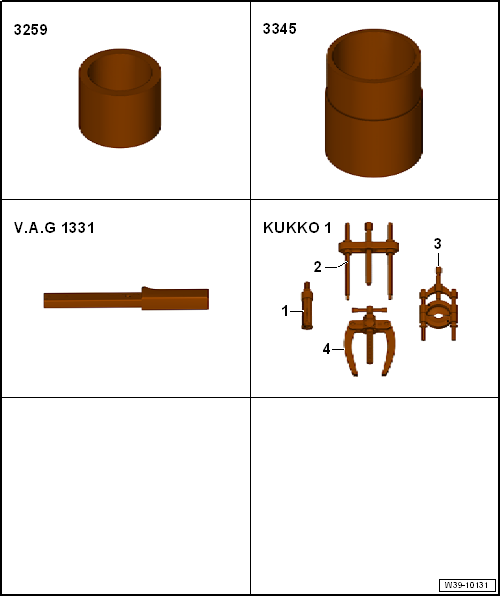

  • Press Piece - Multiple Use -3005-
  • Press Piece - Bushing -3259-
  • Press Piece - Reverse Gear Syncro -3296-
  • Subframe Bushing Tool Kit -3301-
  • Bearing Installer - Wheel Bearing -3345-
  • 1. Puller - Kukko Internal - 46-56mm -21/7-
  • 2. Puller - Kukko Puller - 60-150mm Width, 200mm Length -18/1-
  • 3. Puller - Kukko Quick Action Separating Tool - 12-75mm -17/1-
  • 4. Puller - Kukko Counterstay -22/2-

Volswagen Tiguan. Special Tools

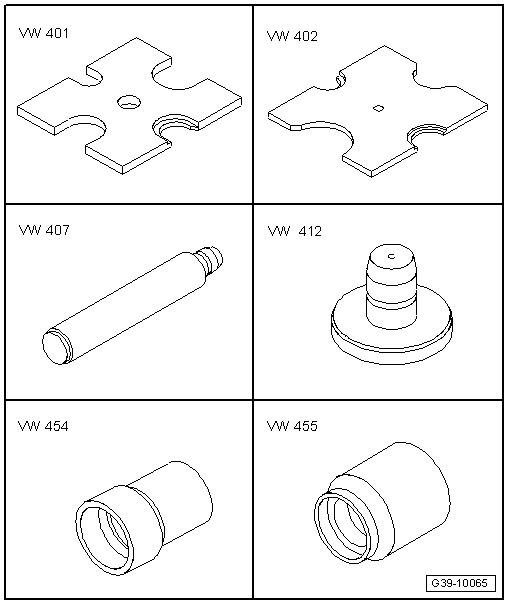

  • Press Plate -VW401-
  • Press Plate -VW402-
  • Press Piece - Rod -VW407-
  • Press Piece - Multiple Use -VW412-
  • Press Piece - Multiple Use -VW454-
  • Press Piece - Multiple Use -VW455-

Volswagen Tiguan. Special Tools

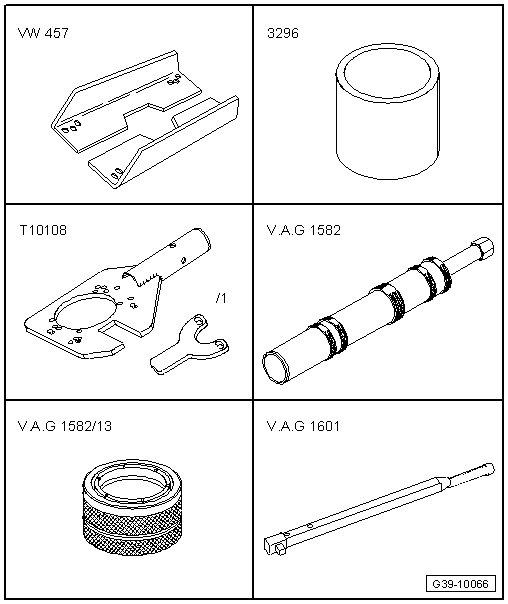

  • Support Channels -VW457-
  • Press Piece - Reverse Gear Syncro -3296-
  • Gearbox Support -T10108-
  • Gearbox Support -T10108/1-
  • Puller - Taper Roller Bearing -VAG1582- with a short sleeve
  • Puller - Taper Roller Bearing - Adapter 13 -VAG1582/13-
  • Torque Wrench 1601 -VAG1601-

Volswagen Tiguan. Special Tools

  • Slide Hammer Set -VW771-
  • Hex Ball Socket -3247-
  • Holding Fixture - Spacers -VW540/1B-
  • Drip Tray -VAG1306-
  • Sealing Grease -G 052 128 A1-

Volswagen Tiguan. Special Tools

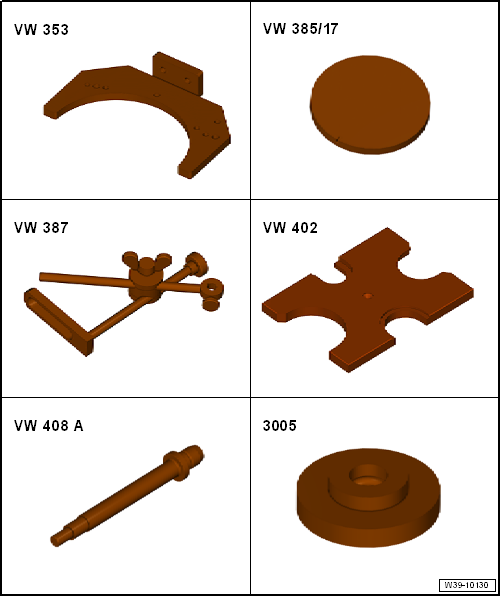

  • Transmission Support -VW353-
  • Measuring Set - Magnetic Plate - 50mm -VW 385/17-
  • Dial Gauge Holder -VW387-
  • Press Plate -VW402-
  • Press Piece - Rod -VW408A-
  • Press Piece - Multiple Use -3005-

Volswagen Tiguan. Special Tools

  • Press Piece - Bushing -3259-
  • Bearing Installer - Wheel Bearing -3345-
  • Torque Wrench 1331 5-50Nm -VAG1331-
  • -1-Puller - Kukko Internal - 46-56mm -21/7-
  • -4-Puller - Kukko Counterstay -22/2-

Volswagen Tiguan. Special Tools

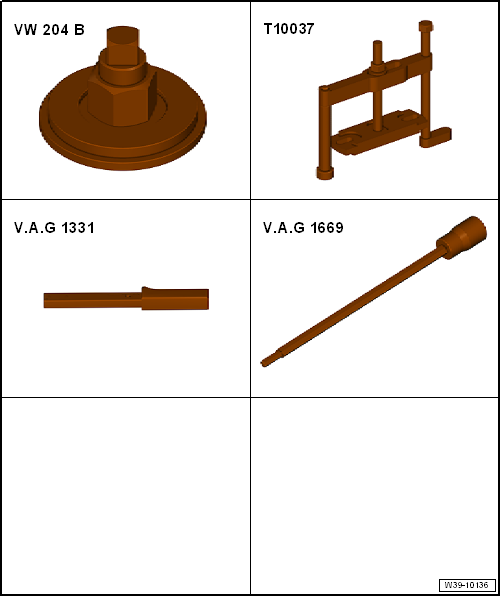

  • Seal Installer - Crankshaft -VW204B-
  • Puller - Flanged Shaft -T10037-
  • Torque Wrench 1331 5-50Nm -VAG1331-
  • Long Hex Socket -VAG1669-

Volswagen Tiguan. Special Tools

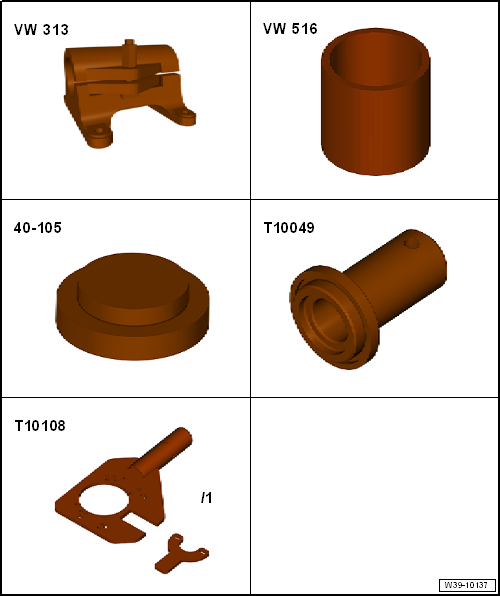

  • Holding Fixture -VW313-
  • Press Piece - 42mm -VW516-
  • Press Piece - Multiple Use -40-105-
  • Seal Installer - Flange Shaft -T10049-
  • Gearbox Support -T10108-
  • Gearbox Support -T10108/1-

Volswagen Tiguan. Special Tools

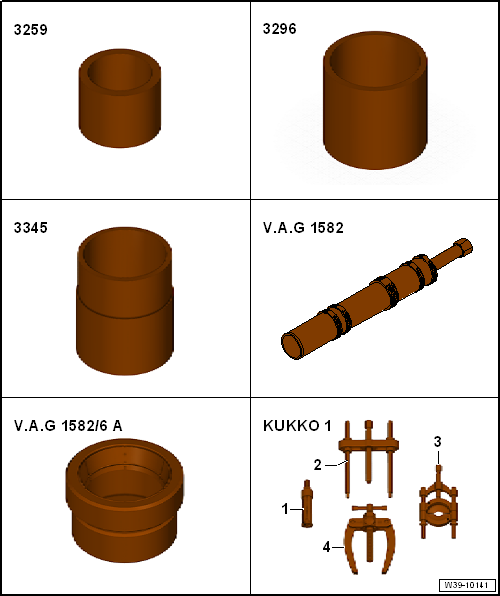

  • Press Piece - Bushing -3259-
  • Press Piece - Reverse Gear Syncro -3296-
  • Bearing Installer - Wheel Bearing -3345-
  • Puller - Taper Roller Bearing -VAG1582-
  • Puller - Taper Roller Bearing - Adapter 6A -VAG1582/6A-
  • -1-Puller - Kukko Internal - 46-56mm -21/7-
  • -2-Puller - Kukko Puller - 60-150mm Width, 200mm Length -18/1-
  • -3-Puller - Kukko Quick Action Separating Tool - 12-75mm -17/1-
  • -4-Puller - Kukko Counterstay -22/2-

Volswagen Tiguan. Special Tools

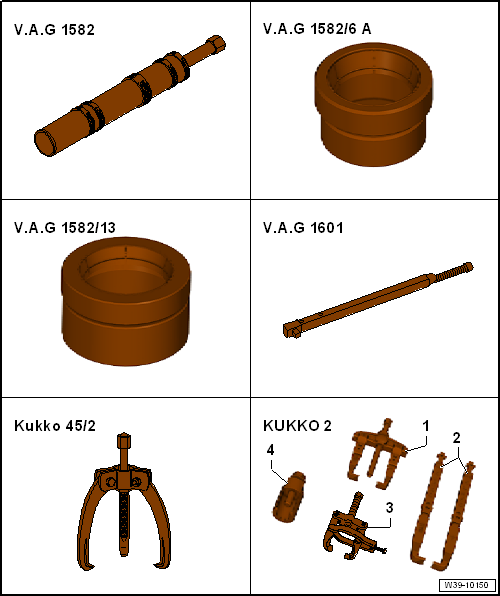

  • Puller - Taper Roller Bearing -VAG1582- with a short sleeve
  • Puller - Taper Roller Bearing - Adapter 6 -VAG1582/6- or Puller - Taper Roller Bearing - Adapter 6A -VAG1582/6A-
  • -1-Puller - Kukko 2-Arm - 70-180mm -20/10-
  • Puller - Taper Roller Bearing - Adapter 13 -VAG1582/13-
  • Torque Wrench 1601 -VAG1601-
  • Three-Arm Puller -45/2-

Volswagen Tiguan. Special Tools

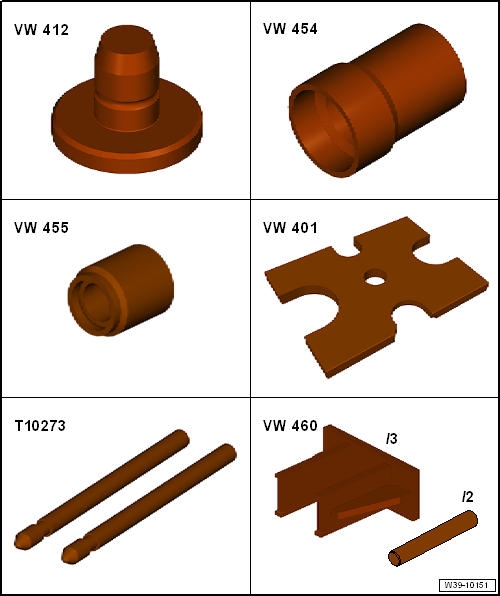

  • Press Piece - Multiple Use -VW412-
  • Press Piece - Multiple Use -VW454-
  • Press Piece - Multiple Use -VW455-
  • Press Plate -VW401-
  • or Press Plate -VW402-
  • Two M8 x 30 mm stud bolts or Guide Pins - M8 -T10273-
  • Not needed: Pin -VW460/2-

Volswagen Tiguan. Special Tools

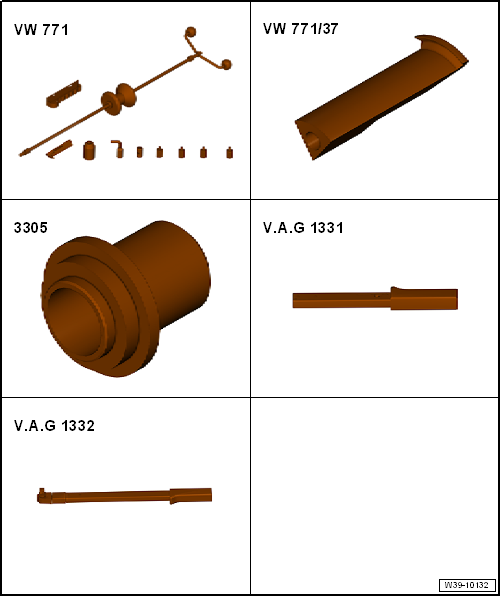

  • Slide Hammer Set -VW771-
  • Slide Hammer Set - Hook -VW771/37-
  • Seal Installer - Flange Shaft -3305-
  • Torque Wrench 1331 5-50Nm -VAG1331-
  • Torque Wrench 1332 40-200Nm -VAG1332-
  • Sealing Grease -G 052 128 A1-

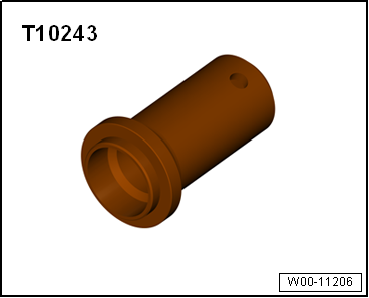

  • Seal Installer - Bevel Box -T10243-

Volswagen Tiguan. W00-11206

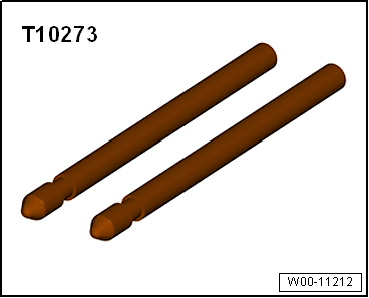

  • Two M8 x 30 mm stud bolts or Guide Pins - M8 -T10273-

Volswagen Tiguan. W00-11212

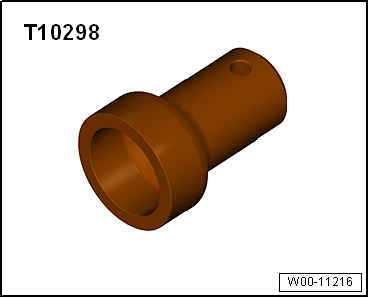

  • Seal Installer - Bevel Box -T10298-

Volswagen Tiguan. W00-11216

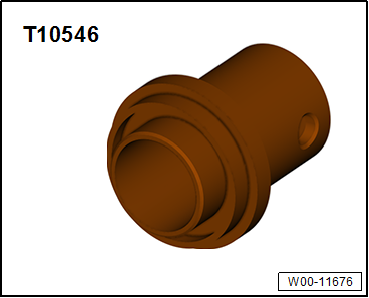

  • Thrust Piece -T10546-

Volswagen Tiguan. W00-11676

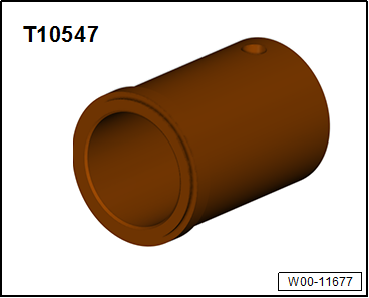

  • Thrust Piece -T10547-

Volswagen Tiguan. W00-11677

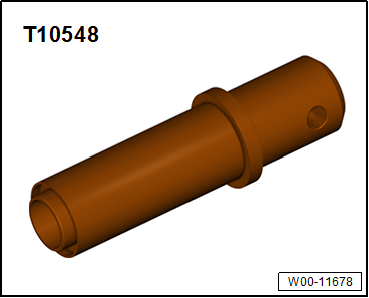

  • Thrust Piece -T10548-

Volswagen Tiguan. W00-11678

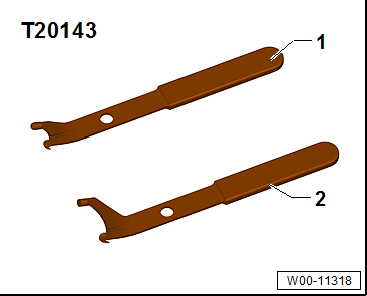

  • Puller - Crankshaft/Power Steering Seal - Component 2 -T20143/2-

Volswagen Tiguan. W00-11318

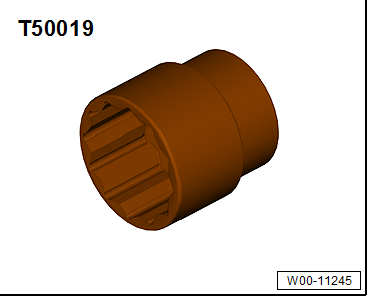

  • Socket AF 34 mm -T50019-
  • Sealing Grease -G 052 128 A1-

Volswagen Tiguan. W00-11245

  • Torque Wrench 1410 -VAG1410-

Volswagen Tiguan. W00-11174

  • Used Oil Collection and Extraction Unit -VAG1782-

Volswagen Tiguan. W00-11205

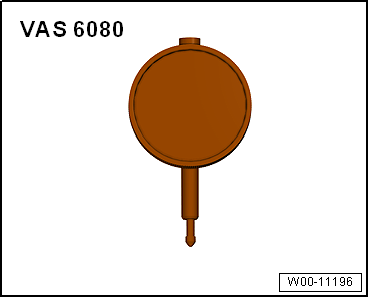

  • Dial Indicator -VAS6080A-
  • Drip Tray -VAG1306-

Volswagen Tiguan. W00-11196

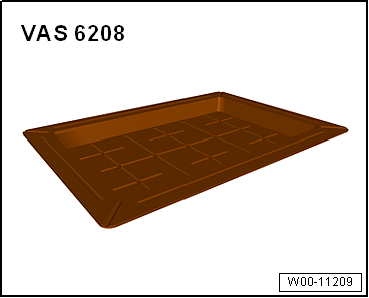

  • or Shop Crane - Drip Tray -VAS6208-

Volswagen Tiguan. W00-11209

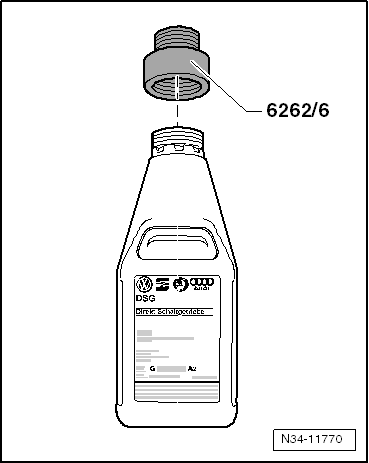

  • It is necessary to use the Oil Filler - Adapter 6 -VAS6262/6- on some oil containers.

Volswagen Tiguan. N34-11770

  • Charging Device For Haldex Coupling 2 -VAS6291A-

Volswagen Tiguan. W00-11259

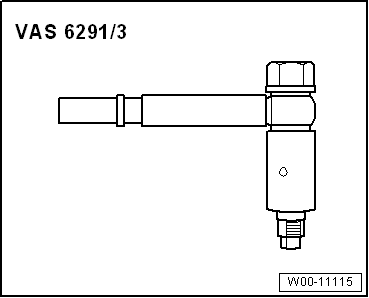

  • Charging Device For Haldex Coupling 2 - Adapter 3 -VAS6291/3-

Volswagen Tiguan. W00-11115

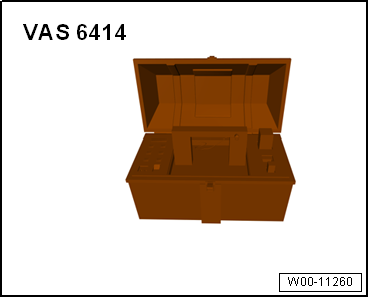

  • Inductive Heater -VAS6414-

Volswagen Tiguan. W00-11260

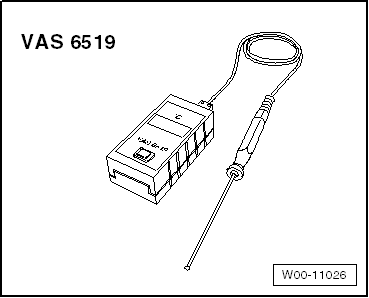

  • Digital Thermometer -VAS6519-

Volswagen Tiguan. W00-11026

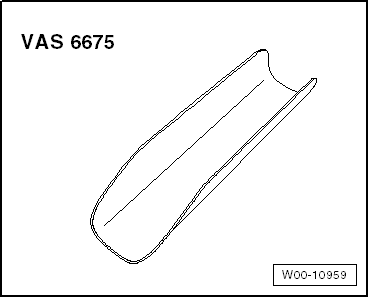

  • Flexible Funnel -VAS6675-

Volswagen Tiguan. W00-10959

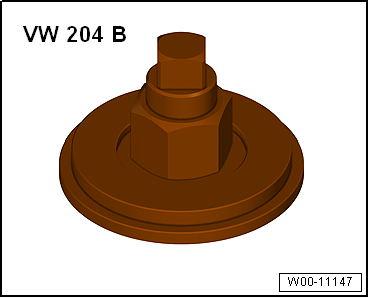

  • Seal Installer - Crankshaft -VW204B-

Volswagen Tiguan. W00-11147

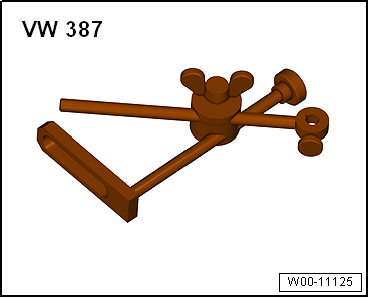

  • Dial Gauge Holder -VW387-

Volswagen Tiguan. W00-11125

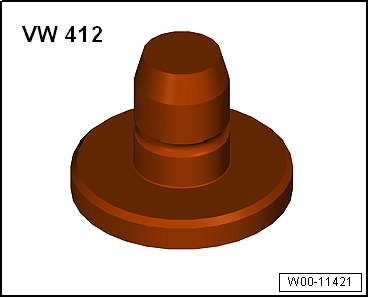

  • Press Piece - Multiple Use -VW412-

Volswagen Tiguan. W00-11421

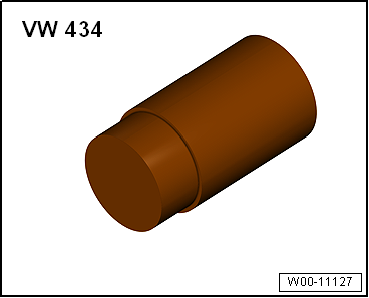

  • Press Piece - Bushing -VW434-

Volswagen Tiguan. W00-11127

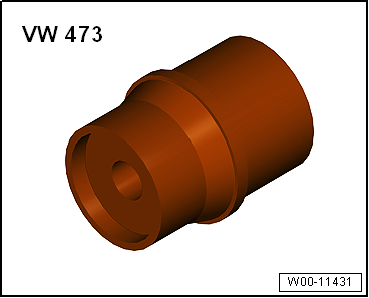

  • Press Piece - Multiple Use -VW473-

Volswagen Tiguan. W00-11431

  • Only for seal in pinion housing.

Volswagen Tiguan. W00-11128

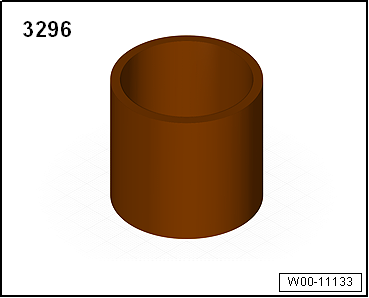

  • Press Piece - Reverse Gear Syncro -3296-
  • Drip Tray -VAG1306-
  • or Shop Crane - Drip Tray - VAS6208-
  • Sealing Grease -G 052 128 A1-
  • 2 M10 x 30 bolts
  • 4 M12 x 10 nuts

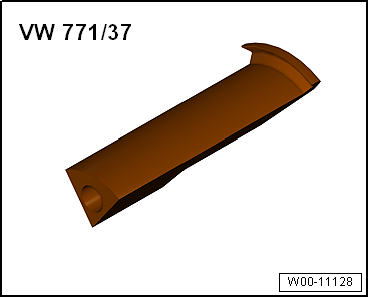

  • Slide Hammer Set - Hook -VW771/37-

Volswagen Tiguan. W00-11133

  • Seal Installer - Crankshaft -VW204B-

Volswagen Tiguan. W00-11147

  • Dial Gauge Holder -VW387-
  • Drip Tray -VAG1306-
  • or Shop Crane - Drip Tray -VAS6208-
  • 2 M10 x 30 bolts
  • 4 M12 x 10 nuts
  • Sealing Grease -G 052 128 A1-

Volswagen Tiguan. W00-11125

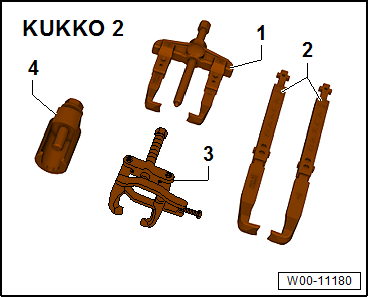

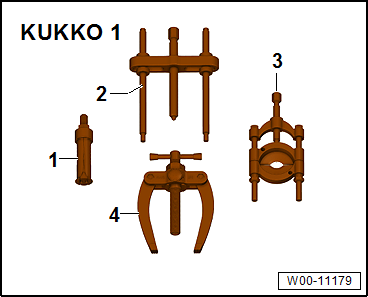

  • Puller - Kukko 2-Arm w/Side Clamp, 100mm Width, 100mm Length -204/2-

Volswagen Tiguan. W00-11180

  • -1-Internal Extractor, for example Puller - Kukko Internal - 28-37mm -21/5-

Volswagen Tiguan. W00-11179

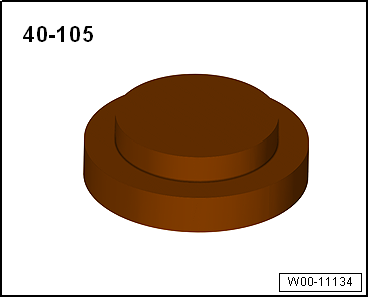

  • Press Piece - Multiple Use -40-105-

Volswagen Tiguan. W00-11134
