Volkswagen Tiguan Service and Repair Manual: Special Tools

Special tools and workshop equipment required

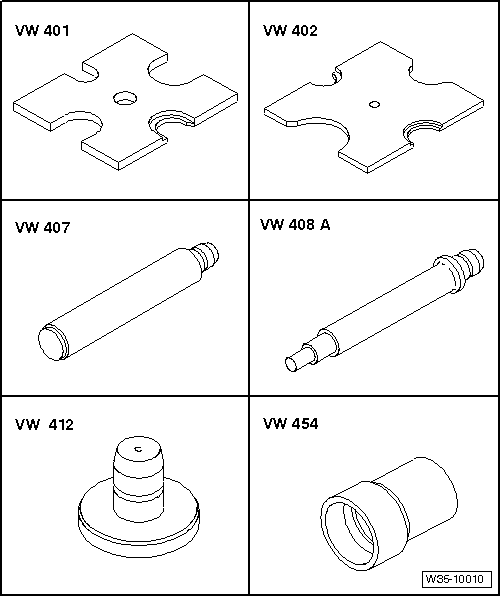

• Press Plate -VW401-
• Press Plate -VW402-
• Press Piece - Rod -VW407-
• Press Piece - Rod -VW408A-
• Press Piece - Rod -VW412-
• Press Piece - Multiple Use -VW454-

• Press Plate -VW401-
• Press Plate -VW402-
• Press Piece - Rod -VW407-
• Press Piece - Rod -VW408A-
• Press Piece - Multiple Use -VW412-
• Press Piece - 60mm -VW415A-

• Holding Fixture -VW313-
• Holding Plate -VW309A-
• or Holding Plate - VW309A-
• Transmission Support -VW353-
• Press Piece - Multiple Use -VW433-
• Press Piece - Multiple Use -VW454-
• Support Channels -VW457-
• Crankshaft Holding Fixture -VW801-

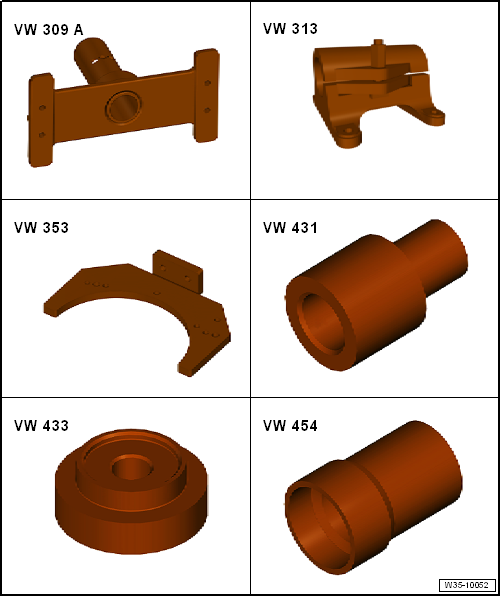

• Holding Plate -VW309A-
• or Holding Plate -VW309A-
• Holding Fixture -VW313-
• Transmission Support -VW353-
• Press Piece - Multiple Use -VW431-
• Press Piece - Multiple Use -VW433-
• Press Piece - Multiple Use -VW454-

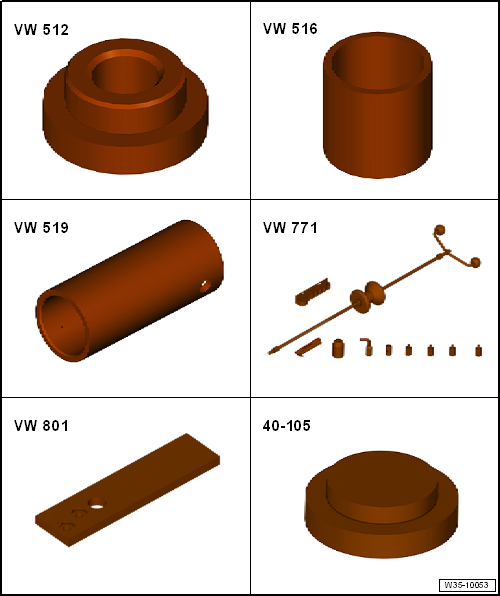

• Press Piece - Multiple Use -VW512-
• Press Piece - 42mm -VW516-
• Press Piece - Multiple Use -VW519-
• Slide Hammer Set -VW771-
• Crankshaft Holding Fixture -VW801-
• Press Piece - Multiple Use -40-105-

• Holding Fixture -VW313-
• Transmission Support -VW353-
• Dial Gauge Holder -VW387-
• Press Piece - Rod -VW407-
• Press Piece - Multiple Use -VW433-
• Seal Installer - Stator -VW792-
• Crankshaft Holding Fixture -VW801-

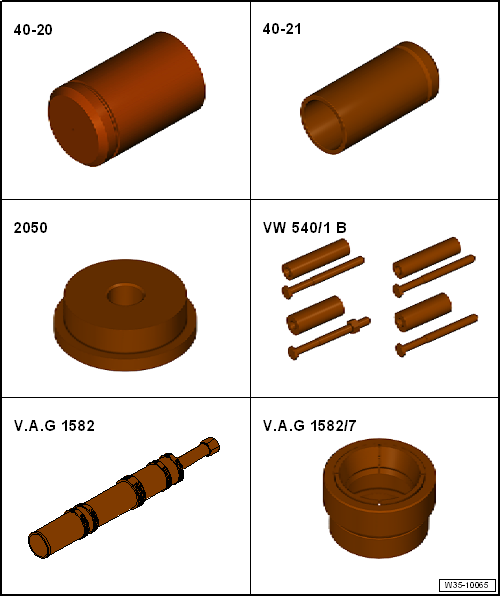

• Bearing Installer - Multiple Use -40-20-
• Bearing Installer - Differential Bearing -40-21-
• Slide Hammer - Press Plate -2050-
• Holding Fixture - Spacers -VW540/1B-
• Puller - Taper Roller Bearing -VAG1582-

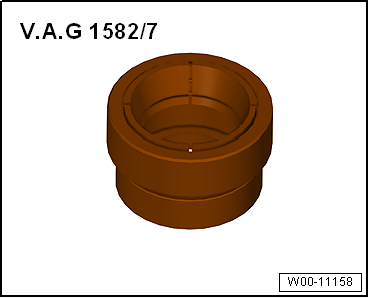

• Puller - Taper Roller Bearing - Adapter 7 -VAG1582/7-

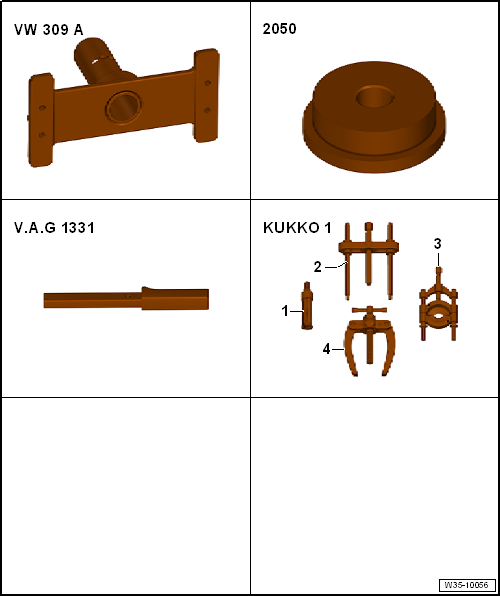

• Holding Plate -VW309A-
• or Holding Plate - VW309A-
• Slide Hammer - Press Plate -2050-
• Torque Wrench 1331 5-50Nm -VAG1331-
• -1-Puller - Kukko Internal - 46-56mm -21/7-
• -4-Puller - Kukko Counterstay -22/2-

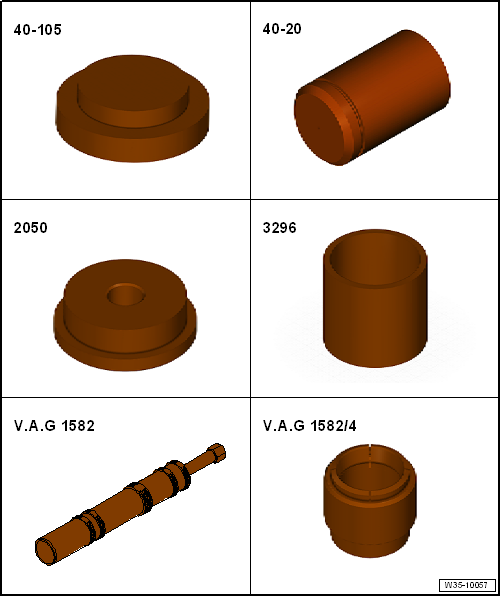

• Press Piece - Multiple Use -40-105-
• Bearing Installer - Multiple Use -40-20-
• Slide Hammer - Press Plate -2050-
• Press Piece - Reverse Gear Syncro -3296-
• Puller - Taper Roller Bearing -VAG1582-
• Puller - Taper Roller Bearing - Adapter 4 -VAG1582/4-

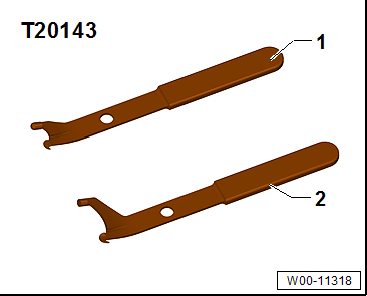

• Puller - Crankshaft/Power Steering Seal -T20143/1-

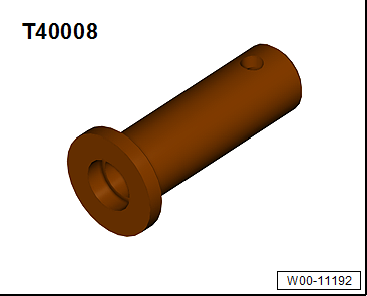

• Seal Installer - Drive Axle -T40008-

• Puller - Taper Roller Bearing - Adapter 7 -VAG1582/7-

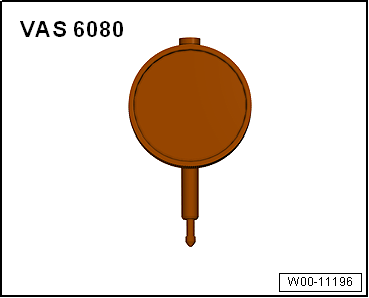

• Dial Indicator -VAS6080A-

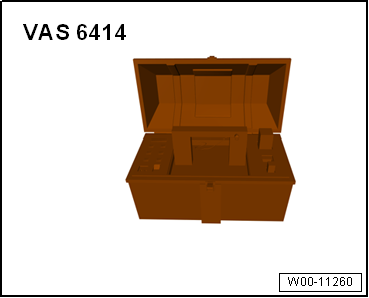

• Inductive Heater -VAS6414-

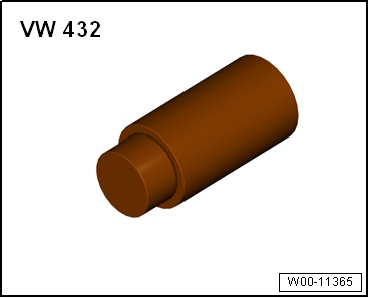

• Press Piece - Bushing - 50mm Diameter -VW432-

• -1-Puller - Kukko Internal - 28-37mm -21/5-
• -4-Puller - Kukko Counterstay -22/2-
• Feeler Gauge

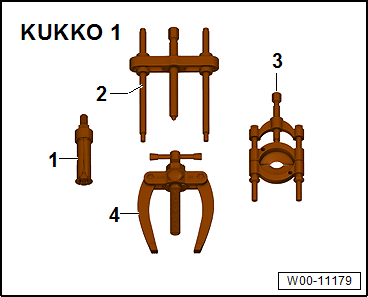

• -1-Puller - Kukko Internal - 46-56mm -21/7-
• -1-Puller - Kukko Internal - 56-70mm -21/8-
• -2-Puller - Kukko Puller - 60-200mm Width, 250mm Length -18/2-
• -3-Puller - Kukko Quick Action Separating Tool - 22-115mm -17/2-
• -4-Puller - Kukko Counterstay -Kukko 22/2-
• -3-Puller - Kukko Quick Action Separating Tool - 22-115mm -17/2-

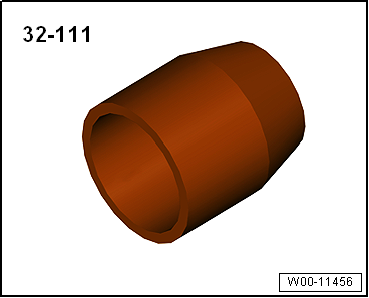

• Bearing Installer - Multiple Use -32-111-

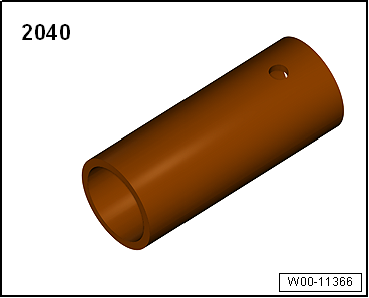

• Press Piece - Front Control Arm -2040-
