Volkswagen Tiguan Service and Repair Manual: Special Tools

Special tools and workshop equipment required

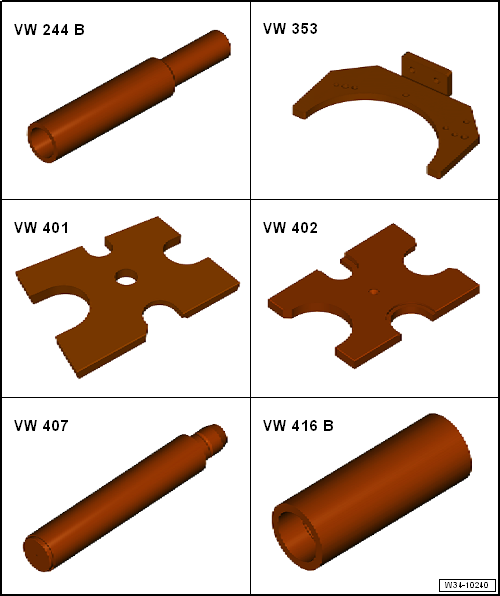

• Bearing Driver - Multiple Use -VW244B-
• Transmission Support -VW353-
• Press Plate -VW401-
• Press Plate -VW402-
• Press Piece - Rod -VW407-
• Press Piece - 37mm -VW416B-

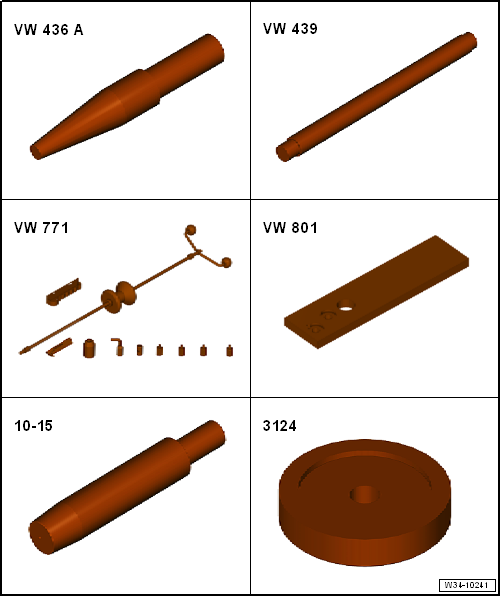

• Guide Pin -VW436A-
• Press Piece - Guide Pin -VW439-
• Slide Hammer Set -VW771-
• Crankshaft Holding Fixture -VW801-
• Guide Pins -10-15-
• Press Piece - Pivot Mount Bushing -3124-

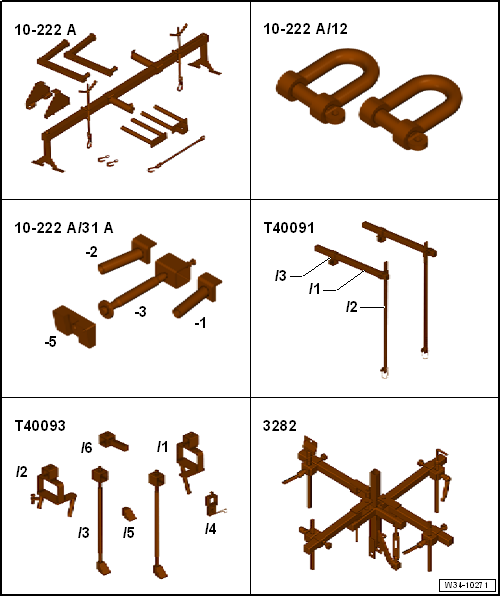

• Engine Support Bridge -10-222A-
• Engine/Gearbox Support Shackle (2 pc.) -10-222A/12-
• Engine Support Bridge - Engine Support 31 - Adapter 1 -10-222A/31-1-
• Engine Support Bridge - Engine Support 31 - Adapter 2 -10-222A/31-2-
• Engine Support - Basic Set - Square Pipe -T40091/1-
• Engine Support - Basic Set Movable Joint -T40091/3-
• Engine Support Brackets -T40093/3- from Engine Support - Supplement Kit -T40093A-
• Transmission Support -3282-

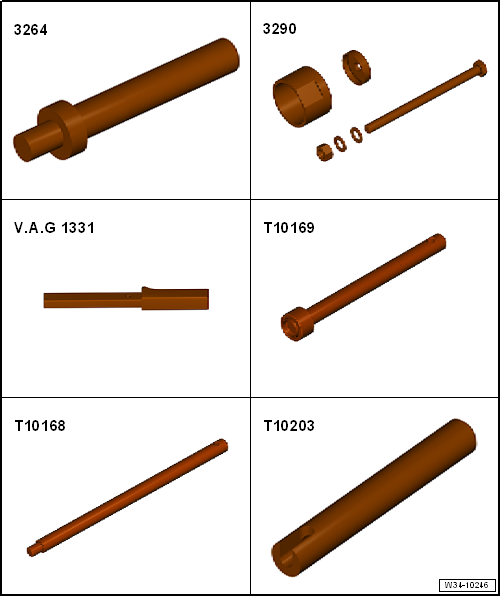

• Bearing Installer - Crankshaft Pilot Bearing -3264-
• Subframe Support Tool -3290-
• Torque Wrench 1331 5-50Nm -VAG1331-
• Bushing Driver - Selector Shaft -T10168-
• Locking Sleeve Drift -T10169- or Locking Sleeve Drift -T10362-.
• Breather Tube Tool -T10203-

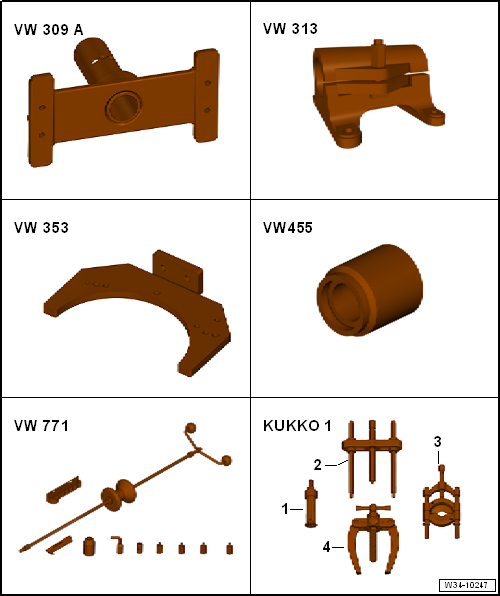

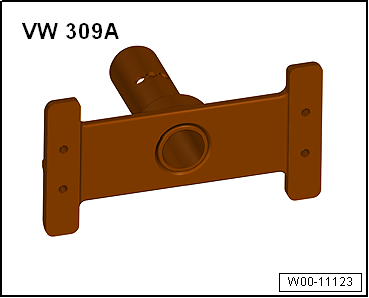

• Holding Plate -VW309A-
• or Holding Plate -VW309A-
• Holding Fixture -VW313-

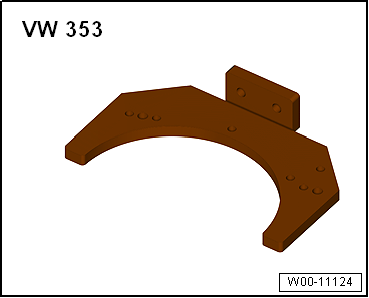

• Transmission Support -VW353-
• Press Piece - Multiple Use -VW455- or Press Piece - Front Wishbone -3160-
• Slide Hammer Set -VW771-

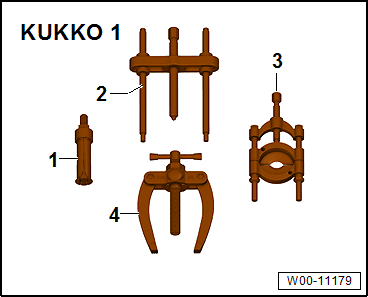

• -1-Puller - Kukko Internal - 12-16mm -21/01-
• -3-Puller - Kukko Quick Action Separating Tool - 5-60mm -17/0-
• -4-Puller - Kukko Counterstay -22/1-

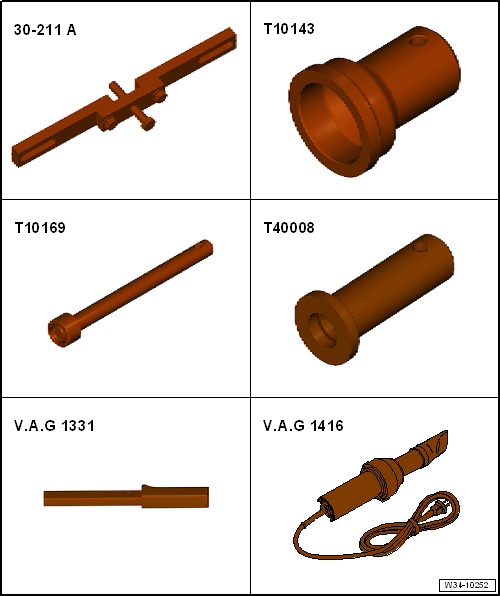

• Bracket - Multiple Use -30-211A-
• Seal Installer - Drive Flange -T10143- or Seal Installer - Output Shaft Oil Seal -T10180-
• Locking Sleeve Drift -T10169-
• or Locking Sleeve Drift -T10362-.
• Seal Installer - Drive Axle -T40008-
• Torque Wrench 1331 5-50Nm -VAG1331-
• Hot Air Blower -VAG1416-

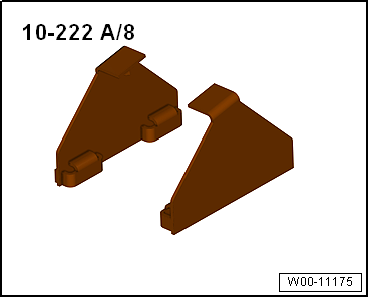

• Golf convertible Engine Support Bridge - Engine Support Feet -10-222A/8-

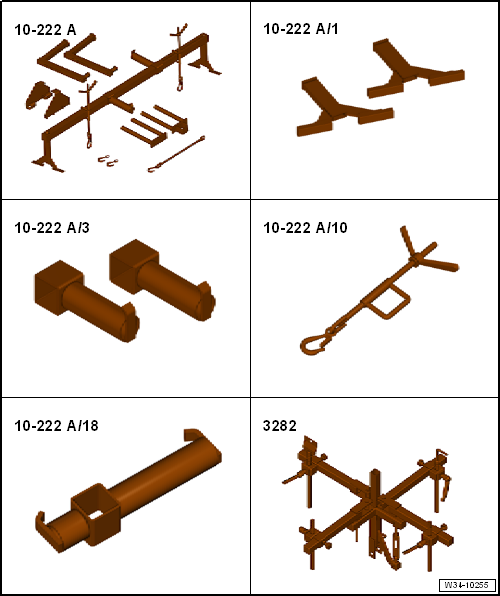

• Scirocco, CC and Passat Engine Support Bridge - Engine Bracket -10-222A/1-
• Scirocco, CC and Passat Engine Support - Bracket w/Spindle and hook -10-222A/10-
• Engine Support Bridge - Engine Support 3 -10-222A/3-
• Engine Support Bridge -10-222A-
• Engine Support Bridge - Engine Support 18 -10-222A/18-
• Transmission Support -3282-

• Socket And Extended Bit -T10107-
• or Socket And Extended Bit -T10107A-
• Puller - Flanged Shaft -T10037-
• Rear Wheel Bearing Kit - Piece 5 -3253/5-
• Cover Cap -T10460-
• Torque Wrench 1331 5-50Nm -VAG1331-
• Drip Tray -VAG1306-

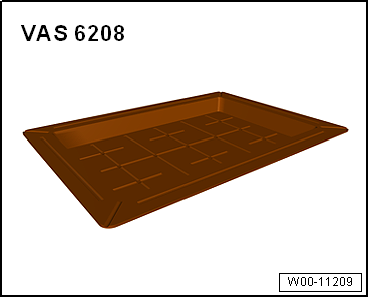

• or Shop Crane - Drip Tray - VAS6208-

• Transmission Support - Mounting Plate 33 -3282/33-
• Transmission Support Elements (determine when mounting the Adjustment Plate on the Transmission Support)
• Transmission Support Jig -3336- to transport the transmission.
• Torque Wrench 1331 5-50Nm -VAG1331-
• Torque Wrench 1332 40-200Nm -VAG1332-
• Engine and Gearbox Jack -VAS6931-

• Golf convertible Engine Support Bridge - Engine Support Feet -10-222A/8-
• Scirocco, CC and Passat Engine Support Bridge - Engine Bracket -10-222A/1-
• Scirocco, CC and Passat Engine Support - Bracket w/Spindle and hook -10-222A/10-
• Engine Support Bridge - Engine Support 3 -10-222A/3-
• Engine Support Bridge -10-222A-
• Engine Support Bridge - Engine Support 18 -10-222A/18-
• Transmission Support -3282-

Engine Support Bridge - Gearbox Bracket -T10346-

or Engine Support Device - Gearbox Bracket -T10346/1-

Engine Support Device -3300A-

Slide Hammer Set - Adapter 40 -VW771/40-

Hose Clamps - Up To 25 mm -3094-

Grease for Clutch Disc Shaft Splines -G 000 100-

For the correct grease. Refer to the Parts Catalog.

M6 x 20 collar bolt

M6 x 80 collar bolt

M10 x 20 hex collar bolt

• Engine Support Bridge -10-222A-

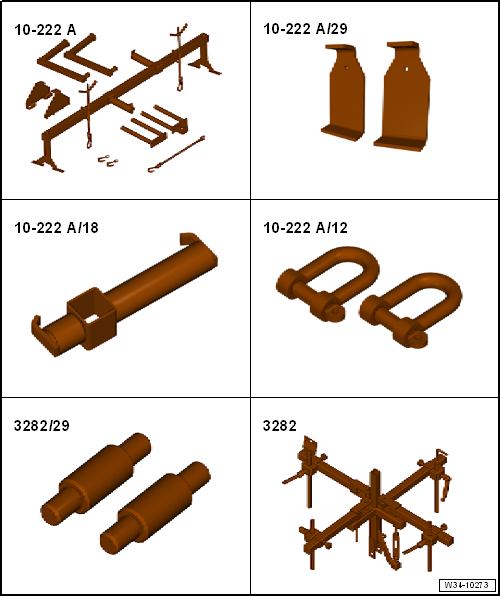

• Engine Support Bridge - Gearbox Adapter -10-222A/29-
• Engine Support Bridge - Engine Support 18 -10-222A/18-
• If necessary Engine/Gearbox Support Shackle -10-222A/12-

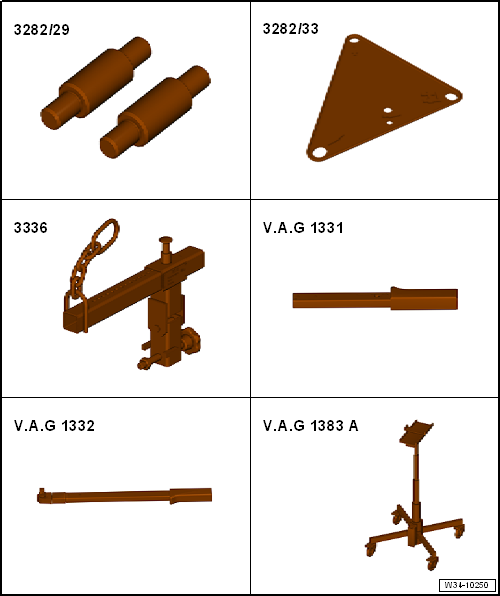

• Transmission Support - Pins 29 -3282/29-
• Transmission Support -3282-

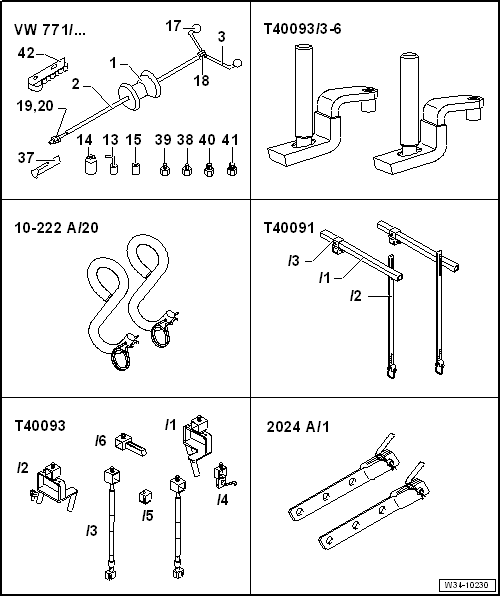

• Slide Hammer Set - Adapter 40 -VW771/40-
• Engine Support Brackets -T40093/3-6- (quantity 2)
• Engine Support - Bracket w/Spindle and hook -10-222A/20-
• Engine Support - Basic Set Square Pipe -T40091/1- (quantity 2)
• Engine Support - Basic Set Movable Joint -T40091/3- (quantity 2)
• Engine Support - Supplement Kit Spindle -T40093/3- (quantity 2) from the Engine Support - Supplement Kit -T40093A-
• Engine Sling - Engine Bracket -2024A/1- from Engine Sling -2024A-
• Grease for Clutch Disc Shaft Splines -G 000 100-
• For the correct grease. Refer to the Parts Catalog.

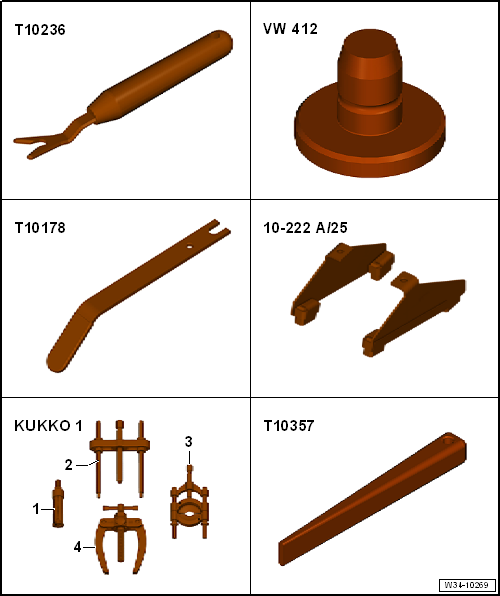

• Window Release Tool -T10236-
• Press Piece - Multiple Use -VW412-
• Over-Center Spring Assembly Tool -T10178-
• Engine Support Bridge - Engine Support 25 -10-222A/25-
• 2 = Counter-Support for example, from -Kukko- model line 16
• Wedge -T10357-

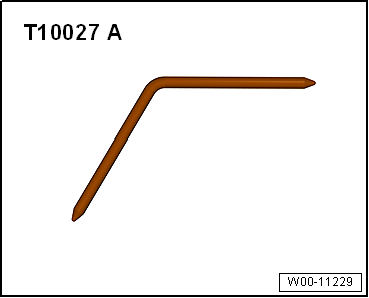

• Connecting Pin -T10027A-

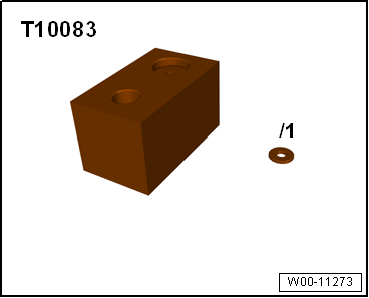

• Press Piece - Block -T10083-

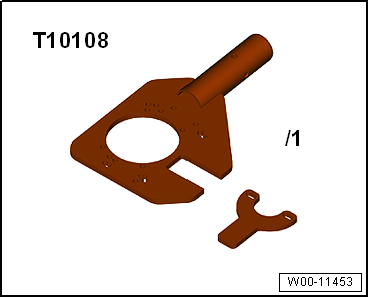

• Gearbox Support -T10108-

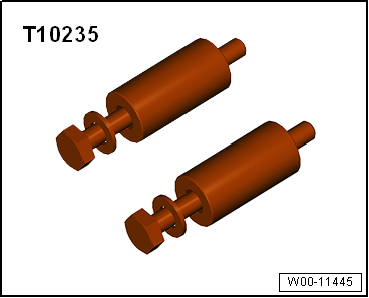

• Holding Fixture - Gearbox Adapter -T10235-

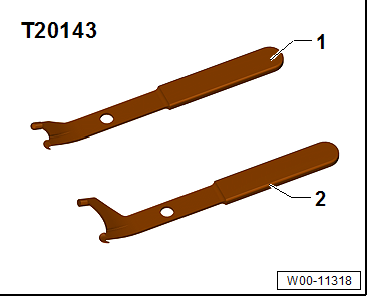

• Puller - Crankshaft/Power Steering Seal -T20143/1-

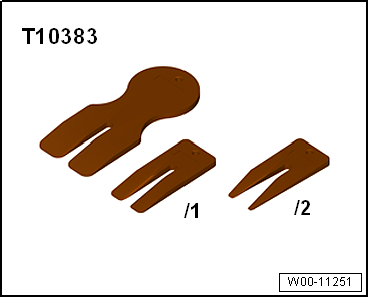

• Wedge Set -T10383-

• Engine Support -T50015-

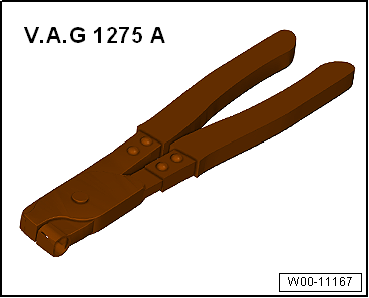

• Hose Clip Pliers - VAG1275A-

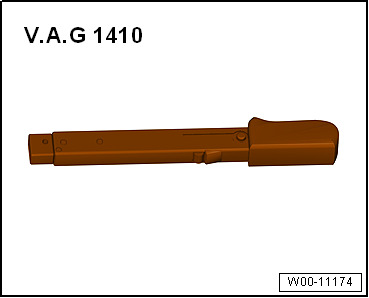

• Torque Wrench 1410 - VAG1410-

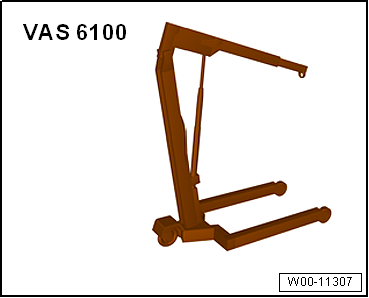

• Shop Crane -VAS6100-

• Drip Tray -VAG1306-

• Holding Plate -VW309A-

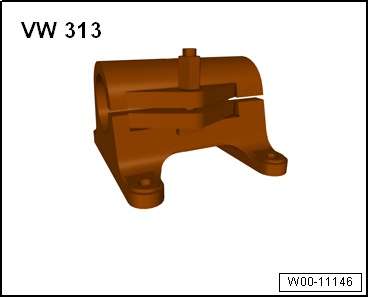

• Holding Fixture -VW313-

• Transmission Support -VW353-

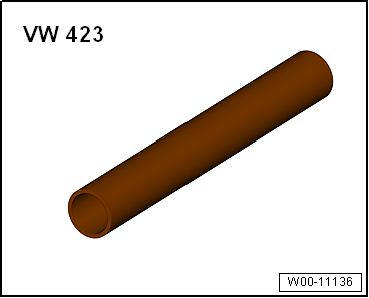

• Press Piece - Shift Rod/Alternator -VW423-

• -1-Puller - Kukko Internal - 14-19mm -21/2-

• Pry Lever -80-200-
• Sealing Grease. Refer to the Parts Catalog.
• or Holding Plate - VW309A-

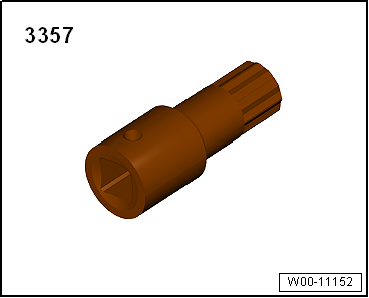

• For oil filler plug with multi-point fitting Triple Square Socket Driver -3357-.
• or Socket And Extended Bit -T10107A-
• Torque Wrench 1331 5-50Nm -VAG1331-
• -1-Puller - Kukko Internal - 20-30mm -21/4-
• -4-Puller - Kukko Counterstay -22/2-
• Thread adaptor from Puller - Kukko Counterstay -22/1-

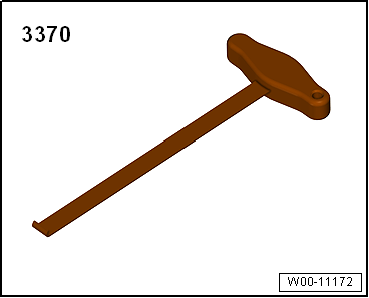

• Backrest Panel Tool -3370-

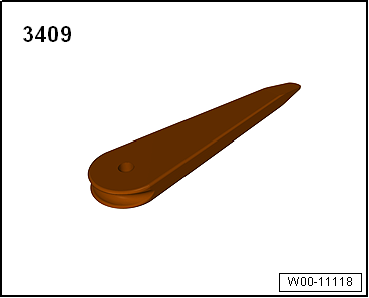

• Trim Removal Wedge -3409-
