Volkswagen Tiguan Service and Repair Manual: Bevel Box

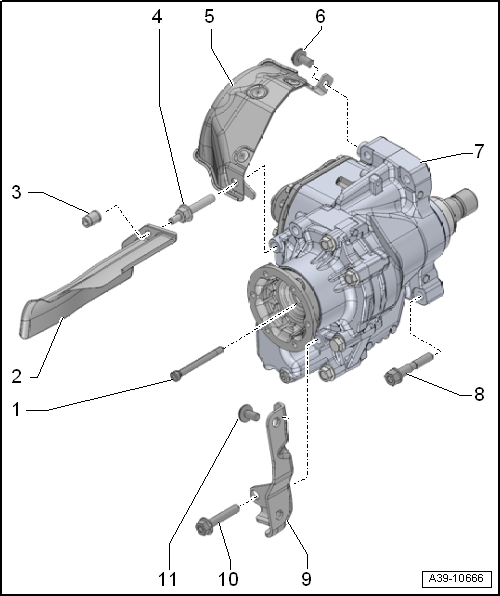

Overview - Bevel Box

Volswagen Tiguan. Overview - Bevel Box

  1. Bolt
    • Tightening specification.
  2. Heat Shield
    • For drive axle
  3. Nut
    • Quantity: 2 or 3
    • Tightening specification.
  4. Bolt
    • Only on bevel box "0CN" for the heat shield at the bevel box
    • Tightening specification
  5. Heat Shield
    • For driveshaft
    • Only on bevel box "0CN"
  6. Bolt
    • Only on bevel box "0CN" for the heat shield at the bevel box
    • Tightening specification.
  7. Bevel Box
    • Differentiating.
    • Removing.
    • Installing.
  8. Bolt
    • Tightening Specification.
    • Replace after removing
    • Quantity: 4
  9. Transmission Support
    • There are different versions. Refer to the Parts Catalog for the allocation.
  10. Bolt
    • Quantity: 2
    • Transmission support to bevel box
    • Tightening specification and sequence:
    • Bevel box "0AV".
    • Bevel box "0CN" and bevel box "0AV for Tiguan".
  11. Bolt
    • Quantity: 2
    • Transmission support to engine
    • Tightening specification and sequence:
    • Bevel box "0AV".
    • Bevel box "0CN" and bevel box "0AV for Tiguan".

Note

Pay attention to "Bevel Box, Differentiating".

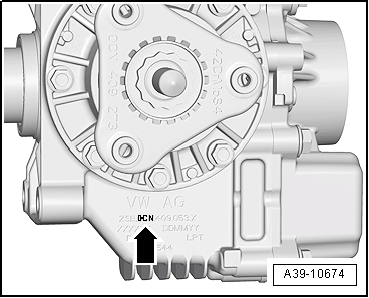

Bevel Box, Differentiating

Bevel Boxes "0AV" or "0CN" may be Installed.

The identification is located near the -arrow-

Volswagen Tiguan. A39-10674
