Volkswagen Tiguan Service and Repair Manual: Subframe Mount

Overview - Subframe Mount

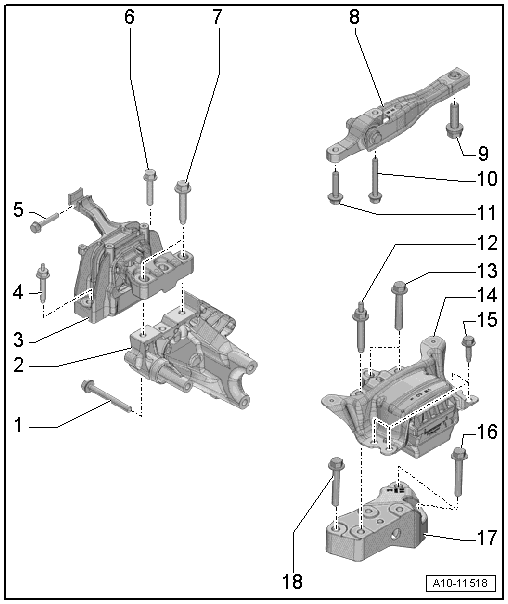

Volswagen Tiguan. Overview - Subframe Mount

  1. Bolt
  2. Engine Support
  3. Engine Mount
  4. Bolt
  5. Bolt
  6. Bolt
  7. Bolt
  8. Pendulum Support
  9. Bolt
    • For pendulum support to subframe
  10. Bolt
    • For pendulum support to transmission
    • Transmission with threaded insert.
  11. Bolt
    • For pendulum support to transmission
    • Transmission with threaded insert.
  12. Bolt
    • 60 Nm + 90º additional turn
    • Replace after removing
    • Tightening sequence.
    • For transmission mount to transmission bracket
  13. Bolt
    • 60 Nm + 90º additional turn
    • Replace after removing
    • Tightening sequence.
    • For transmission mount to transmission bracket
    • Quantity: 2
  14. Transmission Mount
  15. Bolt
  16. Bolt
    • 60 Nm + 90º additional turn
    • Replace after removing
    • Tightening sequence.
    • For transmission bracket to transmission
    • Quantity: 2
  17. Transmission Bracket
  18. Bolt
    • 60 Nm + 90º additional turn
    • Replace after removing
    • Tightening sequence.
    • For transmission bracket to transmission

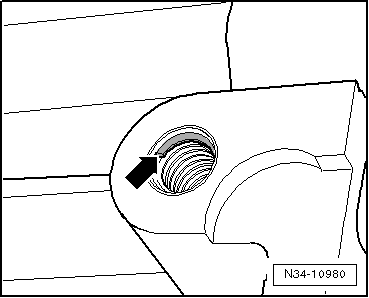

Transmission with Threaded Insert (for Example "Heli Coil") for Attaching the Pendulum Support

Note

  • There are threaded inserts (for example "Heli Coil") in the pendulum support fastening holes.
  • Characteristic: there is a collar on the first thread -arrow-.
  • Please pay attention to the corresponding bolts and the tightening specification.

Volswagen Tiguan. N34-10980

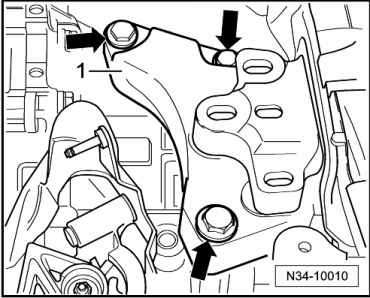

Transmission Bracket -1- to Transmission.

  • Replace the bolts -arrows-.
  • Tighten the bolts -arrows- hand-tight.
  • Tighten the bolts -arrows-.

Volswagen Tiguan. N34-10010

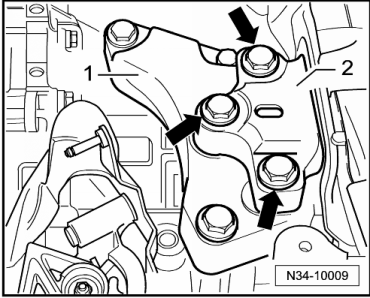

Attaching the Transmission Mount -2- to the Transmission Bracket -1-

  • Replace the bolts -arrows-.
  • Tighten the bolts -arrows- hand-tight.
  • Tighten the bolts -arrows-.

Volswagen Tiguan. N34-10009
