Volkswagen Tiguan Service and Repair Manual: Transmission, Removing and Installing
Turbo Diesel Engines, Differentiating
Pay attention to the following for removing and installing the transmission.
Various Installation Positions of the Engine Lifting Eyes

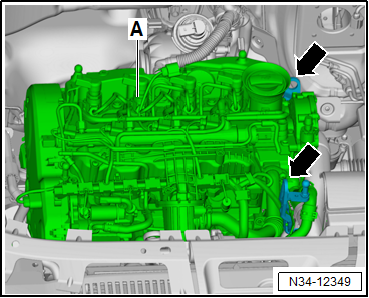

The Lifting Eyes -arrows- are Located "Near Each Other" on the Engine -A-
They are bolted on.
They are made of steel.
- Transmission, Removing, CC and Passat with Turbo Diesel Engine, FWD, Scirocco with Turbo Diesel Engine.
- Transmission, Installing, CC and Passat with Turbo Diesel Engine, FWD, Scirocco with Turbo Diesel Engine.
- Transmission, Removing, Golf Cabriolet.
- Transmission, Installing, Golf Cabriolet.

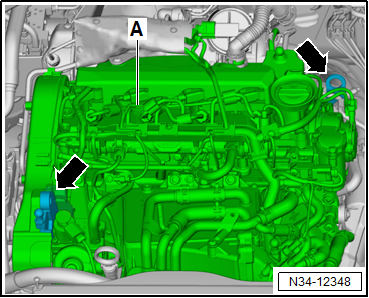

The Lifting Eyes -arrows- are Located "Diagonal From Each Other" On the Engine -A-
The left rear eye is bolted on.
The right front eye is casted on.
- Transmission, Removing, CC and Golf Cabriolet.
- Transmission, Installing, CC and Golf Cabriolet.
- Transmission, Removing, Tiguan.
- Transmission, Installing, Tiguan.

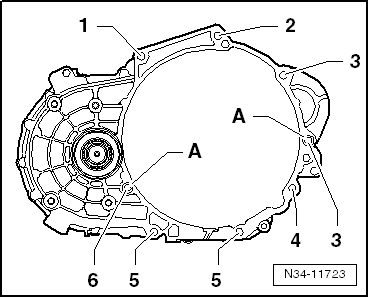

Transmission Tightening Specifications
| Item | Bolt | Quantity | Nm |
| 1 | M12 x
55
|
1 | 80 |
| 2 | M12 x
55
|
1 | 80 |
| 3 | M12 x
165
|
2 | 80 |
| 4 | M10 x 105 | 1 | 40 |
| 5 | M10 x 50 | 2 | 40 |
| 6 | M12 x 70 or M12 x 65 | 1 | 80 |
| - | M6 x 8
|
1 | 10 |
-A- alignment sleeves for centering
Selector Mechanism
Selector Mechanism Installation Position
-Arrow A- Gearshift Lever Movement
-Arrow B- Selector Lever Movement
Gearshift Lever Cable
Selector Cable
Heat Shield
Remove the gearshift mechani ...
Subframe Mount
Overview - Subframe Mount
Bolt
Engine Support
Engine Mount
Bolt
Bolt
Bolt
Bolt
Pendulum Support
Bolt
For pendulum support to subframe
Bolt
For pendulum support to transmission
T ...
