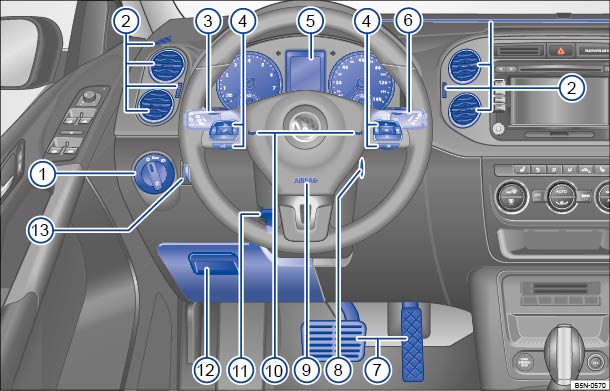

Fig. 5 Driver side overview.
Key to ⇒ Fig. 5 :
Headlight switch
⇒ Lights
Lever for ⇒ Lights
Multi-function steering wheel controls ⇒ Volkswagen Information System
Instrument cluster:
Windshield wiper and washer lever ⇒ Windshield wiper and washer
Volkswagen Tiguan Service and Repair Manual > Sunroof: Front Sunroof Glass Panel Tilt Mechanism and Cable, Removing and Installing
Removing
Remove the front glass panel.
Remove the rear glass panel.
Remove the assembly frame from the vehicle.
Remove sunroof motor.
Remove the rear lid from the assembly frame.
Push the tilt mechanism to the rear after removing the rear lid.
Proceed as follows:
Caution
Before removing ...
