Volkswagen Tiguan Service and Repair Manual: Multi-Pin Connector Assignment on Back of Display Control Head

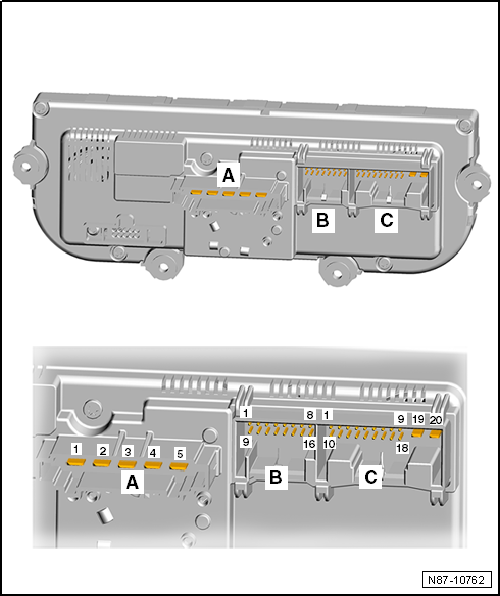

Multi-Pin Connector Assignment on Back of Display Control Head, Climatic

Special tools and workshop equipment required

  • Test Box Kit - 105 Pin Test Box Kit -VAG1598/42-
  • Test Box Kit - Adapter 47 -VAG1598/47-
  • Test Box Kit - Adapter 47-2 -1598/47-2-

5-PIN - Blower Connector

  • For the connector assignment use the current wiring diagram.

16-PIN - Connector

  • For the connector assignment use the current wiring diagram.

20-PIN - Connector

  • For the connector assignment use the current wiring diagram.

Multi-Pin Connector Assignment on Back of Display Control Head, Electric Manual Climate Control System, through 11/05/2012

Special tools and workshop equipment required

  • Test Box Kit - Basic Test Box -VAG1598/14-
  • Test Box Kit - Adapter 47 -VAG1598/47-
  • Cover Plate -VAG1598/47-2-

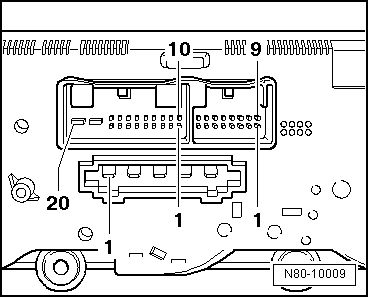

Volswagen Tiguan. Multi-Pin Connector Assignment on Back of Display Control Head, Electric Manual Climate Control System, through 11/05/2012

  1. Blower Connection - 5-PIN
    • For the connector assignment use the current wiring diagram.
  2. 16-PIN Connector
    • For the connector assignment use the current wiring diagram.
  3. 20-PIN Connector
    • For the connector assignment use the current wiring diagram.

Multi-Pin Connector Assignment on Back of Display Control Head, Electric Manual Climate Control from 11/05/2012

Special tools and workshop equipment required

  • Test Box Kit - Basic Test Box -VAG1598/14-
  • Test Box Kit - Adapter 47 -VAG1598/47-
  • Cover Plate -VAG1598/47-2-

Volswagen Tiguan. Multi-Pin Connector Assignment on Back of Display Control Head, Electric Manual Climate Control from 11/05/2012

  1. Blower Connection - 5-PIN
    • For the connector assignment use the current wiring diagram.
  2. 16-PIN Connector
    • For the connector assignment use the current wiring diagram.
  3. 20-PIN Connector
    • For the connector assignment use the current wiring diagram.
