Volkswagen Tiguan Service and Repair Manual: Rear Door Lamps and Switches

Rear Window Regulator Switch

Rear Window Regulator Switch, Removing and Installing, Rear

The Left Rear Window Switch In Left Rear Door -E52- and Right Rear Window Switch In Right Rear Door -E54- are installed in the rear door trim panels.

Removing

  • Switch off the ignition and all electrical consumers and remove the ignition key.
  • Remove the door trim panel.

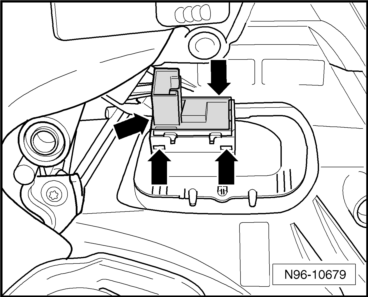

  • Release all four tabs -arrows- and remove the switch from the frame.

Volswagen Tiguan. N96-10679

Installing

Install in reverse order of removal.

Components - Rear Door Lock

The following components are integrated in the left rear door lock (depending on the equipment level of the vehicle).

  • Left Rear Door Contact Switch -F10-
  • Left Rear Central Locking Lock Unit -F222-
  • Left Rear Central Locking -Lock- Motor -V214-
  • Left Rear Central Locking -Safe- Motor -V163-

The following components are integrated in the right rear door lock (depending on the equipment level of the vehicle).

  • Right Rear Door Contact Switch -F11-
  • Right Rear Central Locking Lock Unit -F223-
  • Right Rear Central Locking -Lock- Motor -V215-
  • Right Rear Central Locking -Safe- Motor -V164-

Note

The components listed above cannot be replaced separately.

If there are faulty components in the rear door locks:

  • Replace the door lock.
