Volkswagen Tiguan Service and Repair Manual: Parallel Parking Assistance Control Module -J791-

Parallel Parking Assistance Control Module -J791-, Removing and Installing

The Parallel Parking Assistance Control Module -J791- is located behind the storage compartment in the driver footwell above the relay panel. The Parallel Parking Assistance Control Module -J791- also controls the parking aid functions on vehicles with rear parking aid or PLA.

Removing

  • Switch off the ignition and all electrical consumers and remove the ignition key.
  • Remove the trim inside the driver footwell.

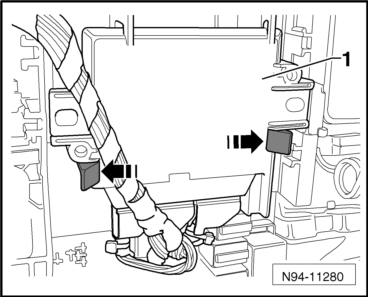

  • Push the retainers apart -arrows- and remove the Parallel Parking Assistance Control Module -J791- from the mount with the wires still connected.

Volswagen Tiguan. N94-11280

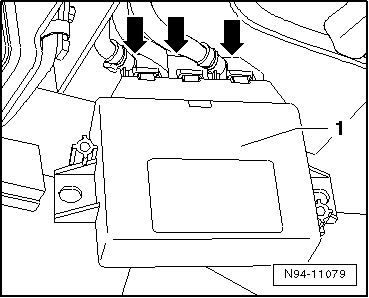

  • Disconnect the three connectors -arrows- and remove the Parallel Parking Assistance Control Module -J791--1- from the vehicle.

Volswagen Tiguan. N94-11079

Installing

Install in reverse order of removal.

Parallel Parking Assistance Control Module -J791-, Coding

The Parallel Parking Assistance Control Module -J791- is located behind the storage compartment in the driver footwell above the relay panel. The Parallel Parking Assistance Control Module -J791- also controls the parking aid functions on vehicles with rear parking aid or PLA.

  • Code the Parallel Parking Assistance Control Module -J791- using the Vehicle Diagnostic Tester.
