License Plate Lamp -X-
License Plate Lamp -X-, Removing and Installing
Special tools and workshop equipment required

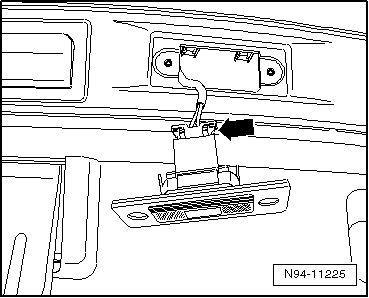

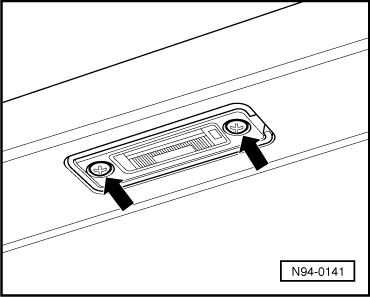

Removing
Installing
Install in reverse order of removal. Note the following:
Note

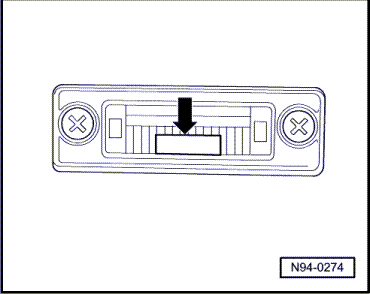

There is a small silver protective strip -arrow- applied to the license plate lamp diffusion lens. This strip must always face the bumper when installing the diffusion lens.
License Plate Lamp Bulb, Replacing
Special tools and workshop equipment required

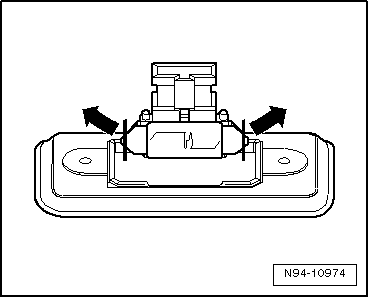

Removing
License Plate Lamp -X- bulb: tubular bulb 12V, 5W
Installing
Note
There is a small silver protective strip -arrow- applied to the license plate lamp diffusion lens. This strip must always face the bumper when installing the diffusion lens.
