General Information
Note
The design of the front bumper cover on the Tiguan has two different approach angles (18º and 28º) depending on the equipment level. Removing and installing the fog lamp bulb or the fog lamp itself is the identical for both versions.Malfunction Recognition and Malfunction Indicator
Vehicle electrical system control is equipped with OBD which assists with Fault Finding at the fog lamps.Use the Vehicle Diagnostic Tester in "Guided Fault Finding".

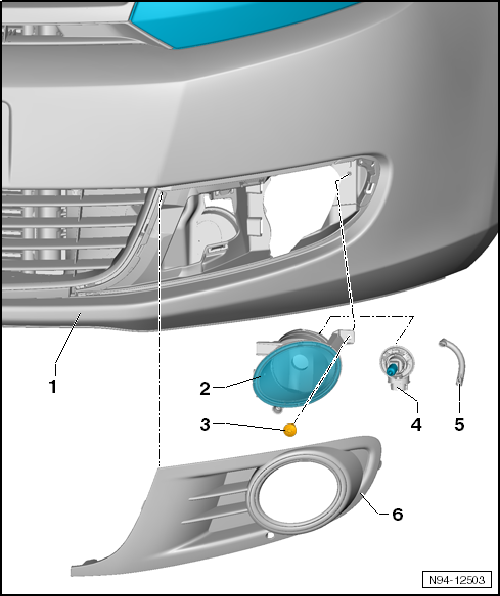

Overview - Fog Lamp
Fog Lamp, Removing and Installing
Special tools and workshop equipment required
Note
The following illustrations depict removal and installation of left fog lamp. Removing and installing the right fog lamp is identical.

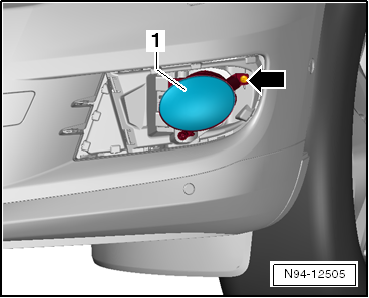

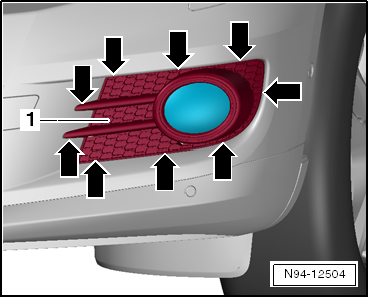

Removing
Installing
Install in reverse order of removal. Note the following:
Fog Lamp Bulb and Static Cornering Lamp, Removing and Installing
Note

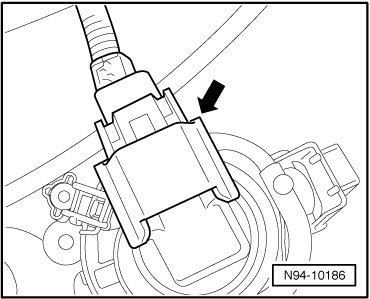

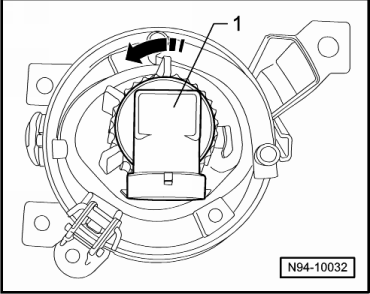

Removing
The fog lamp bulb/stationary cornering lamp and the bulb socket are a single piece and cannot be replaced separately.
Fog lamp bulb: HB4 12V, 51W
Installing
Install in reverse order of removal. Note the following:
