Volkswagen Tiguan Service and Repair Manual: External Audio Source Connection -R199-, Removing and Installing

Volkswagen Tiguan Service and Repair Manual / Communication / External Audio Source Connection -R199-, Removing and Installing

General Information

Note

Refer to the Owner's Manual.
When the battery is reconnected, check any affected system or component (radio, clock, comfort electrical connection etc.) according to the repair manual and/or the Owner's Manual.

The AUX IN socket is located in the center console.

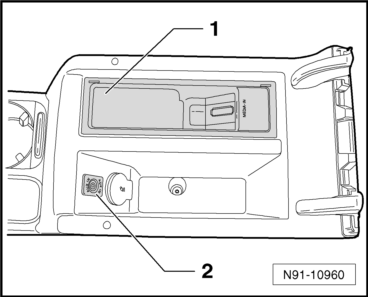

AUX IN Socket, Location -2-

Volswagen Tiguan. N91-10960

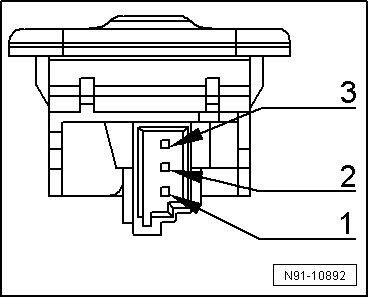

AUX IN Socket, Pin Assignment

Left Audio Signal
Voltage Supply, Terminal 31, Negative
Right Audio Signal

Volswagen Tiguan. N91-10892

AUX IN Socket, Removing and Installing

Special tools and workshop equipment required

Trim Removal Wedge -3409-

If necessary, remove the CD changer.
Remove the rear section of the center console.

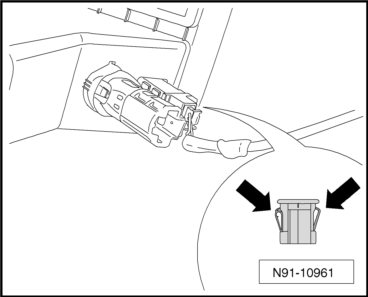

Press the clips -arrows- in the AUX IN socket using the Trim Removal Wedge -3409- and slide the AUX IN socket out of its mount.

Volswagen Tiguan. N91-10961

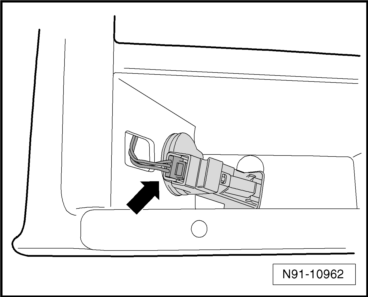

Disconnect the connector.

Volswagen Tiguan. N91-10962

Installing

Install in reverse order of removal.
