General Information

Depending on the vehicle radio or radio navigation system used, the reception can be expanded for satellite radio programs via equipment with a digital satellite radio tuner.

The digital satellite radio tuner is installed in the "RNS 315" unit.

Note

Before troubleshooting or servicing, the technicians must be familiar with the function and operation of the radio unit/radio navigation system and of digital satellite radio tuner.
Refer to the Owner's Manuals.

For servicing or trouble shooting, use the Vehicle Diagnostic Tester and → Wiring diagrams, Troubleshooting & Component locations

When the battery is reconnected, check any affected system or component (radio, clock, comfort electrical connection etc.) according to the repair manual and/or the Owner's Manual.

A satellite reception antenna is installed on the rear of the roof for satellite radio tuner operation.

In the Tiguan, the digital satellite radio tuner is installed under the front right seat.

Troubleshooting

The digital satellite radio tuner is equipped with On Board Diagnostic (OBD) capabilities

Use the Vehicle Diagnostic Tester under "Guided Fault Finding".

Digital Satellite Radio, Removing and Installing

Removing

Do the following before starting the procedure:

Turn off the ignition and all electric consumers and remove the key.

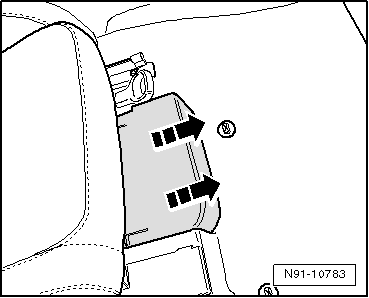

Slide seat cover off in direction of -arrows-.

Volswagen Tiguan. N91-10783

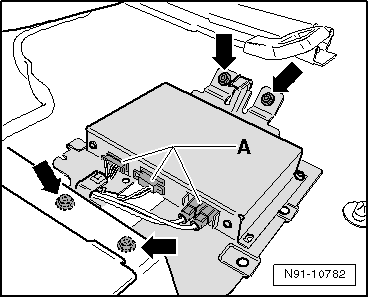

Disconnect connectors -A- and remove four screws -arrows-.
Remove digital satellite radio tuner together with bracket.

Volswagen Tiguan. N91-10782

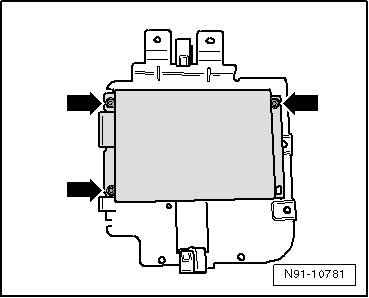

Remove screws -arrows- while holding nuts under bracket in place - otherwise, these will turn with screws.

Volswagen Tiguan. N91-10781

Installing

Installation is performed in the reverse order of removal.

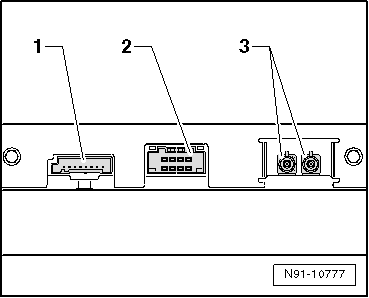

Overview - Multi-Pin Connectors on Digital Satellite Radio Tuner

Data Input and Output Information Connection
Voltage Supply Connection
Antenna Line Connections

Volswagen Tiguan. N91-10777

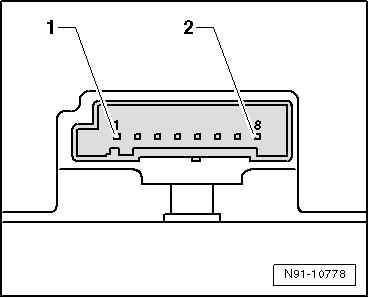

Multi-Pin Connector 1, Assignment

CAN Bus, Low
CAN Bus, High
CDX, Left, Input
CDX, Right, Input
Audio, Negative
Audio, Output, Left, Positive
Audio, Output, Right, Positive
CDX, Negative

Volswagen Tiguan. N91-10778

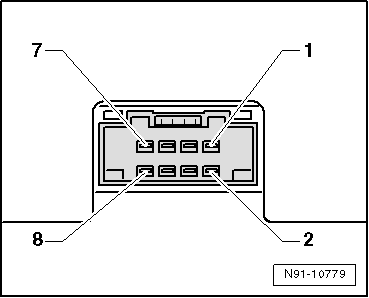

Multi-Pin Connector 2, Assignment

Voltage Supply, Negative
Voltage Supply, Positive
Not Assigned
Not Assigned
Not Assigned
Not Assigned
Not Assigned
Not Assigned

Volswagen Tiguan. N91-10779

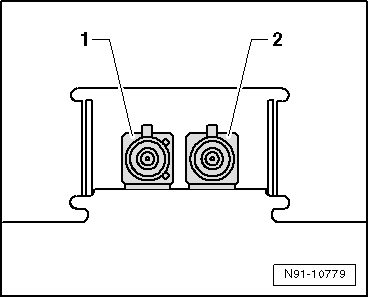

Antenna Connectors, Assignment

Antenna, Terrestrial, Input, Brown
Antenna, Satellite, Input, Green

Volswagen Tiguan. N91-10780

For vehicles from 11/2006, a connection is still available here.
