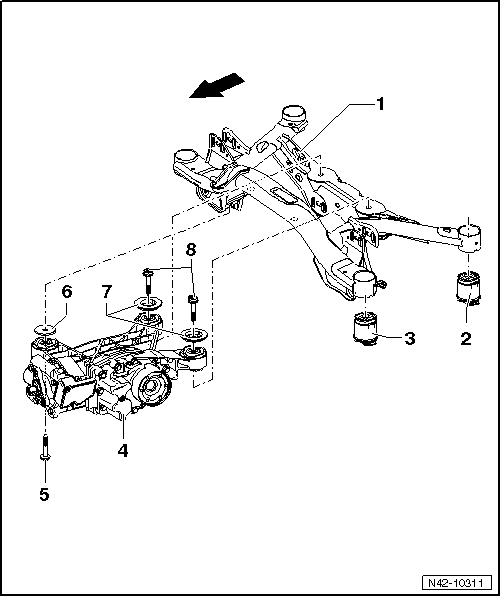

Overview - Subframe, Final Drive, AWD

The -arrow- points in the direction of travel.

Volswagen Tiguan. Overview - Subframe, Final Drive, AWD

Subframe
Rear Bonded Rubber Bushing
- Replacing, through 5/19/2012.
- Replacing, from 05/28/2012.
Front Bonded Rubber Bushing
- Replacing, through 5/19/2012.
- Replacing, from 05/28/2012.
Final Drive
- Removing and installing.
Bolt
- 60 Nm + 90º
- M12 x 105
- Always replace if removed
Washer
- Installed between final drive and subframe
Washer
- Washer must be placed with holes on tabs of bonded rubber bushing
Bolt
- 60 Nm + 90º
- Always replace if removed
- M12 x 105
