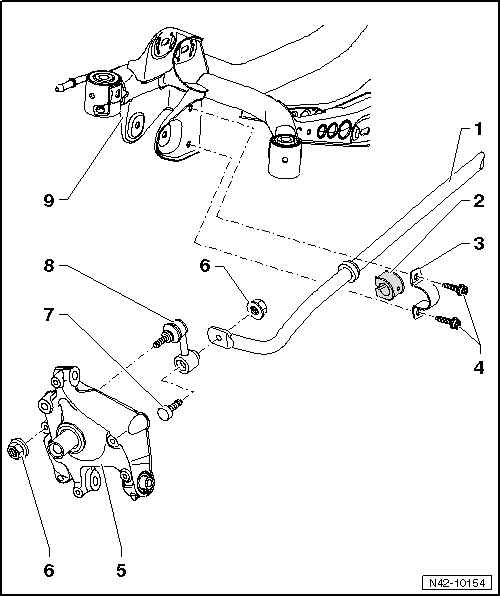

Overview - Stabilizer Bar, FWD
Stabilizer Bar, Removing and Installing
Special tools and workshop equipment required
Removing
Note
The following work steps are described for the left side of the vehicle. These work steps also apply simultaneously for right side of vehicle.
Note

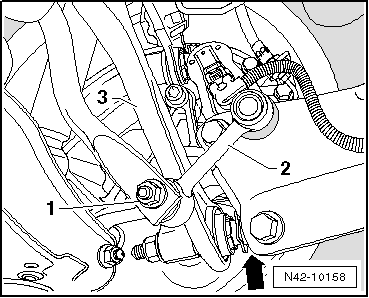

Do not loosen bolt -arrow- for tie rod -3-.
Installing
Tightening Specifications
Component | Tightening Specification |

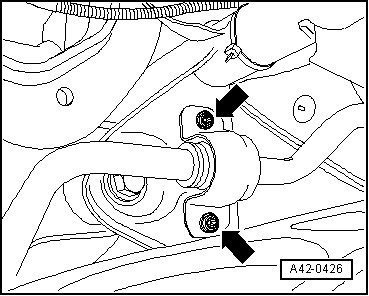

Stabilizer bar to
subframe
|
25 Nm + 45º |
Stabilizer bar to coupling rod
|
40 Nm |
