Brake PR Number, Allocating

Front Brakes

Engine	PR Number	Front Brakes
2.0L - 147 kW FSI	1ZD	FN3 (16")

Rear Brakes

Engine	PR Number	Rear Brakes
2.0L - 147 kW FSI	1KU	CII 41 (16")

Technical Data, Brakes

Brake Master Cylinder and Brake Booster

Brake Master Cylinder	Diameter in mm	23.8
Brake booster	Diameter in inches	11

Front Brakes

Front Brakes FN 3

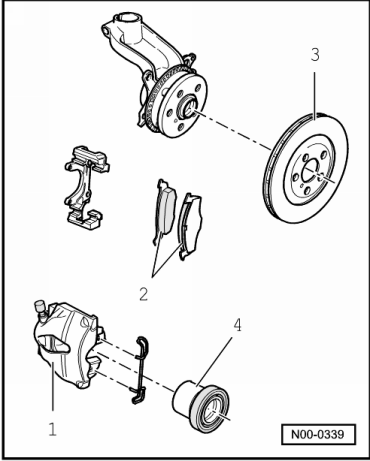

Volswagen Tiguan. N00-0339

Item	PR Number		1LJ / 1ZD
1	Brake Caliper		FN3 (16")
2	Brake pad, thickness	mm	14
2	Brake pad, wear limit without backing plate	mm	2
3	Brake Rotor	diameter in mm	312
	Brake rotor, thickness	mm	25
	Brake rotor, wear limit	mm	22
4	Brake caliper, piston	diameter in mm	54

Rear Disc Brakes

CII 41 Rear Brakes

Volswagen Tiguan. CII 41 Rear Brakes

Item	PR Number		1KU
1	Brake caliper		CII 41 (16")
2	Brake pad, thickness	mm	11
2	Brake pad, wear limit without backing plate	mm	2
3	Brake rotor	diameter in mm	286
	Brake rotor, thickness	mm	12
	Brake rotor, wear limit	mm	10
4	Brake caliper, piston	diameter in mm	41

ABS General InformationThe ABS brake system is divided diagonally. The brake booster operates pneumatically via the vacuum brake booster.Vehicles with ABS do not have a mechanical brake pressure reg ...
