Volkswagen Tiguan Owners Manual: Rear view

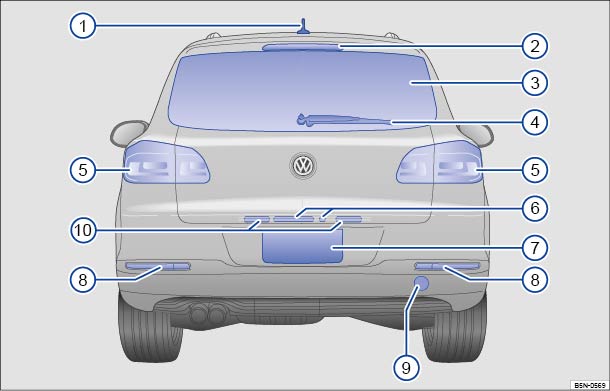

Fig. 3 Vehicle rear overview.

Key to ⇒ Fig. 3 :

  1. Roof antenna ⇒ Consumer information 

    • cell phone
    • Navigation
  2. High-mounted brake light
  3. Rear window

    • Rear window defroster
  4. Rear window wiper ⇒ Windshield wiper and washer 
  5. Taillights ⇒ Lights , ⇒ Changing light bulbs 
  6. Rear hatch release ⇒ Rear hatch  and rear assist camera ⇒ Rear Assist with dynamic orientation lines 
  7. Rear license plate bracket
  8. Backup lights and rear reflectors
  9. Threaded hole for the rear towing eye (behind cover) ⇒ Towing 
  10. License plate lights ⇒ Changing light bulbs 
    Front view
    Fig. 2 Vehicle front overview. Key to ⇒ Fig. 2 : Sensor on mirror base for: Low-light sensor Front windshield Windshield wipers ⇒ Windshield wiper and washer . Engine ...
