Volkswagen Tiguan Service and Repair Manual: Passenger Seat without Height Adjustment

Volkswagen Tiguan Service and Repair Manual / Body Interior / Seat Frames / Passenger Seat without Height Adjustment

Tools

Special tools and workshop equipment required

  • Torque Wrench 1783 - 2-10Nm -VAG1783-

Volswagen Tiguan. W00-0990

  • Torque Wrench 1331 5-50Nm -VAG1331-

Volswagen Tiguan. W00-0427

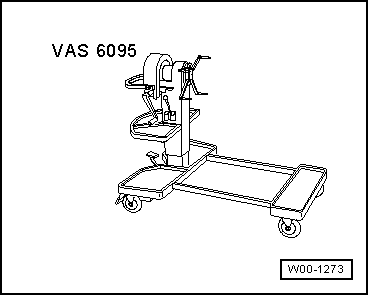

  • Engine and Gearbox Bracket VAS6095A -VAS6095A-

Volswagen Tiguan. W00-1273

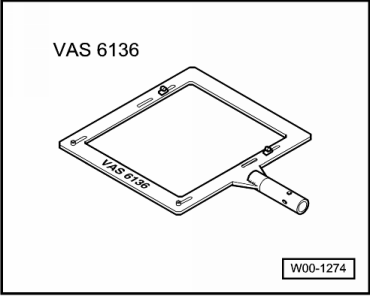

  • Engine/Transmission Holder - Seat Repair Fixture -VAS6136-

Volswagen Tiguan. W00-1274

Sill-Side Trim Panel, Removing and Installing

Removing

  • Remove the backrest adjustment wheel.

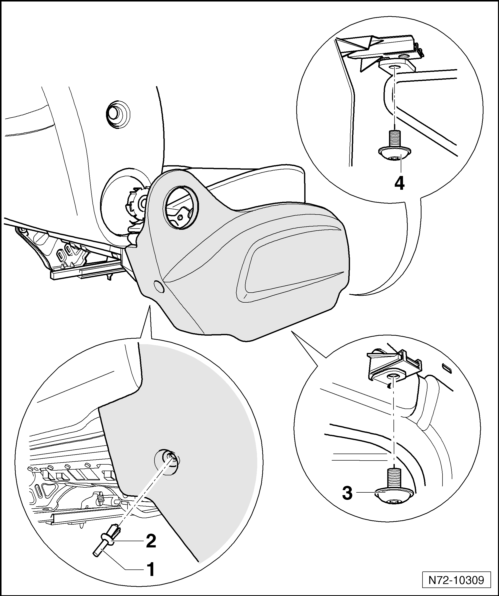

  • Press the clamping pin -1- inward and remove the expanding clip -2-.
  • Remove the screws -3- and -4- (2 Nm).
  • Pull the trim panel outward off the seat.

Volswagen Tiguan. Sill-Side Trim Panel, Removing and Installing

Installing

Note

Before the assembly, check the clips for damage and replace if necessary.

  • Install in reverse order of removal.
    Front Seats with Manual Height Adjustment
    Tools Special tools and workshop equipment required Torque Wrench 1783 - 2-10Nm -VAG1783- Torque Wrench 1331 5-50Nm -VAG1331- Engine and Gearbox Bracket VAS6095A -VAS6095A- Engine/Transm ...

    Passenger Seat with Pass-Through
    Sill-Side Trim Panel, Removing and Installing Removing Remove the cover -1- and remove the release lever -2-. Pull the height adjustment handle -1- upward. Using a small screwdriver, push t ...
