Volkswagen Tiguan Service and Repair Manual: Grab Handles

Tools

Required Special Tools and Testing Equipment

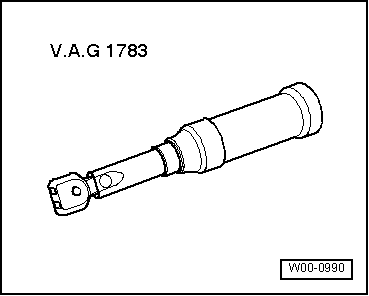

  • Torque Wrench 1783 - 2-10Nm -VAG1783-

Volswagen Tiguan. W00-0990

Roof Grab Handles, Removing and Installing

Note

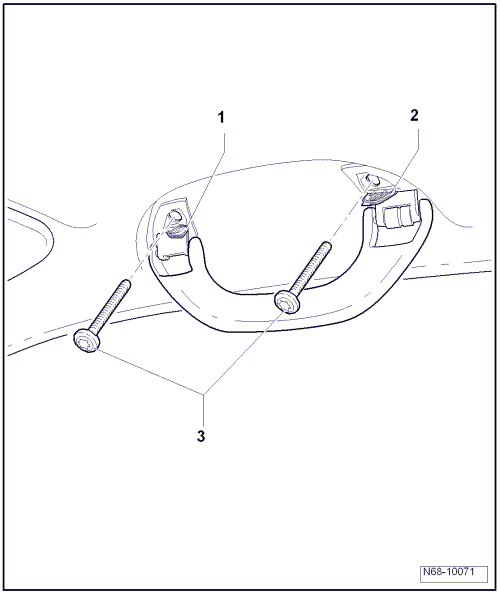

The illustration shows the right front grab handle, removing and installing the remaining grab handles is identical.

Removing

  • Swing down the grab handle and open the two cover caps -1- and -2- using a small screwdriver.
  • Remove the two screws -3- (2 Nm) and remove the grab handle.

Volswagen Tiguan. Roof Grab Handles, Removing and Installing

Installing

  • Install in reverse order of removal.

Special Tools

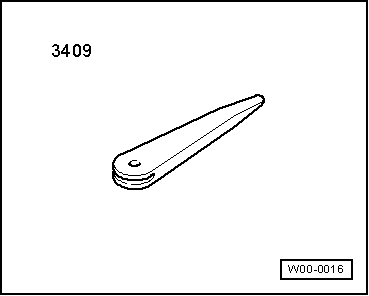

  • Trim removal wedge -3409-

Volswagen Tiguan. W00-0016

  • Torque wrench -VAG1783-

Volswagen Tiguan. W00-0990

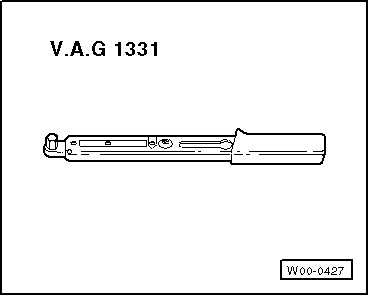

  • Torque wrench -VAG1331-

Volswagen Tiguan. W00-0427
