Volkswagen Tiguan Service and Repair Manual: Name Badges

Assembly Instructions for Name Badges and Emblems

Note

• It is not possible to remove the name badge without breaking it.
• Warm the name badges or emblems before removing using a Hot Air Blower -VAG1416-.
• Only use Adhesive Remover -D 002 000 10-.
• Make sure the adhesive surfaces are free of dust and grease.
• Bond the name badges or emblems immediately after cleaning.
• Peel off the protective film just before installing.
• The temperature must be approximately 21 ºC (69.8 ºF).

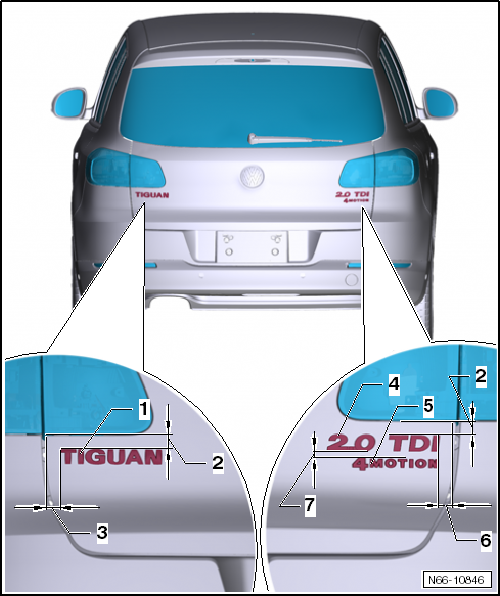

Rear Name Badge Dimensions

1. Name Badge
   • Model name
2. Height Dimension
   • From the bottom edge of the tail lamp to the name badge is 23 mm
3. Side Dimension
   • From the outer edge of the rear lid to the name badge is 25 mm
4. Name Badge
   • Engine designation
5. Name Badge
   • Additional designation
6. Side Dimension
   • From the outer edge of the rear lid to the name badge is 37 mm
7. Height Dimension
   • Between the name badges: 10 mm

Side Name Badge Dimensions

Volkswagen R GmbH "R-Line" optional equipment

Note

• It is not possible to remove the name badge without breaking it.
• The displayed dimensions are for the left side. The right side is identical.

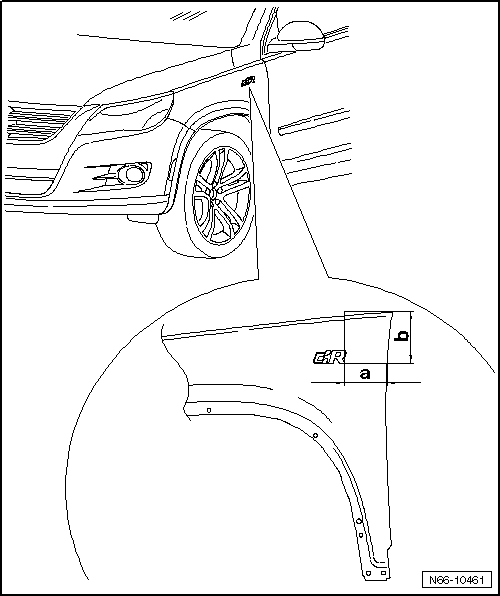

Left Fender Name Badge Dimensions

1. Dimension -a- = 95 mm
   • Transfer the -dimension a- from the end of the name badge to the edge of the fender.
2. Dimension -b- = 130 mm
   • Transfer -dimension b- from the end of the name badge up to the upper edge of the fender.

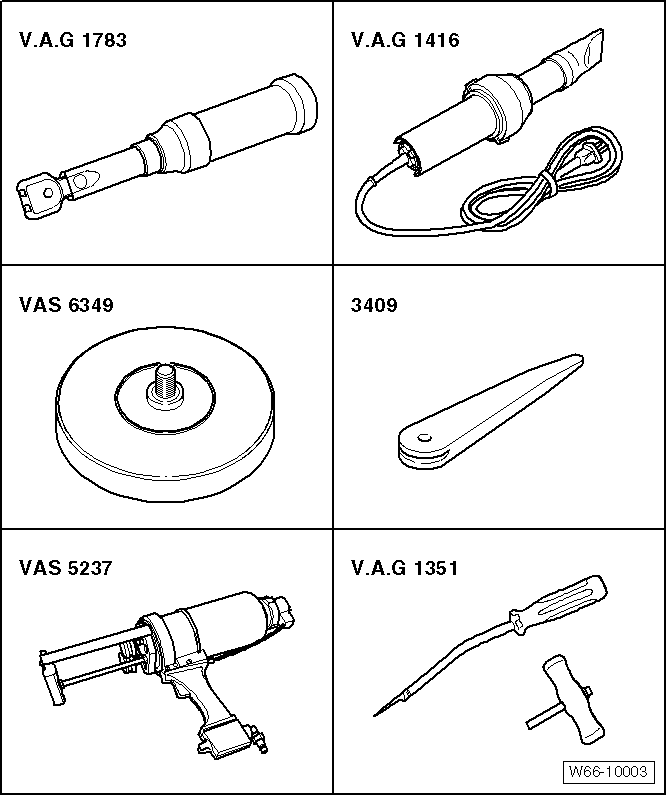

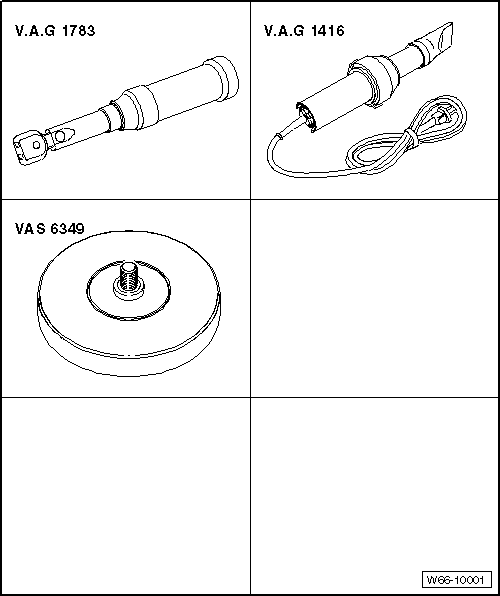

Special Tools

Special tools and workshop equipment required

• Torque Wrench 1783 - 2-10Nm -VAG1783-
• Hot Air Blower -VAG1416-
• Adhesive Strip Remover -VAS6349-

• Torque Wrench 1783 - 2-10Nm -VAG1783-
• Hot Air Blower -VAG1416-
• Adhesive Strip Remover -VAS6349-
• Trim Removal Wedge -3409-
• Double Cartridge Gun -VAS5237-
• Bonded Window Tool Kit -VAG1351-

• Torque Wrench 1331 5-50Nm -VAG1331-

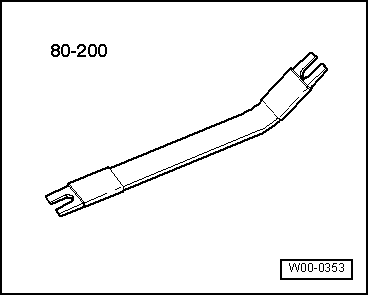

• Pry Lever -80-200-

Edition: K0059111121 - FU- 03/26/2015 - JY
