Volkswagen Tiguan Service and Repair Manual: Front Sunroof Glass Panel Tilt Mechanism and Cable, Removing and Installing
Removing
- Remove the front glass panel.
- Remove the rear glass panel.
- Remove the assembly frame from the vehicle.
- Remove sunroof motor.
- Remove the rear lid from the assembly frame.
Push the tilt mechanism to the rear after removing the rear lid.
Proceed as follows:
Caution
Before removing the control cables, note their position to avoid making
a mistake when re-installing.
The tilt mechanism may not be pulled or pushed on the guide rail.

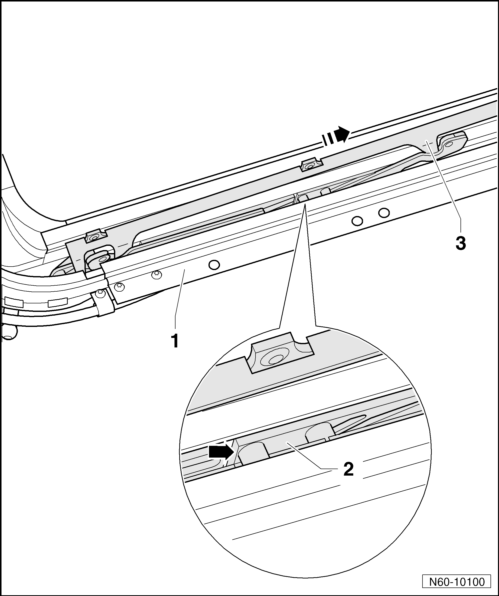

- Press the glass sunroof panel tilting mechanism only on those guiding
slot locations -arrow--2-, and not on the rails
-3-.
The tilt mechanism opens when pushed.

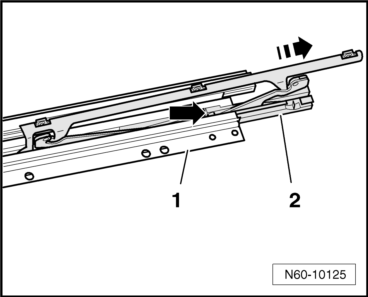

- Slide the tilt mechanism -2- on the guide
slots -arrow- to the rear using a suitable
screwdriver and off the guide rails -1- .

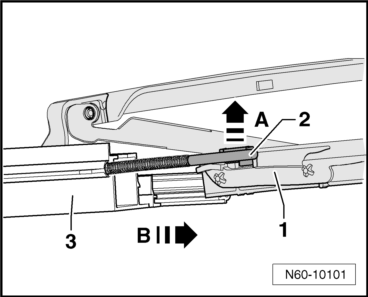

- Unclip the cable -2- from the guide slots
-1- in the direction of
-arrow A- .
- Remove the tilt mechanism -1- in direction
of -arrow B- out of the guide rails
-3-.
- Remove the cable -2- in direction of
-arrow B- out of the guide rails
-3-.
Installing
Note
- Clean the guide rails only if they are very dirty.
- Use a Cleaner -D 009 401 04- for this.
- Then lubricate the sliding areas of the guide rails with Grease - G
060 751 A2-.
- Do not lubricate the cables.
- Slide the tilt mechanism -3- into guide
rail -1-.
- Make sure the slider -2- points toward the
rear when sliding the it into the guide rails -1-
.

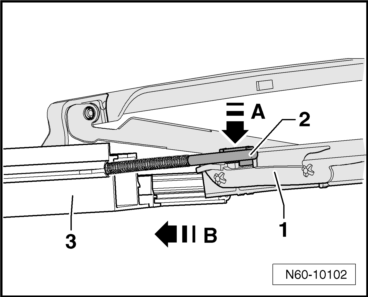

- Slide the cable -2- in direction of
-arrow B- into the guide rails
-3-.
- Insert the cable -2- in the direction of
-arrow A- into the guide slots
-1- .
Note
The tilt mechanism may not be pulled or pushed on the guide rail.

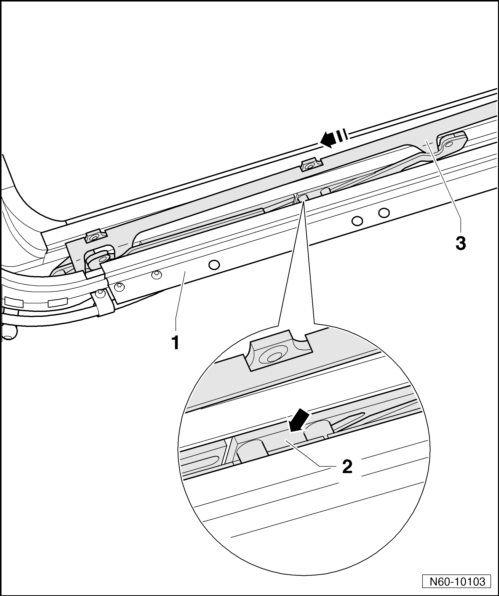

- Push the tilting mechanism on both sides all the way forward until it
has completely lowered.
- Press the tilting mechanism only on those guiding slot locations
-arrow--2-, and not on the rails
-3-.
- Install the rear lid on the assembly frame.
- Install the sunroof motor.
- Install the assembly frame on to the vehicle.
- Install the rear glass sunroof panel.
- Install the front glass sunroof panel.
- Perform a panorama sunroof motor adaptation after completing all work.
Maintenance and Care
As a rule, regular maintenance is not required for the panorama sun roof.
If it is necessary to clean because of heavy contamination, only use the
Cleaner -D 009 401 04-.
Then the sliding areas -3- in the guide rails
-2- must be re-lubricated with Grease - G 060 751
A2-.
The inner seal -1- and the outer seal
-4- have a lubricated coating and do not need to be
lubricated.
Do not lubricate the cables and the motor support.
Removing
Remove the assembly frame from the vehicle.
Remove the inner seal -2- from the assembly
frame -1-.
Remove the sun shade.
Loosen the wiring harness from the rear lid.
Remove the ...
Glass Panel
Note
If there is a malfunction in the electrical system, the front sunroof
glass panel can be moved manually using a commercially available hex wrench.
Manually move the front glass p ...
