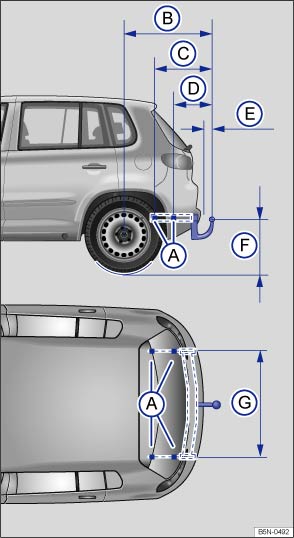

Fig. 108 Dimensions and attachment points for retrofitting a trailer hitch.
Volkswagen recommends having the trailer hitch retrofit performed by a qualified workshop because cooling system modifications or the installation of heat shields may be necessary. Volkswagen recommends that you see an authorized Volkswagen dealer or an authorized Volkswagen Service Facility before having a hitch installed on your vehicle.
When retrofitting a trailer hitch, the specified distance dimensions must be strictly adhered to. Under no circumstances may the distance from the center of the hitch ball to the surface of the road ⇒ Fig. 108Ⓕ be less than the specified minimum. This minimum height must be present even when the vehicle is fully loaded and subject to the maximum tongue weight.
Distance dimensions⇒ Fig. 108 :
Warning
Warning
Volkswagen Tiguan Service and Repair Manual > Wheel and Tire Guide General Information: Rim Information
Overview - Rim
Rim Flange
Stop for the side tire bead
Hump (H2) on Both Bead Seats
Prevents the tire from slipping off the bead seat when driving
around tight curves
An extended hump (EH2) is required when using run-flat tires.
Bed
Makes it easier to mount the tire
Ri ...
